SGM7SZ245.pdf• Wide Operating Voltage Range: 1.8V to 5.0V
• High-Current 3-State Outputs Drive Bus Lines
Directly or Up to 15 LSTTL Loads
• Low Power Consumption, ICC: 13μA (MAX)
• Typical tPD = 8.9ns at 5.0V
• ±20mA Output Drive at 5.0V
• Low Input Current: ±8μA (MAX)
• Available in Green TSSOP-20,
TQFN-5.5×3.5-24Land TQFN-3×3-20L Packages

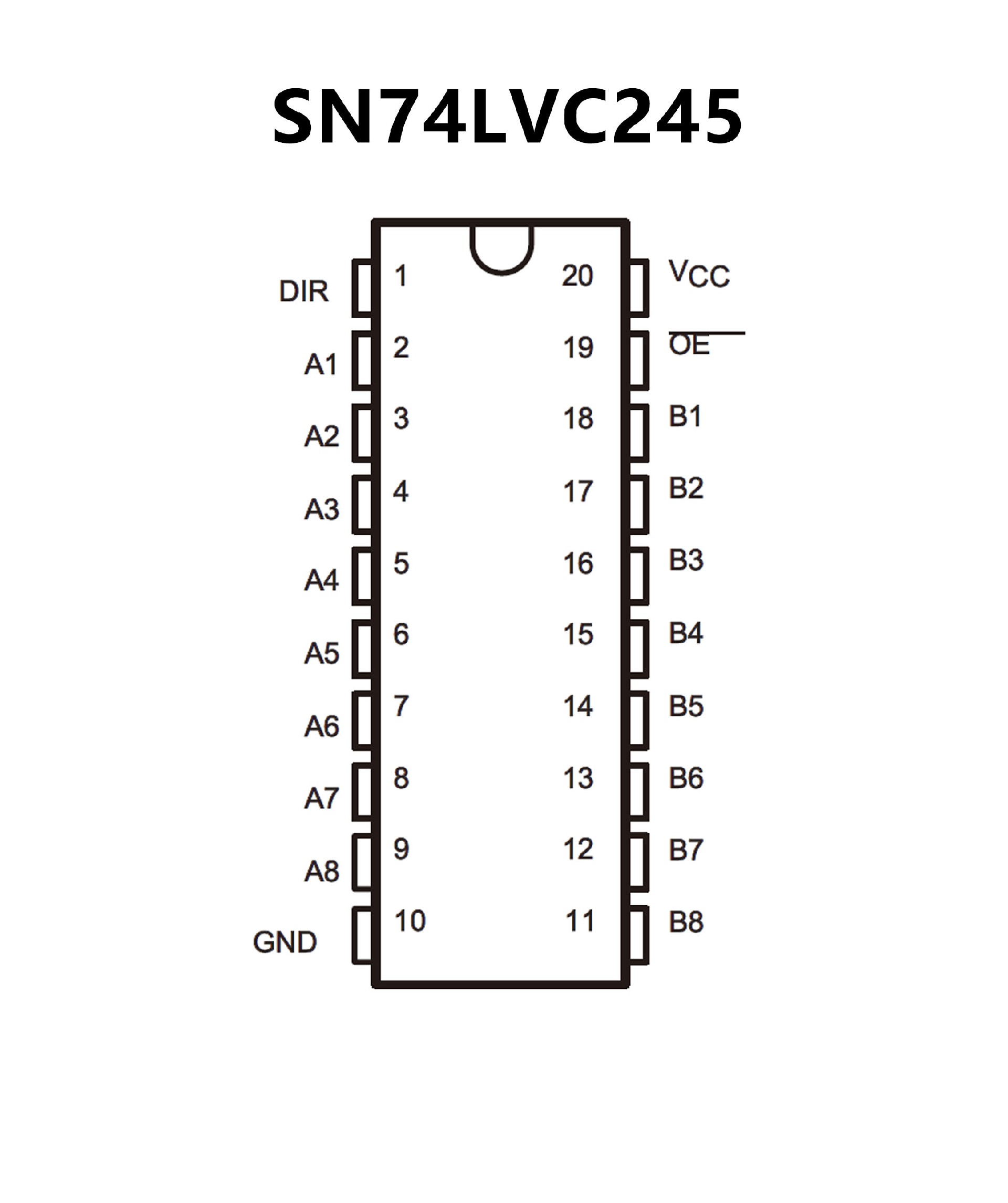

• Operates From 1.65 V to 3.6 V
• Inputs Accept Voltages to 5.5 V
• Max tpd of 6.3 ns at 3.3 V
• Typical VOLP (Output Ground Bounce)
< 0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV (Output VOH Undershoot)
> 2 V at VCC = 3.3 V, TA = 25°C
• Ioff Supports Live Insertion, Partial-Power-Down
Mode and Back Drive protection
• Supports Mixed-Mode Signal Operation on All
Ports (5-V Input/Output Voltage With 3.3-V VCC)
• Latch-Up Performance Exceeds 250 mA Per JESD 17
• ESD Protection Exceeds JESD 22
2000-V Human-Body Model
1000-V Charged-Device Model
