Octal Bus Transceiver with 3-State Outputs, 7SZ245XTQG20G/TR Replace 74HC245PW.
SGM7SZ245
SGM7SZ245.pdf
SGM7SZ245.pdfFEATURES
• Wide Operating Voltage Range: 1.8V to 5.0V
• High-Current 3-State Outputs Drive Bus Lines
Directly or Up to 15 LSTTL Loads
• Low Power Consumption, ICC: 0.1μA (TYP)
• Typical tPD = 12ns
• ±20mA Output Drive at 5V
• Low Input Current: ±0.1nA (TYP)
• Available in Green TSSOP-20, TQFN-5.5×3.5-24L
and TQFN-3×3-20L Packages

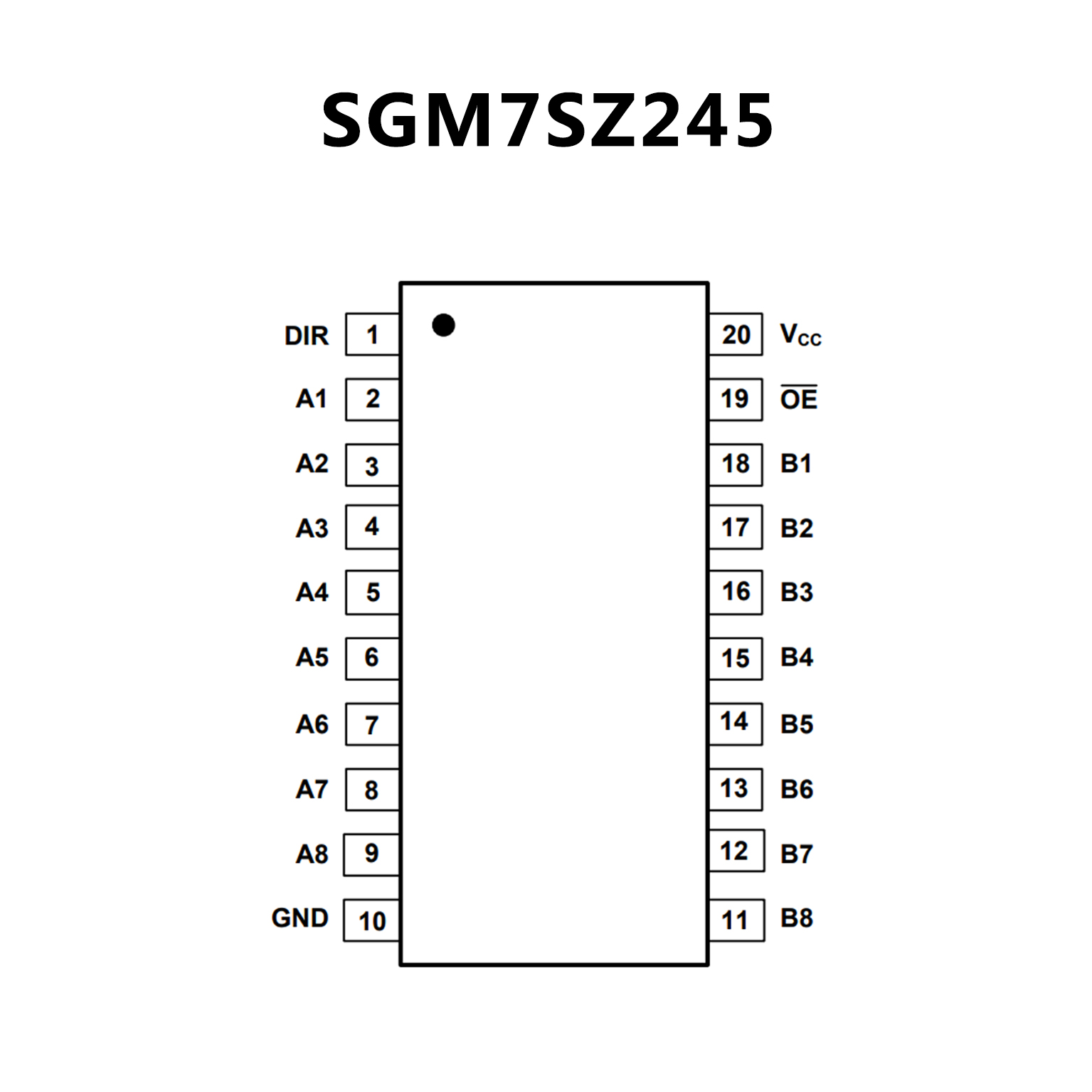

PIN CONFIGUTION
优势替代
FEATURES
• Complies with JEDEC standard JESD7A
• Input levels:
For 74HC245: CMOS level
For 74HCT245: TTL level
• Octal bidirectional bus interface
• Non-inverting 3-state outputs
• ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
• Multiple package options
• Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃

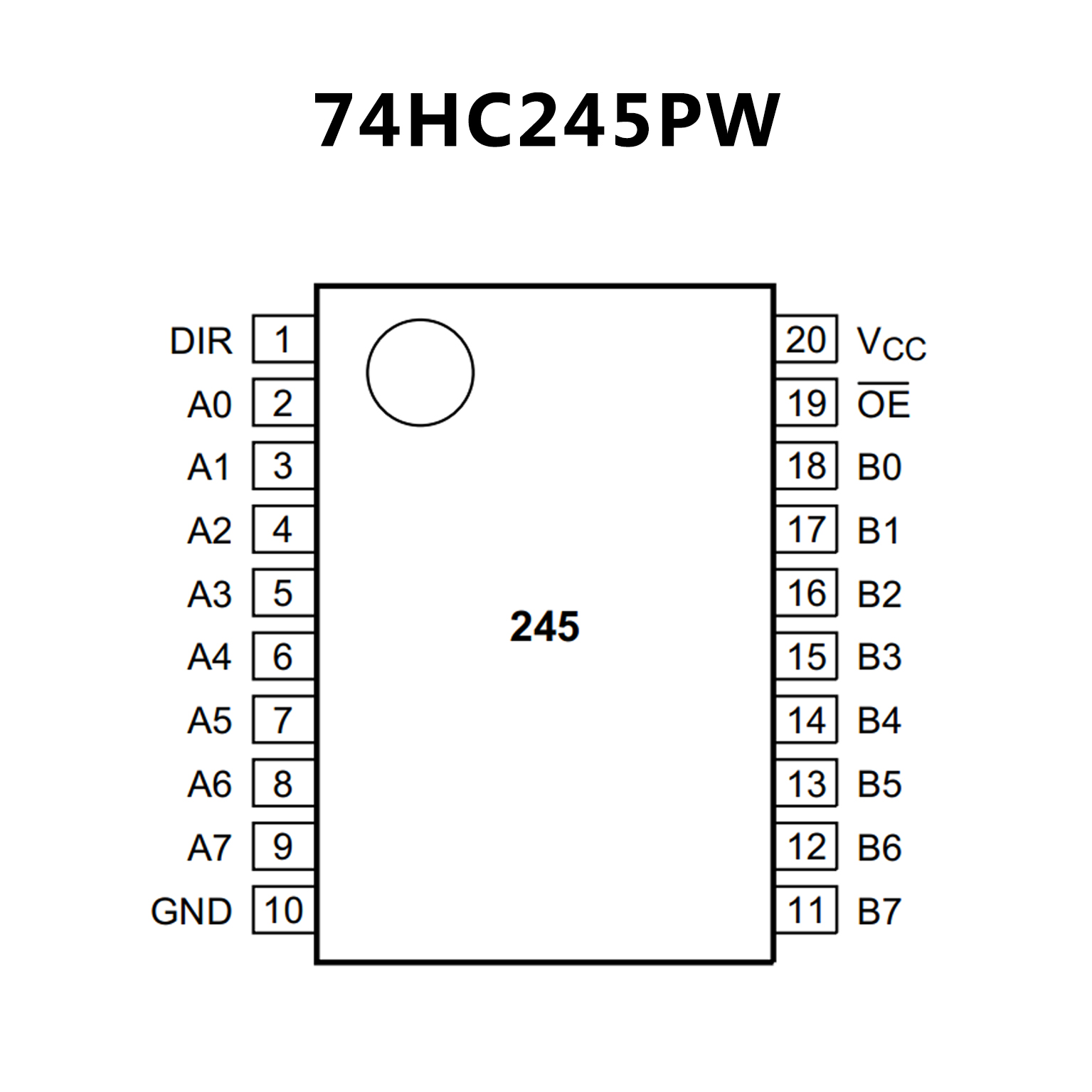

PIN CONFIGUTION
