Small Logic Two-Input OR Gate,SGM7SZ32 Replace SN74AHC1G32.
SGM7SZ32
SGM7SZ32.pdf
SGM7SZ32.pdfFEATURES
• Ultra-High Speed: tPD = 3.8ns (TYP) into 50pF
at VCC = 3.3V
• High Output Drive: ±24mA at VCC = 3V
• Broad VCC Operating Range: 1.65V to 5.5V
• Matches Performance of LCX Operated at VCC = 3.3V
• Power Down High-Impedance Inputs/Output
• Over-Voltage Tolerance Inputs Facilitate 5V to 3V
Translation
• Available in Green SOT-23-5 and SC70-5 Packages

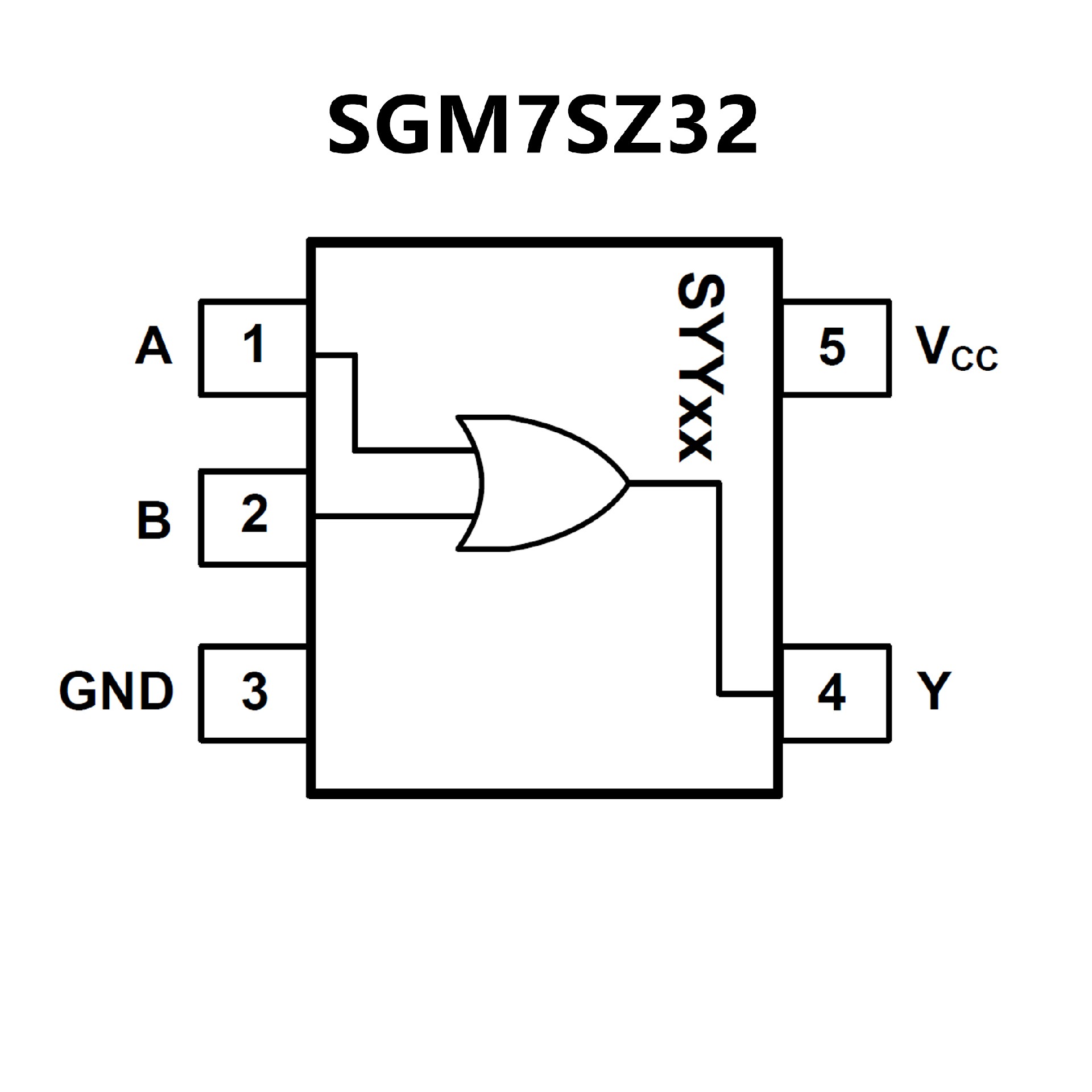

PIN CONFIGUTION
优势替代
FEATURES
• Operating Range of 2 V to 5.5 V
• Max tpd of 6.5 ns at 5 V
• Low Power Consumption, 10-μA Max ICC
• ±8-mA Output Drive at 5 V
• Schmitt-Trigger Action at All Inputs Makes the
Circuit Tolerant for Slower Input Rise and Fall
Time
• Latch-Up Performance Exceeds 250 mA Per
JESD 17

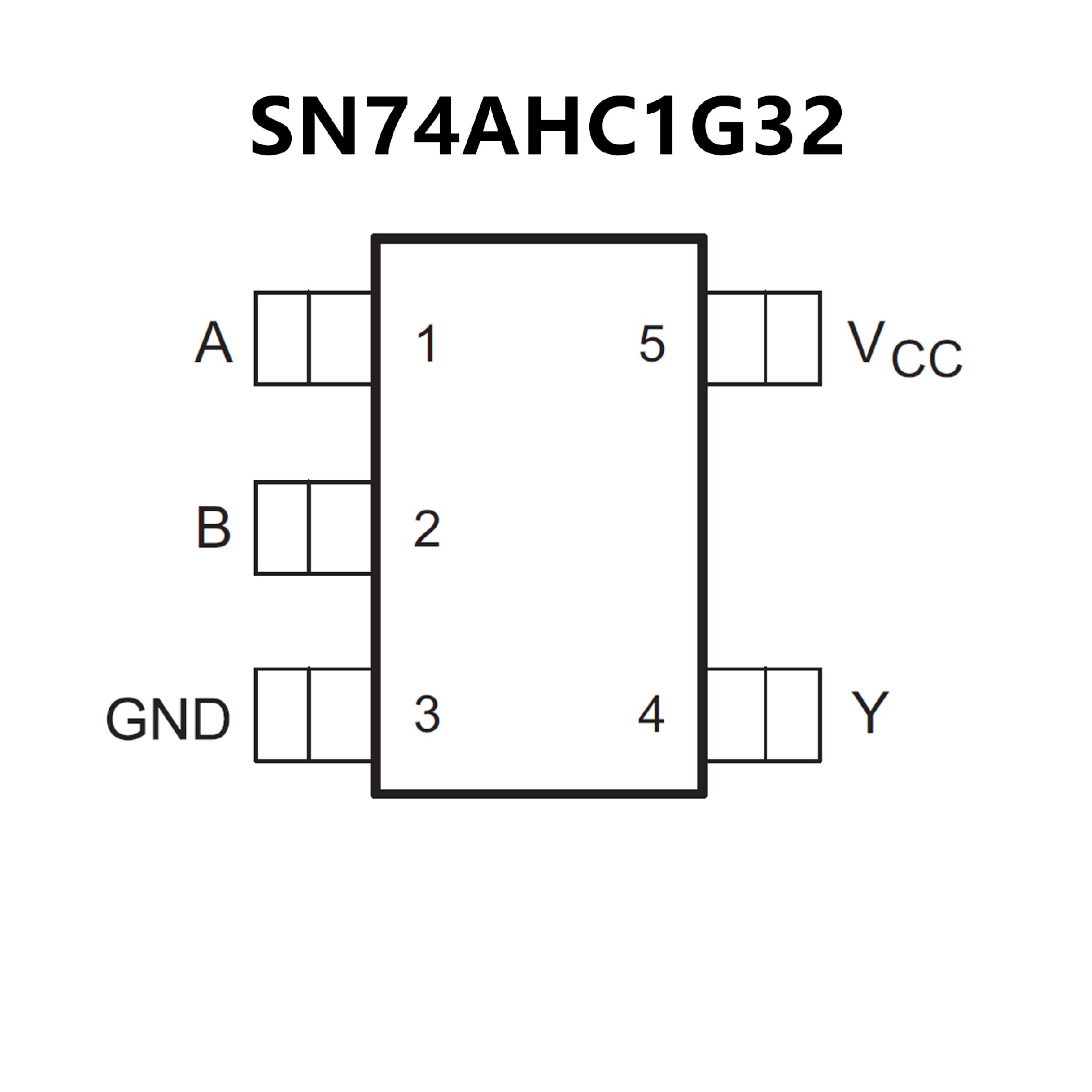

PIN CONFIGUTION
