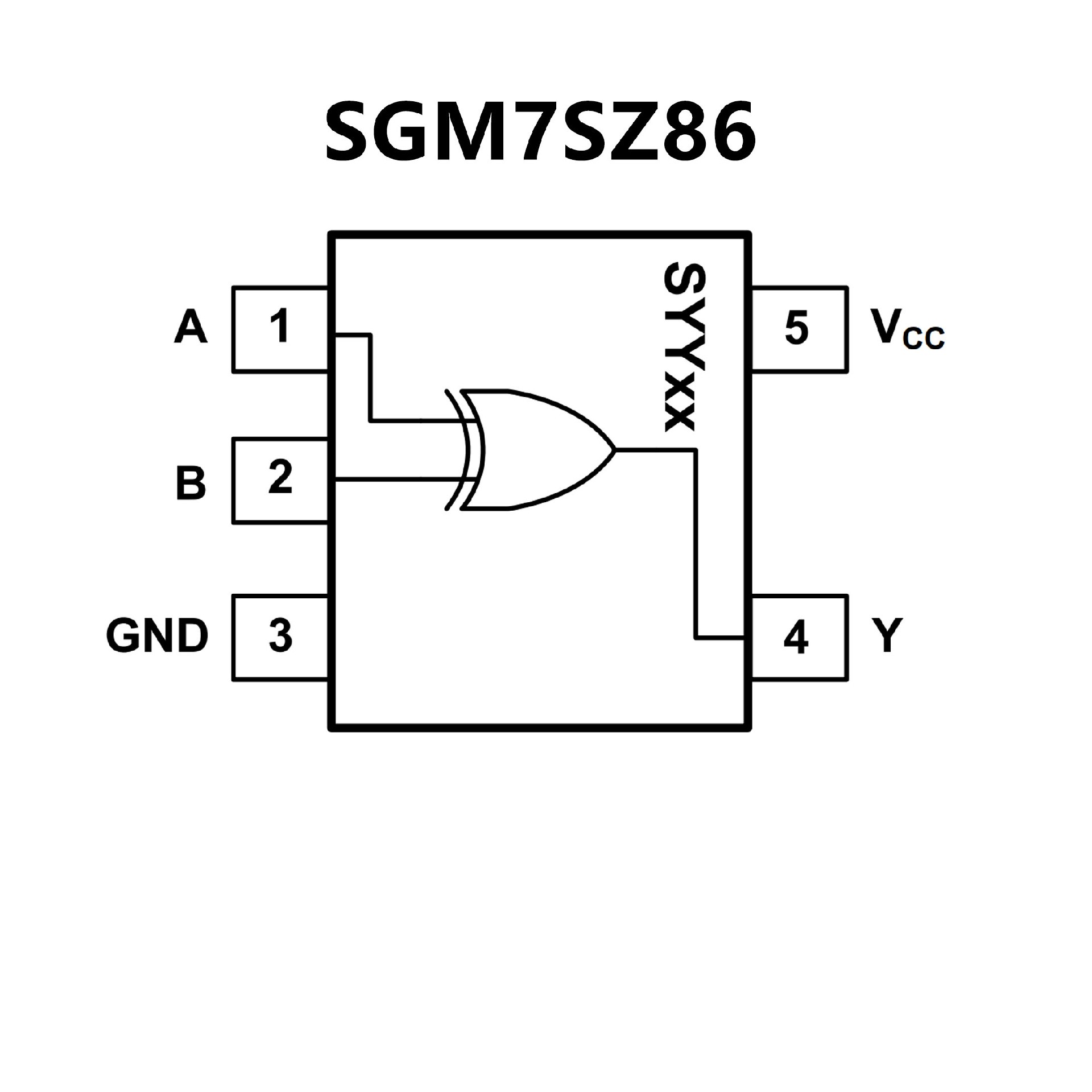

SGM7SZ86.pdf• Ultra-High Speed: tPD = 4.2ns (TYP) into 50pF
at VCC = 3.3V
• High Output Drive: ±24mA at VCC = 3V
• Broad VCC Operating Range: 1.65V to 5.5V
• Matches Performance of LCX Operated at VCC = 3.3V
• Power Down High-Impedance Inputs/Output
• Over-Voltage Tolerance Inputs Facilitate 5V to 3V
Translation
• Available in Green SOT-23-5 and SC70-5 Packages

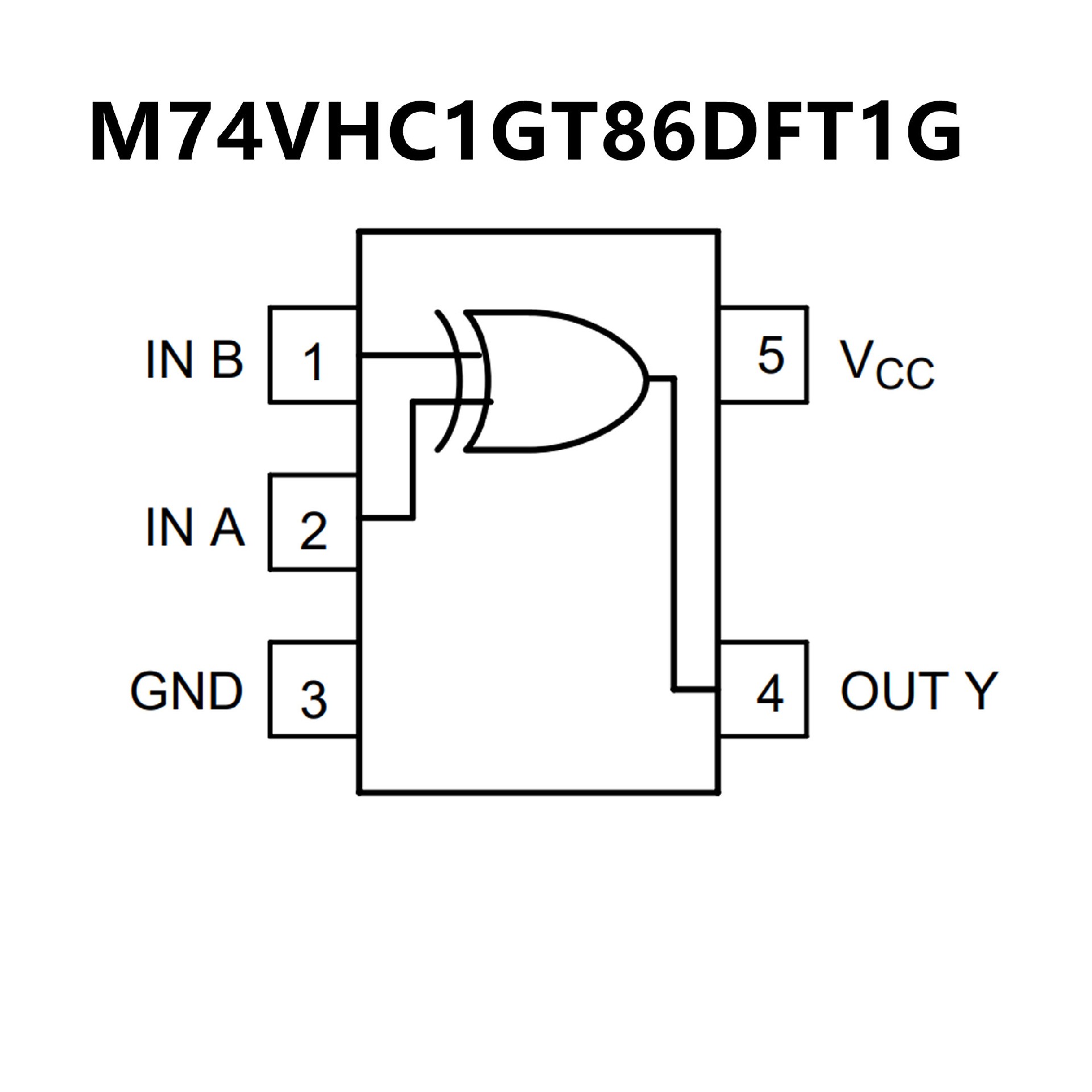

• High Speed: tPD = 4.8 ns (Typ) at VCC = 5 V
• Low Power Dissipation: ICC = 1µA (Max) at TA = 25°C
• TTL−Compatible Inputs: VIL = 0.8 V; VIH = 2 V
• CMOS−Compatible Outputs:
VOH > 0.8 VCC; VOL < 0.1 VCC @Load
• Power Down Protection Provided
on Inputs and Outputs
• Balanced Propagation Delays
• Pin and Function Compatible with
Other Standard Logic Families
• Chip Complexity:
FETs = 83; Equivalent Gates = 16
• Pb−Free Packages are Available
