Small Logic Two-Input Exclusive-OR Gate,SGM7SZ86YC5GTR Replace NC7S86.
SGM7SZ86
SGM7SZ86.pdf
SGM7SZ86.pdfFEATURES
• Ultra-High Speed: tPD = 4.2ns (TYP)
into 50pFat VCC = 3.3V
• High Output Drive: ±24mA at VCC = 3V
• Broad VCC Operating Range: 1.65V to 5.5V
• Matches Performance of LCX
Operated atVCC = 3.3V
• Power Down High-Impedance Inputs/Output
• Over-Voltage Tolerant Inputs
Facilitate 5V to 3VTranslation
• Available in Green SOT-23-5
and SC70-5 Packages

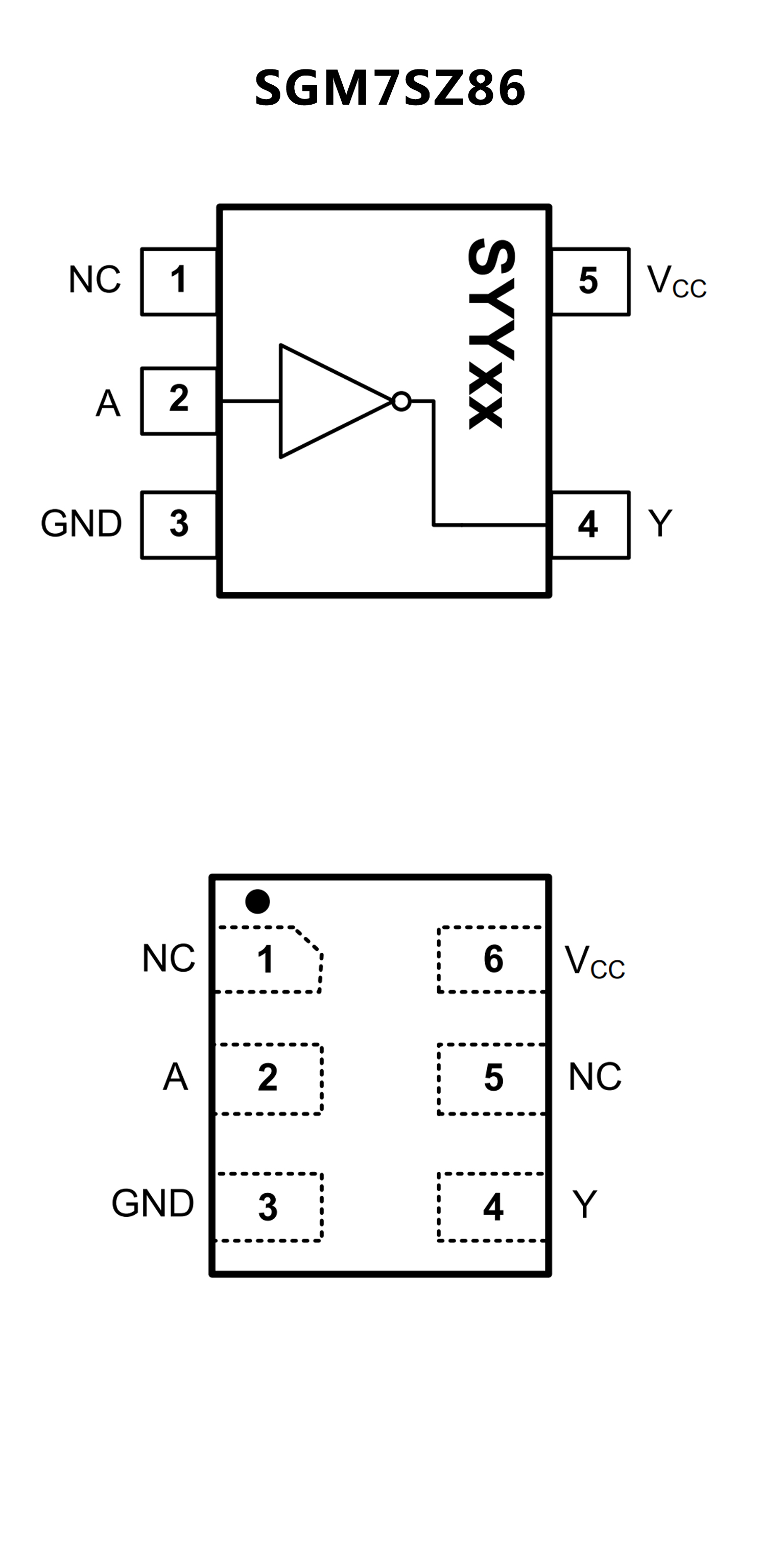

PIN CONFIGUTION
优势替代
FEATURES
• Space Saving SC−74A and SC−88A 5−Lead Package
• Ultra Small MicroPak™ Leadless Package
• High Speed: tPD = 4.5 ns Typ
• Low Quiescent Power: ICC < 1 µA
• Balanced Output Drive: 2 mA IOL, −2 mA IOH
• Broad VCC Operating Range: 2 V – 6 V
• Balanced Propagation Delays
• Specified for 3 V Operation
• These Devices are Pb−Free, Halogen Free/BFR
Free and are RoHSCom pliant

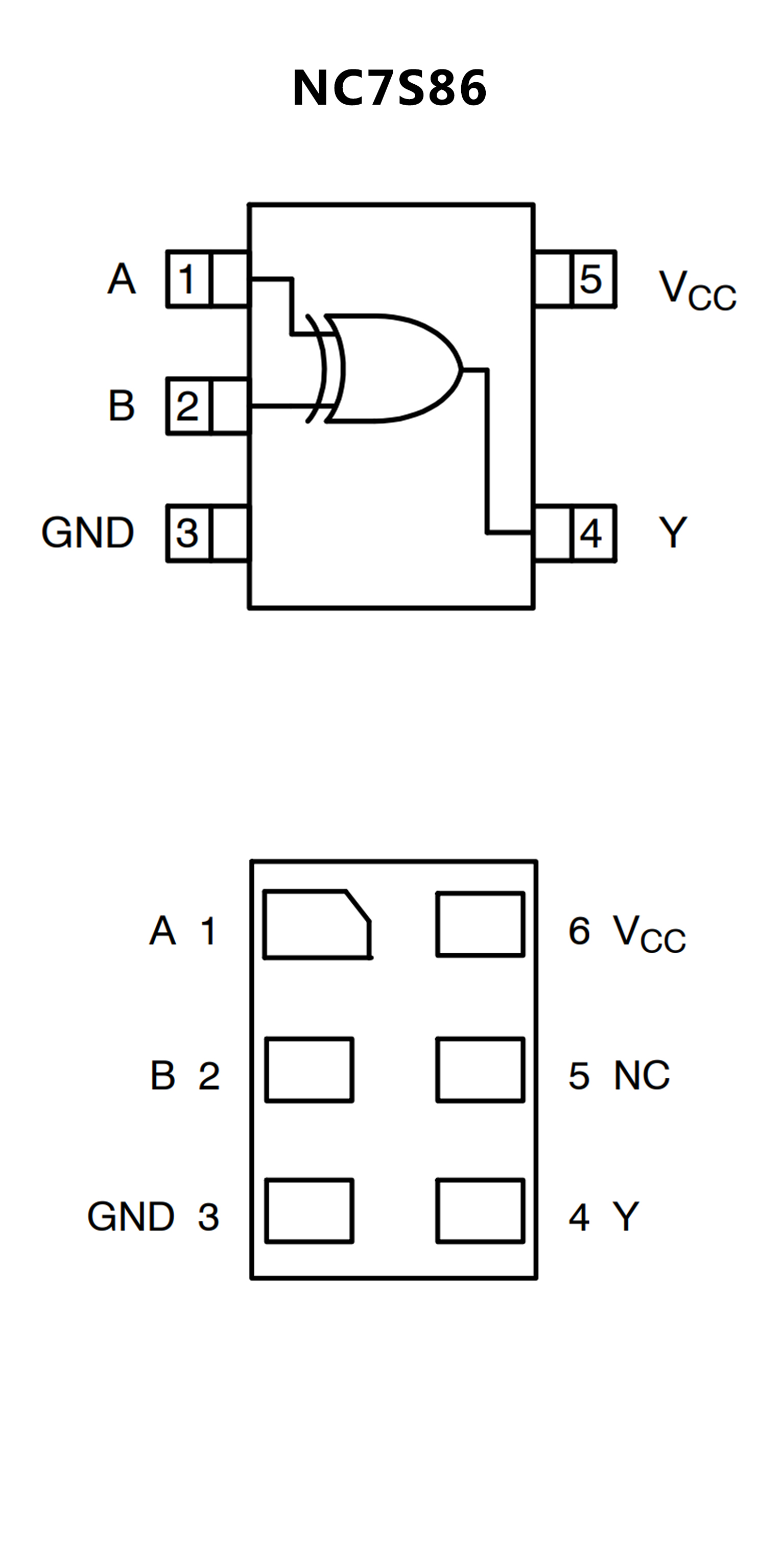

PIN CONFIGUTION
