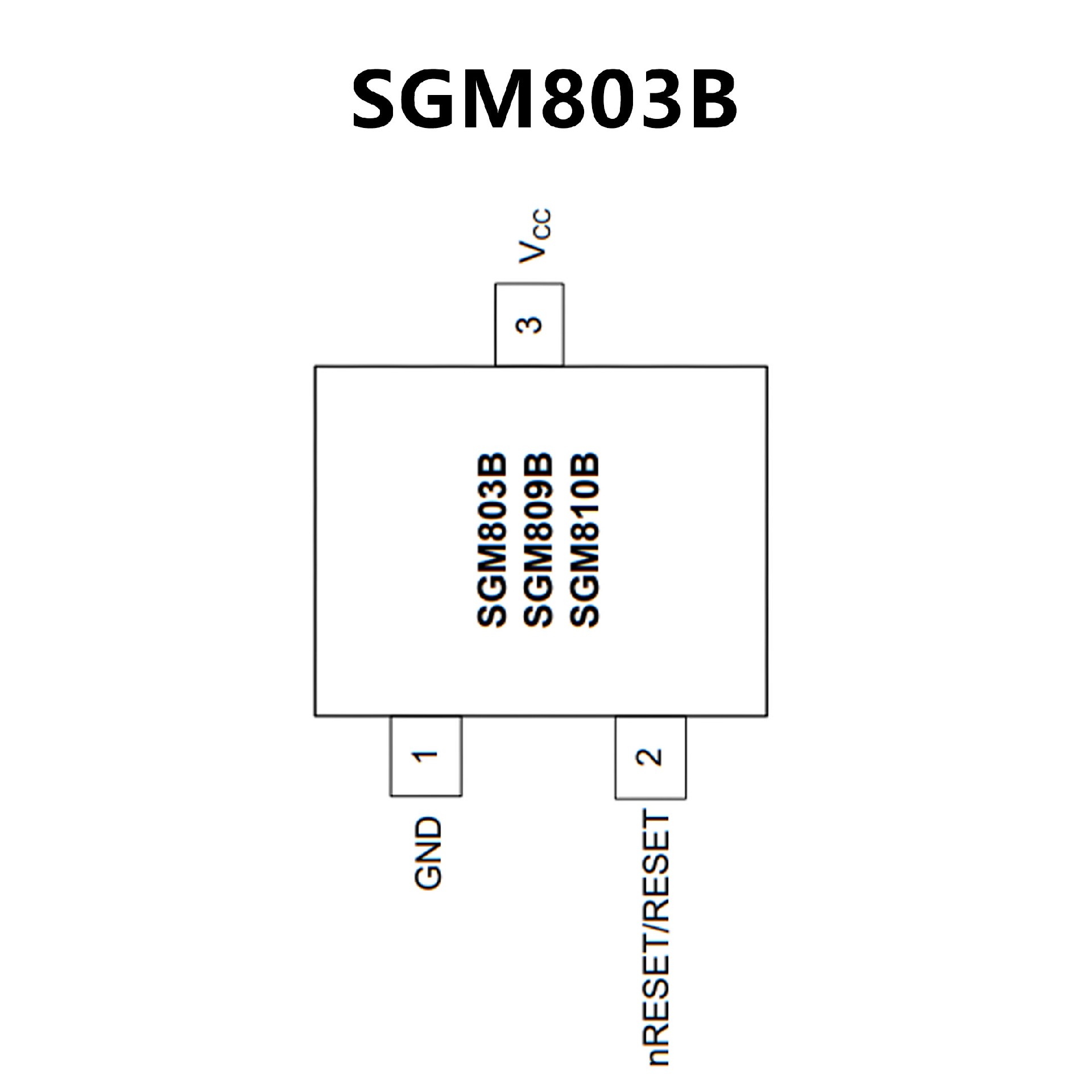

SGM803B.pdf• Precision Voltage Monitor: 3V, 3.3V and 5V Options
• Superior Upgrade for MAX803/MAX809/MAX810
and ADM803/ADM809/ADM810
• Fully Specified over Temperature
• VCC Transient Immunity
• Low Power Consumption: 300nA (TYP)
• Reset Assertion Down to 1V VCC
• 150ms Power-On Reset (MIN)Open-Drain nRESET
Output (SGM803B)Push-Pull nRESET Output
(SGM809B)Push-Pull RESET Output (SGM810B)
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging
SGM803B Available in SOT-23-3 and SOT-23
SGM809B Available in SOT-23-3 and SOT-23
SGM810B Available in SOT-23-3 and SOT-23

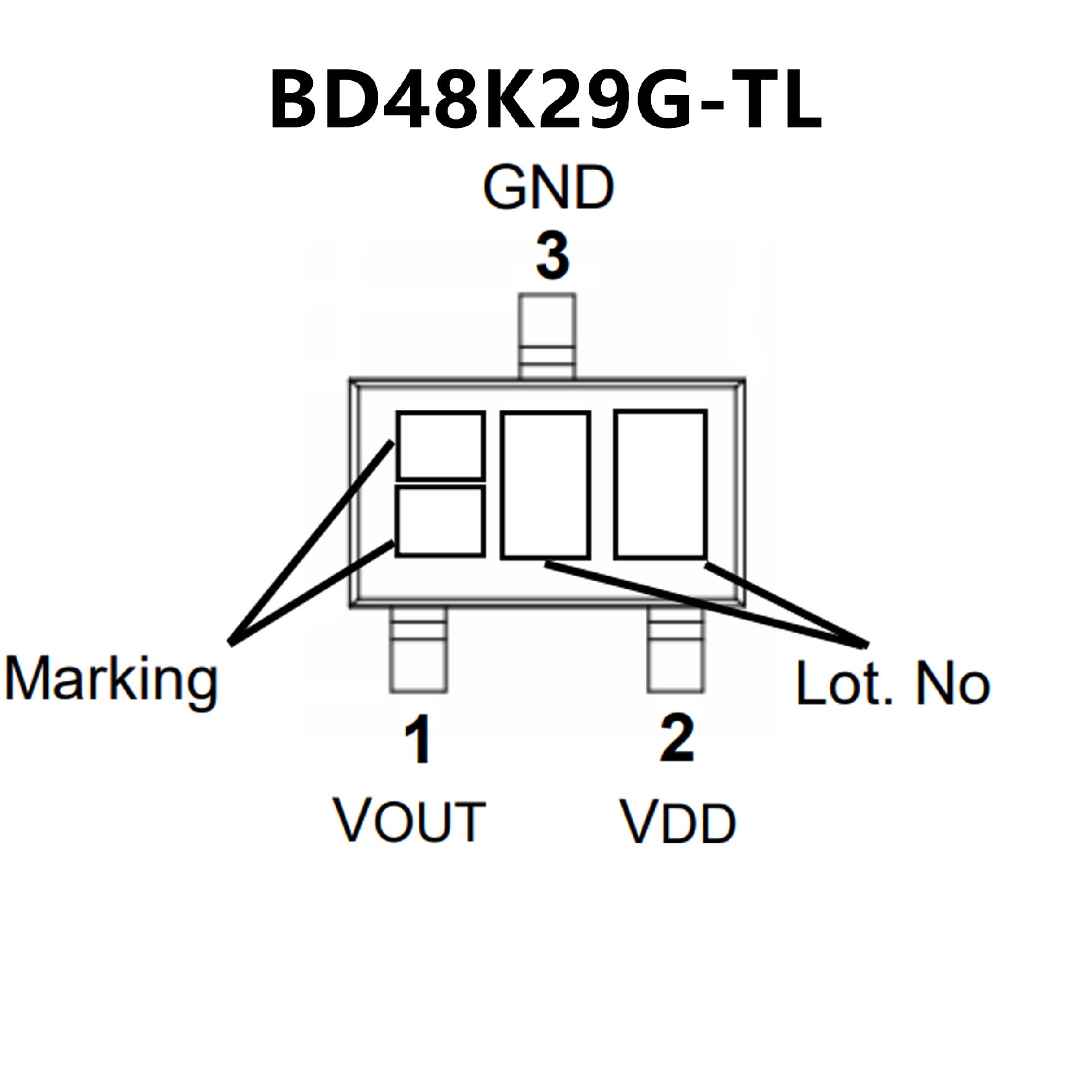

• High accuracy detection
• Ultra-low current consumption
• Two output types
(Nch open drain and CMOS output)
• Wide Operating temperature range
• Very small and low height package
• Package SSOP5 is similar to SOT-23-5 (JEDEC)
• Package SSOP3 is similar to SOT-23-3 (JEDEC)
