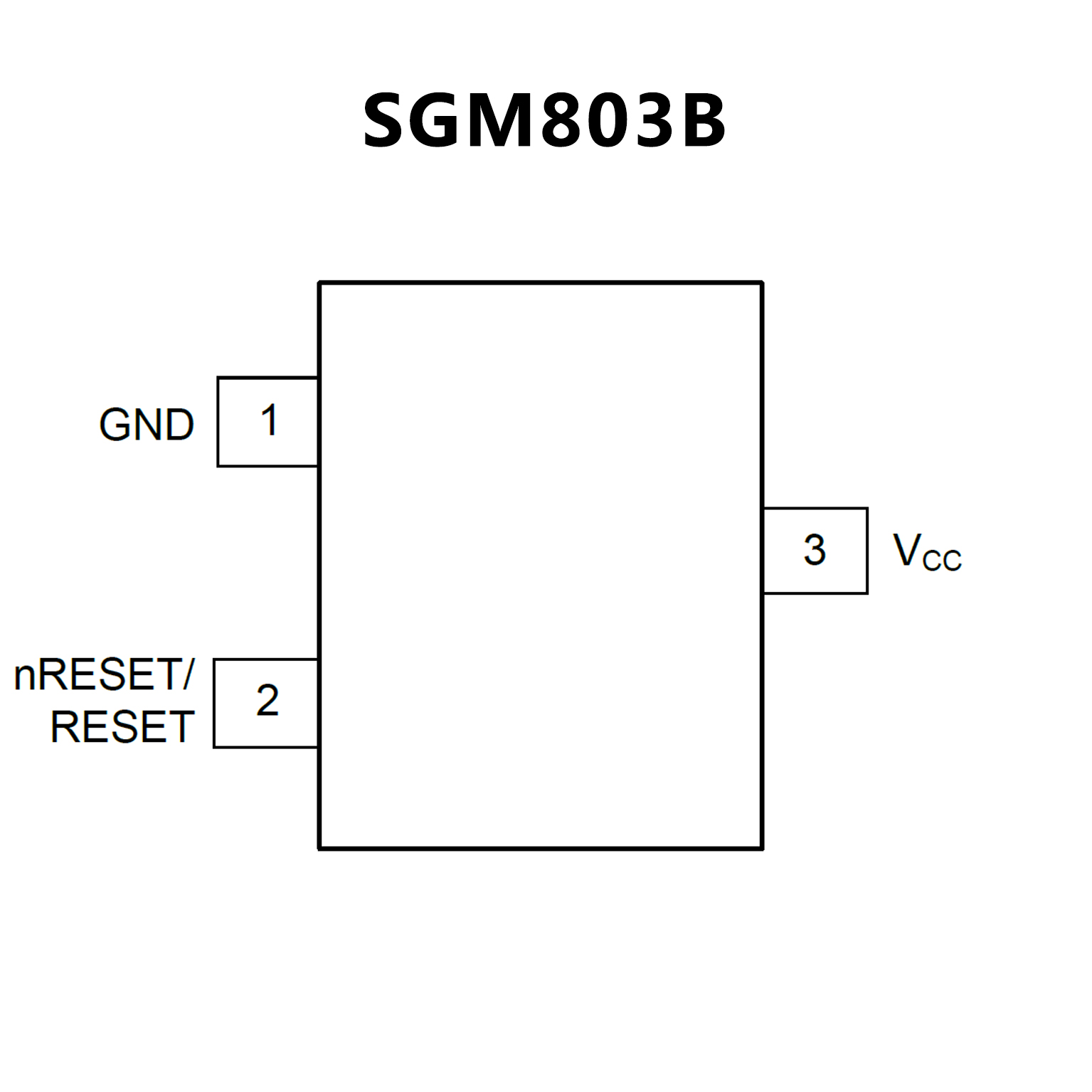

SGM803B.pdf• Superior Upgrade for MAX803/MAX809/MAX810 and ADM803/ADM809/ADM810
• High Accuracy Fixed Detection Options: 3V, 3.3V and 5V
• Low Supply Current: 300nA (TYP)
• 150ms (MIN) Power-on Reset Pulse Width
• Reset Output Options:
Open-Drain nRESET Output (SGM803B)
Push-Pull nRESET Output (SGM809B)
Push-Pull RESET Output (SGM810B)
• Reset Valid Down to VCC = 1V
• Fully Specified over Temperature
• VCC Transient Immunity
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOT-23-3 and SOT-23 Packages
• Internally Fixed Threshold 1.2V to 5V in 0.1V Step
• High Accuracy ±1.5%
• Low Supply Current 3μA
• No External Components Required
• Quick Reset within 20μs
• Built-In Recovery Delay Include 0ms, 55ms, 220ms,
450ms Options
• Low Functional Supply Voltage 0.9V
• N-Channel Open-Drain Output
• Small SC-82, SC-70-3, SOT-23-3, SOT-23-5, SOT-89
Packages
• RoHS Compliant and 100% Lead (Pb)-Free
