Low-Power, SOT µP Reset Circuit with Capacitor-Adjustable Reset Timeout Delay, Replace RN5VD
SGM804
SGM804.pdf
SGM804.pdfFEATURES
• Monitor System Voltages from 1.6V to 5V
• Capacitor-Adjustable Reset Timeout Period
• Low Quiescent Current (3.3μA TYP)
• Push-Pull RESET Output
• Guaranteed RESET Valid to VCC = 1V
• Immune to Short VCC Transients
• Available in Green SOT-23-5 Package
• SGM804 Pin Compatible with NCP300–NCP303,
MC33464/MC33465,S807/S808/S809, RN5VD ,
MAX6424 and MAX6425

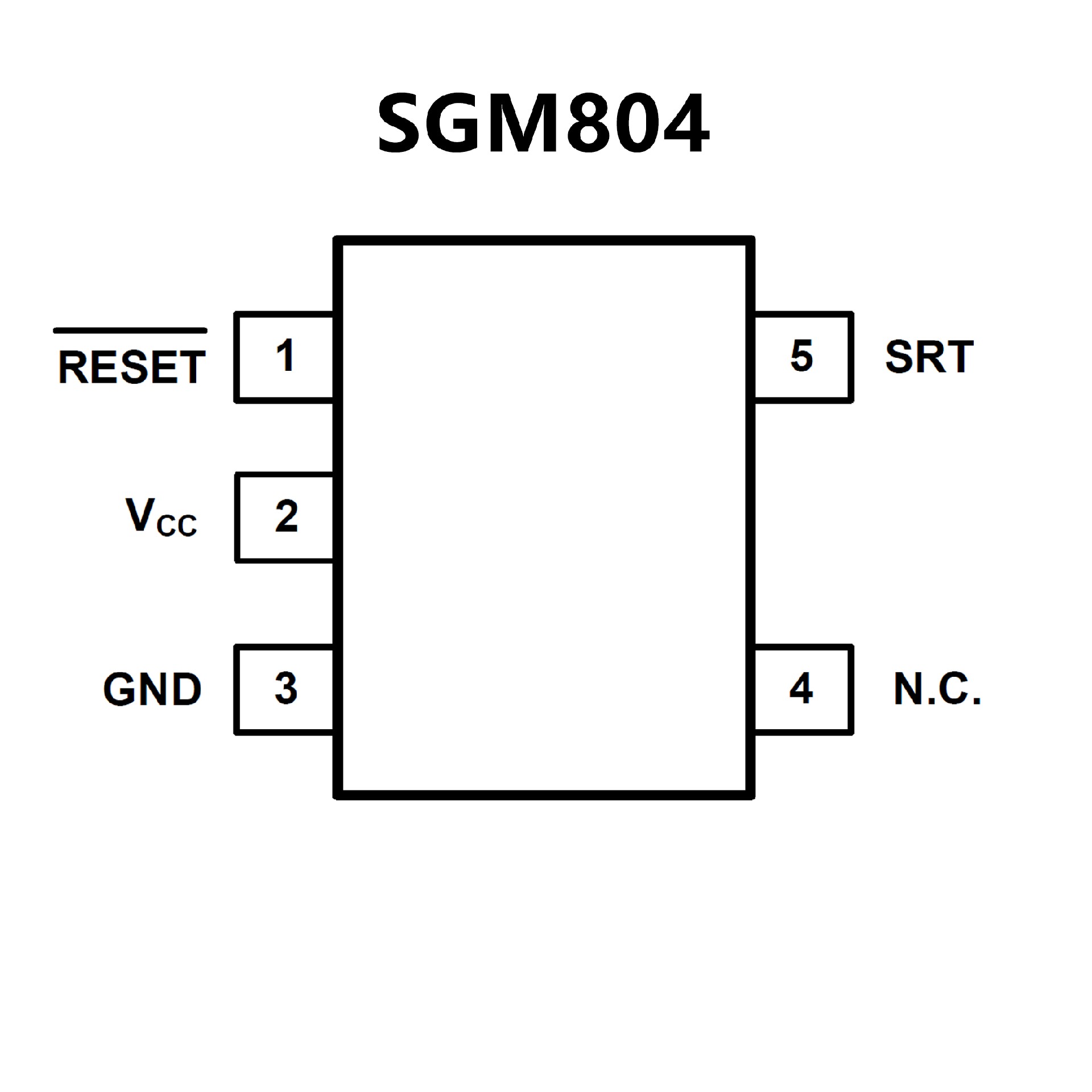

PIN CONFIGUTION
优势替代
FEATURES
• Built-in Output Delay Circuit Typ. 100ms with an external
capacitor : 0.15μF
• Supply Current Typ. 1.0μA (RN5VD15x, VDD=3.5V)
• Operating Voltage Range 0.7 to 10.0V (Topt=25°C)
• Detector Threshold Range 0.9V to 6.0V (0.1V steps)
• Detector Threshold Accuracy ±2.5%
• Temperature-Drift Coefficient of Detector Threshold Typ.
±100ppm/°C
• Output Types Nch Open Drain and CMOS
• Package SOT-23-5

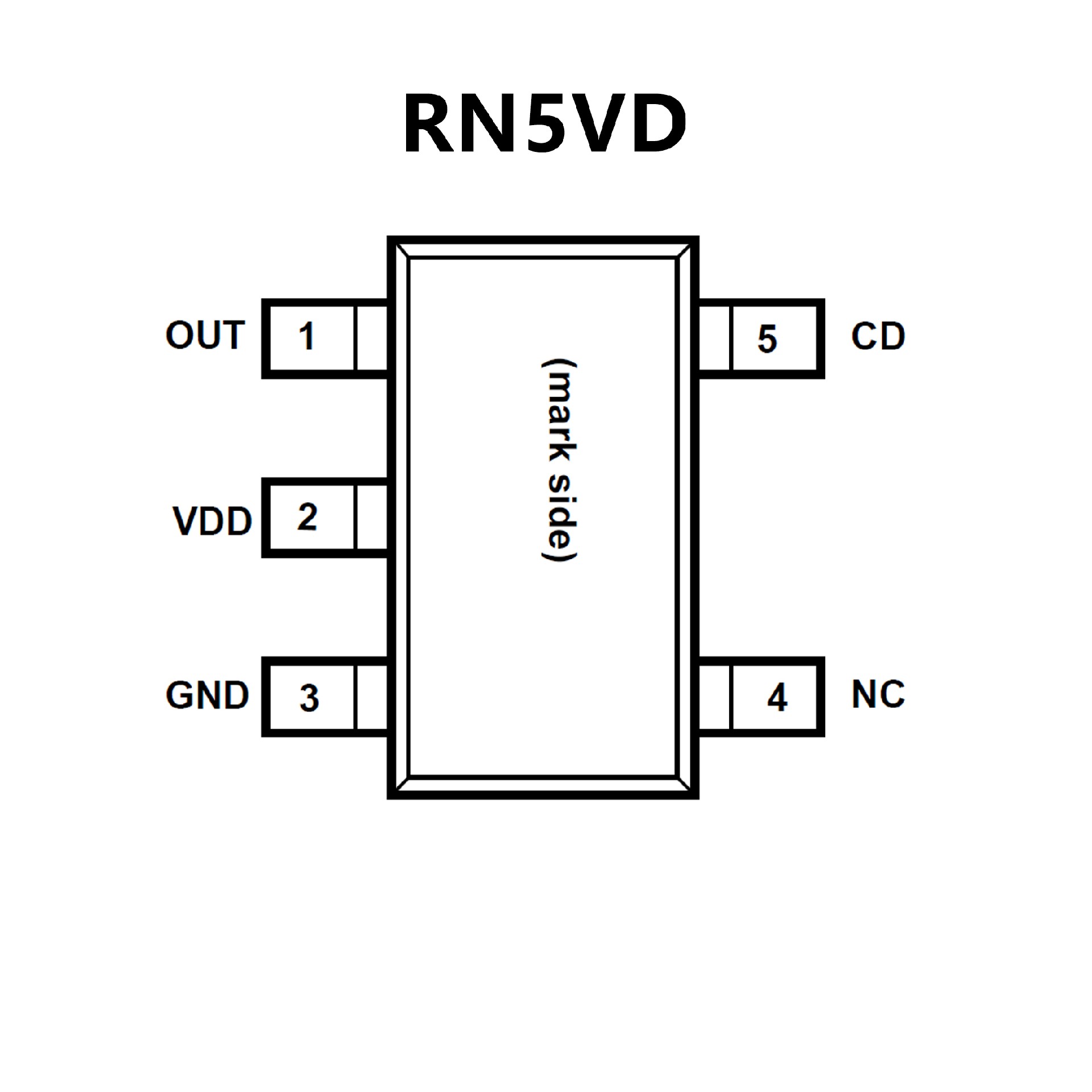

PIN CONFIGUTION
