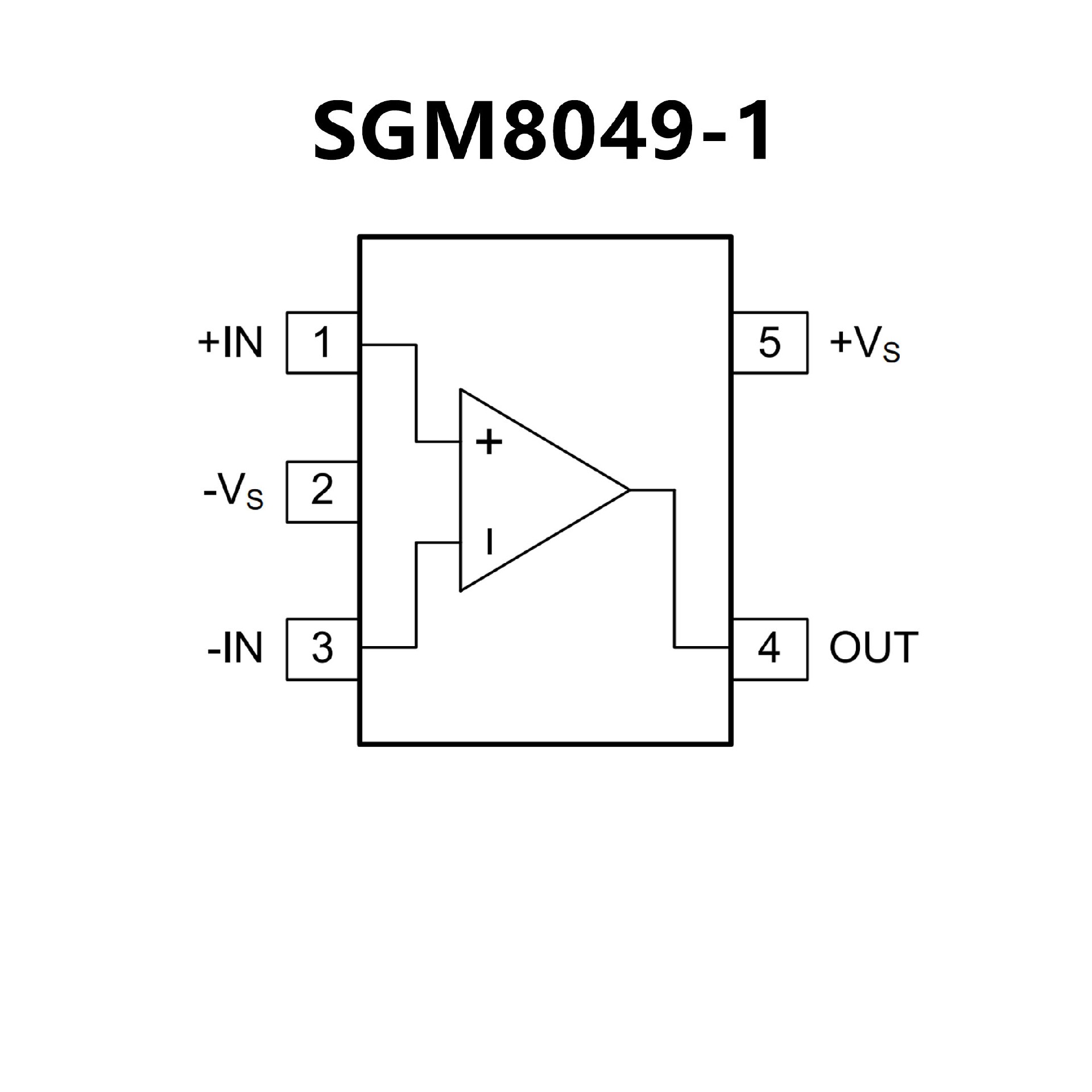

SGM8049-1BXC5G.pdf• Low Noise: 3.5μVPP (0.1Hz to 10Hz)
• Wide Supply Voltage Range: 1.8V to 5.5V
• Low Quiescent Current: 2.5μA/Amplifier (TYP)
• Low Offset Voltage: 0.85mV (MAX)
• DC Precision:
CMRR: 100dB
PSRR: 2.5μV/V
AOL: 118dB
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8049-1 Available in Green SC70-5, SOT-23-5
and TDFN-2×2-6L Packages
SGM8049-2 Available in Green SOT-23-8 and
SOIC-8 Packages
SGM8049-4 Available in a Green TSSOP-14 Package
• Unmatched Price Performance

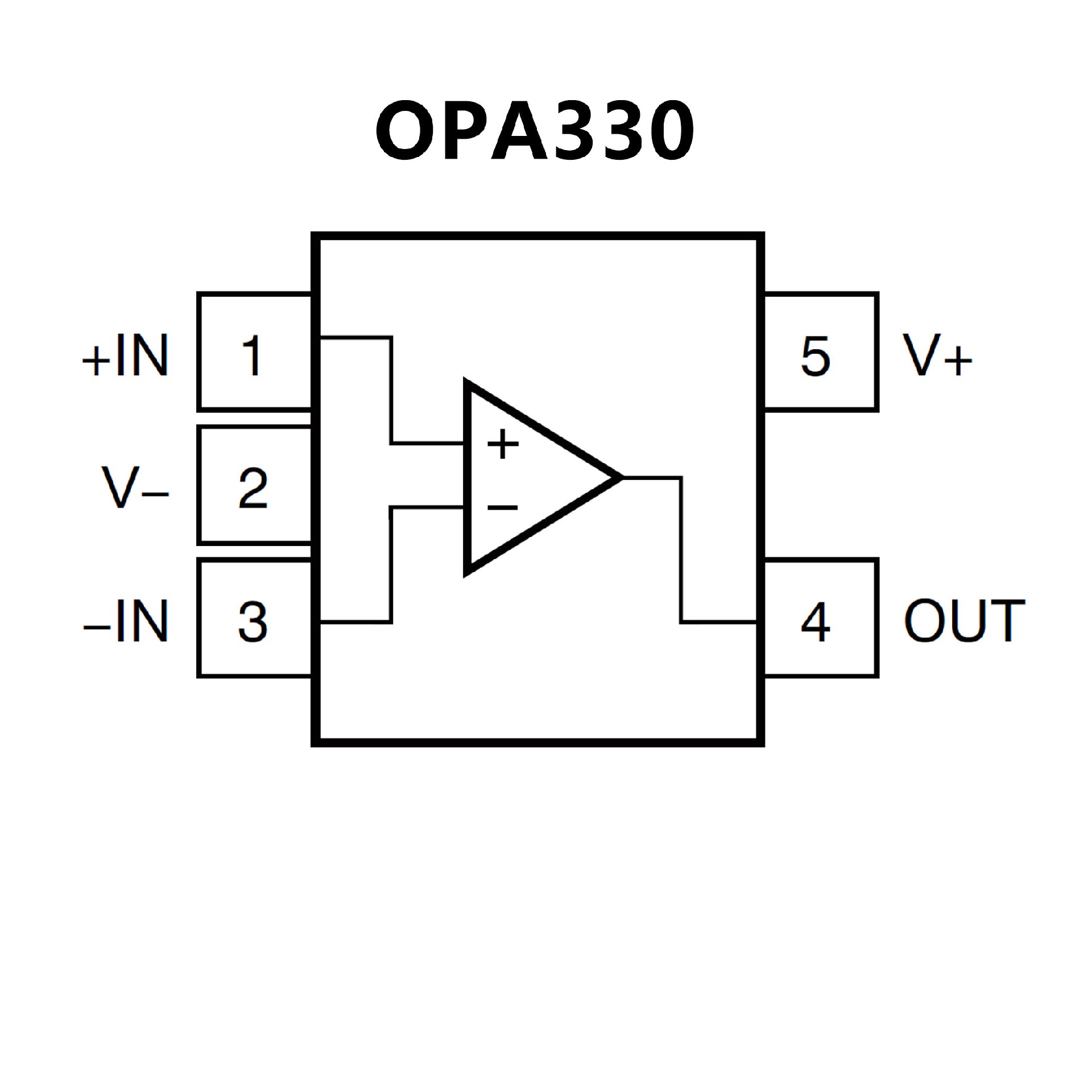

• Low Offset Voltage: 50 μV (Maximum)
• Zero Drift: 0.25 μV/°C (Maximum)
• Low Noise: 1.1 μVPP, 0.1 Hz to 10 Hz
• Quiescent Current: 35 μA (Maximum)
• Supply Voltage: 1.8 V to 5.5 V
• Rail-to-Rail Input and Output
• Internal EMI Filtering
• microSize Packages: DSBGA, SC70, VQFN
