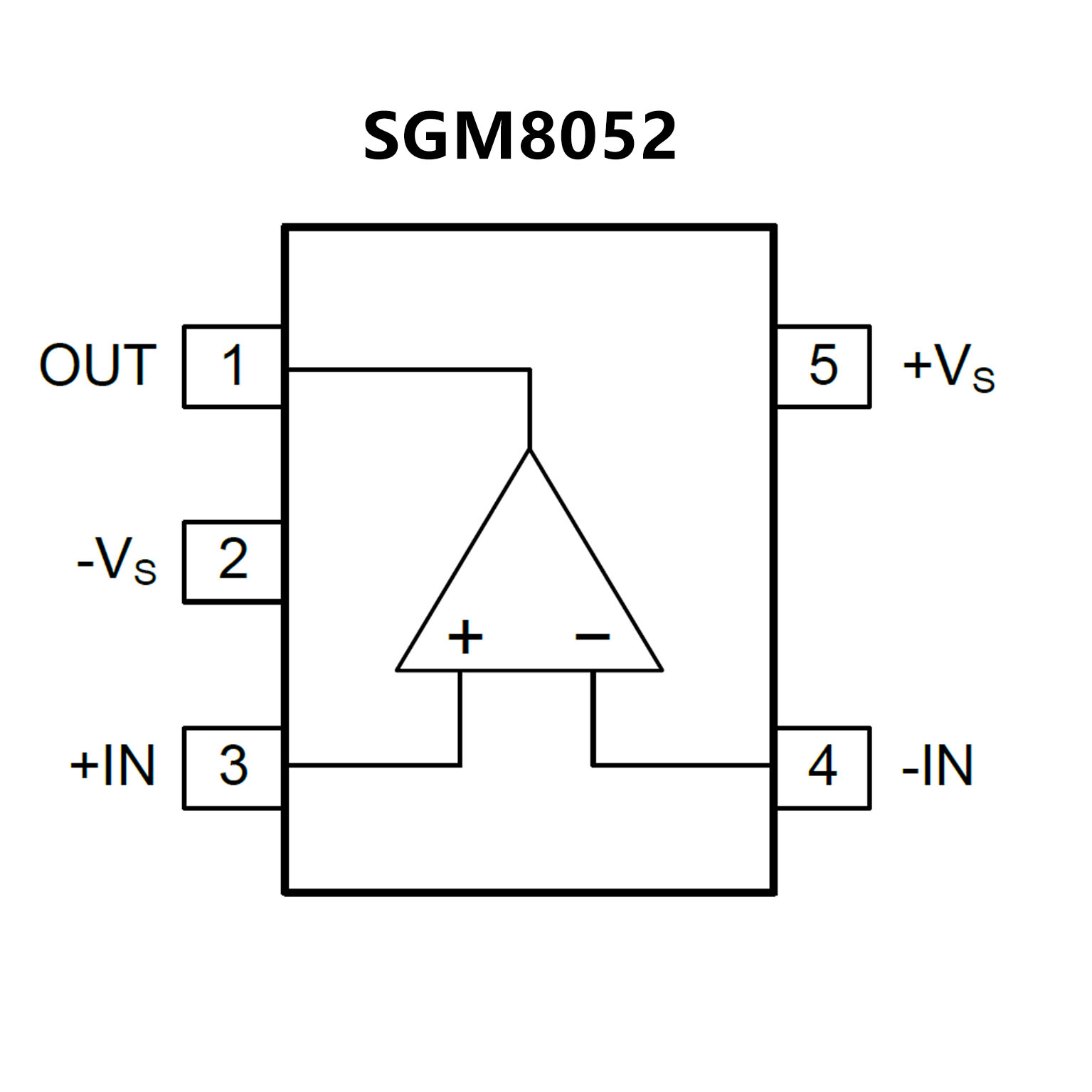

SGM8052.pdf• Low Cost
• Rail-to-Rail Output
• Input Offset Voltage: 8mV (MAX)
• High Speed:
-3dB Bandwidth (G = +1): 250MHz
Slew Rate: 130V/μs
Settling Time to 0.1% with 2V Step: 58ns
• Supply Voltage Range: 2.5V to 5.5V
• Input Voltage Range: -0.2V to 3.8V with VS = 5V
• Excellent Video Specs (RL = 150Ω, G = +2):
0.1dB Gain Flatness: 37MHz
Diff Gain: 0.03%, Diff Phase: 0.08°
● Low Supply Current:
2.3mA/Amplifier (TYP)
75μA Shutdown Current for SGM8053/5

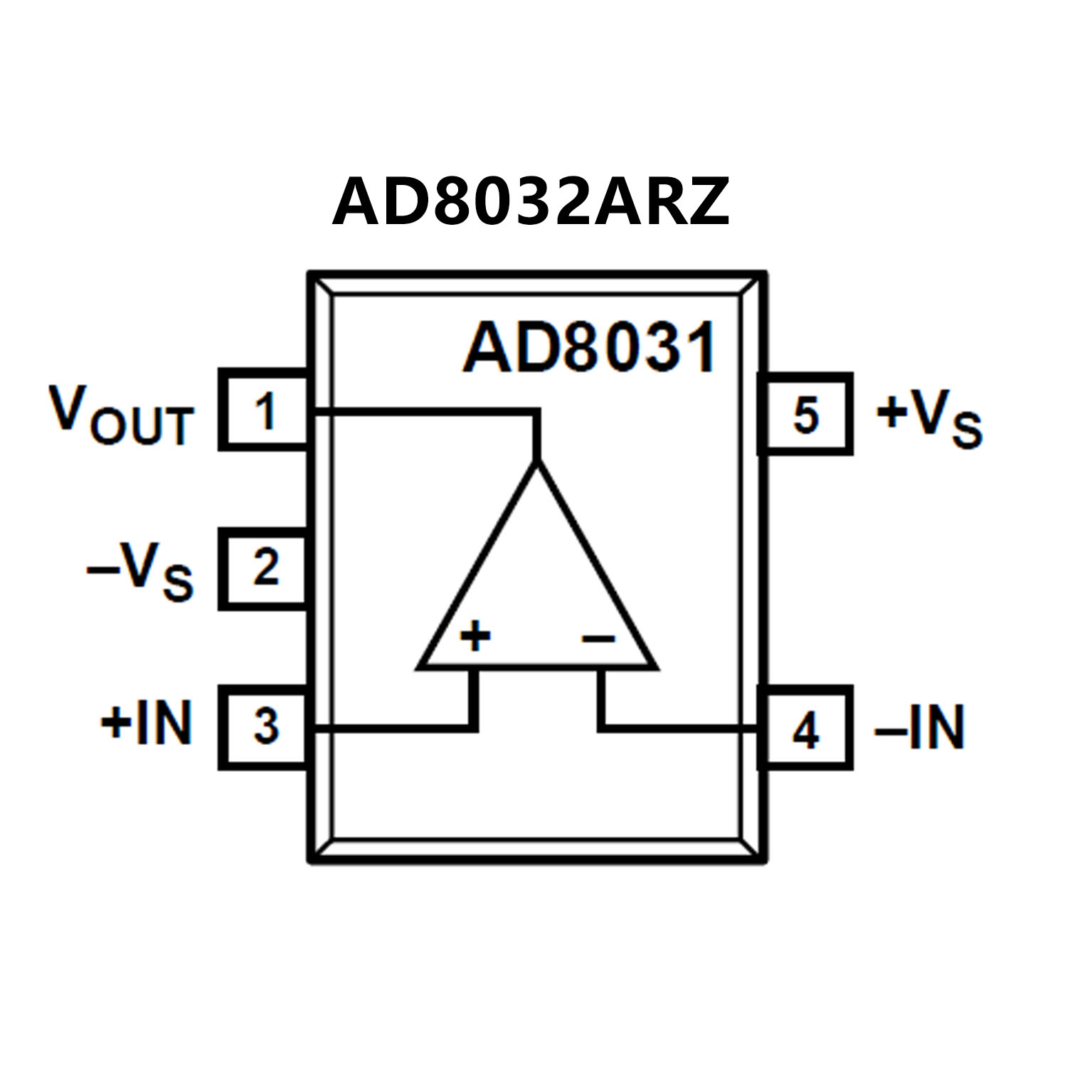

• Supply current 800 μA/amplifier
• Fully specified at +2.7 V, +5 V, and ±5 V supplies
• High speed and fast settling on 5 V
80 MHz, −3 dB bandwidth (G = +1)
30 V/μs slew rate
125 ns settling time to 0.1%
• Rail-to-rail input and output
• No phase reversal with input 0.5 V beyond supplies
• Input CMVR extends beyond rails by 200 mV
• Output swing to within 20 mV of either rail
• Low distortion
−62 dB @ 1 MHz, VO = 2 V p-p
−86 dB @ 100 kHz, VO = 4.6 V p-p
• Output current: 15 mA
• High grade option: VOS (maximum) = 1.5 mV
