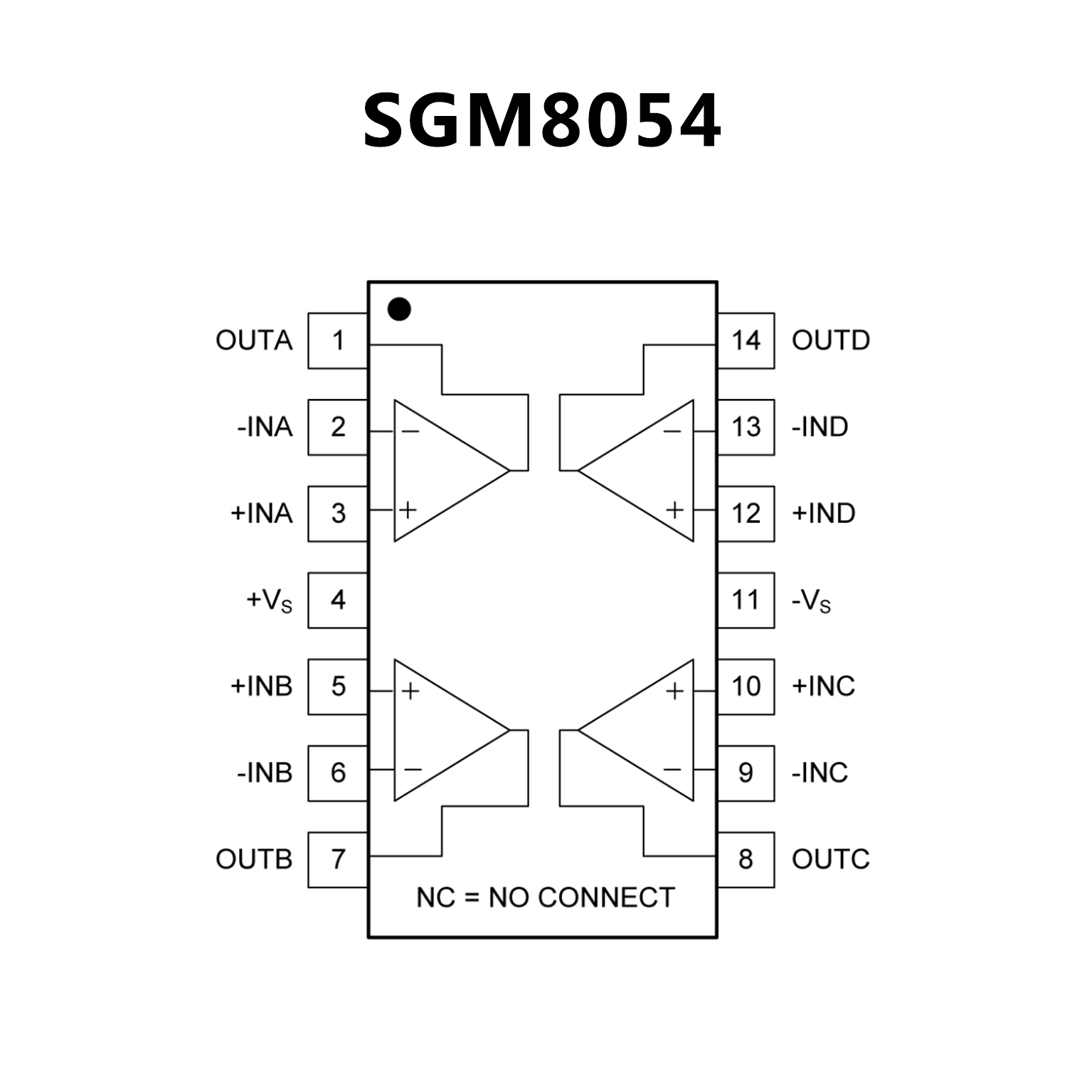

SGM8054.pdf• Low Cost
• Rail-to-Rail Output
• Input Offset Voltage: 8mV (MAX)
• High Speed:-3dB Bandwidth: 250MHz (G = +1)Slew Rate:
130V/μs Settling Time to 0.1% with 2V Step: 58ns
• Supply Voltage Range: 2.5V to 5.5V
• Input Voltage Range: -0.2V to 3.8V with VS = 5V
• Excellent Video Specs (RL = 150Ω, G = +2):0.1dB Gain Flatness:
37MHzDiff Gain: 0.03%, Diff Phase: 0.08°
• Low Supply Current: 2.3mA/Amplifier (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in TSSOP-14 and SOIC-14 Packages

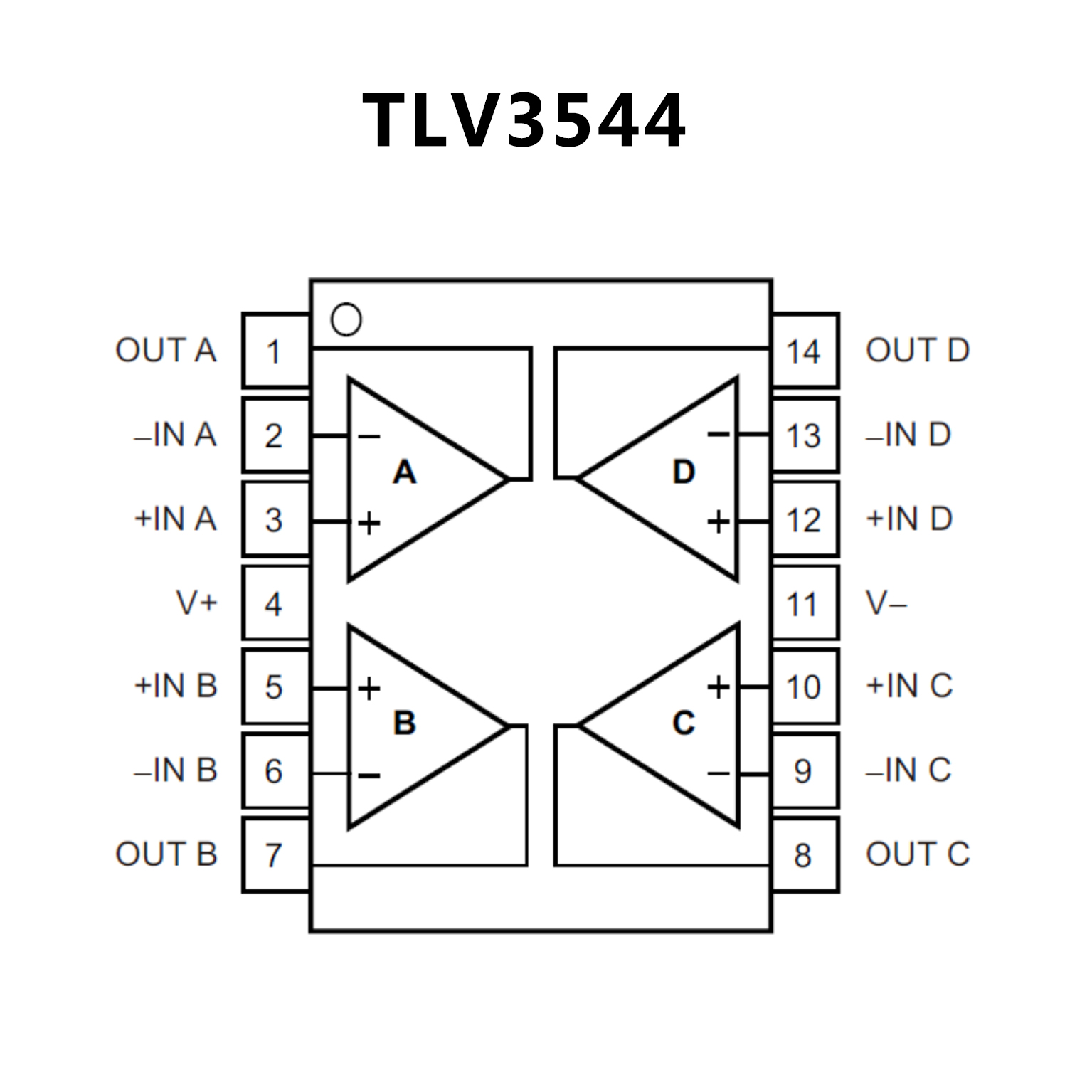

• Wide-Bandwidth Amplifier for Cost-Sensitive Systems
• Unity-Gain Bandwidth: 200 MHz
• High Slew Rate: 150 V/μs
• Low Noise: 7.5 nV/√Hz
• Rail-to-Rail I/O
• High Output Current: > 100 mA
• Excellent Video Performance:
– Diff Gain: 0.02%, Diff Phase: 0.09°
– 0.1-dB Gain Flatness: 40 MHz
• Low Input Bias Current: 3 pA
• Quiescent Current: 5.2 mA
• Thermal Shutdown
• Supply Range: 2.5 V to 5.5 V
