High Speed Operational Amplifier,SGM8061 Replace AD8061.
FEATURES

• Low Cost

• Rail-to-Rail Output

 -2mV Typical VOS

• High Speed

 -500 MHz, –3 dB Bandwidth (G = +1)

 -420 V/µs, Slew Rate

 -16 ns Settling Time to 0.1% with 2V Step

• Operates on 2.5 V to 5.5V Supplies

• Input Voltage Range = – 0.2 V to + 3.8 V with VS = 5V

• Excellent Video Specs (RL = 150Ω, G = +2)

 -Gain Flatness 0.1dB to 80 MHz

 -Diff Gain: 0.015 %, Diff Phase: 0.05 degree

• Low Power

 -8.2 mA/Amplifier Typical Supply Current

 -SGM8063 75µA when Disabled

• Small Packaging

 -SGM8061 Available in SO-8 and SOT23-5






PIN CONFIGUTION
优势替代
AD8061 AD8061.pdf

No.10006

FEATURES

• Low Cost

• Single (AD8061), Dual (AD8062)

• Single with Disable (AD8063)

• Rail-to-Rail Output Swing

 -6 mV VOS

• High Speed

 -300 MHz, –3 dB Bandwidth (G = 1)

 -800 V/µs Slew Rate

 -8.5 nV/√Hz @ 5 V

 -35 ns Settling Time to 0.1% with 1 V Step

• Operates on 2.7 V to 8 V Supplies

 -Input Voltage Range = –0.2 V to +3.2 V with VS = 5

• Excellent Video Specs (RL = 150 Ω, G = 2)

  Gain Flatness 0.1 dB to 30 MHz

  0.01% Differential Gain Error

  0.04 Differential Phase Error

  35 ns Overload Recovery

• Low Power

  6.8 mA/Amplifier Typical Supply Current

  AD8063 400 A when Disabled

• Small Packaging

  AD8061 Available in SOIC-8 and SOT-23-5

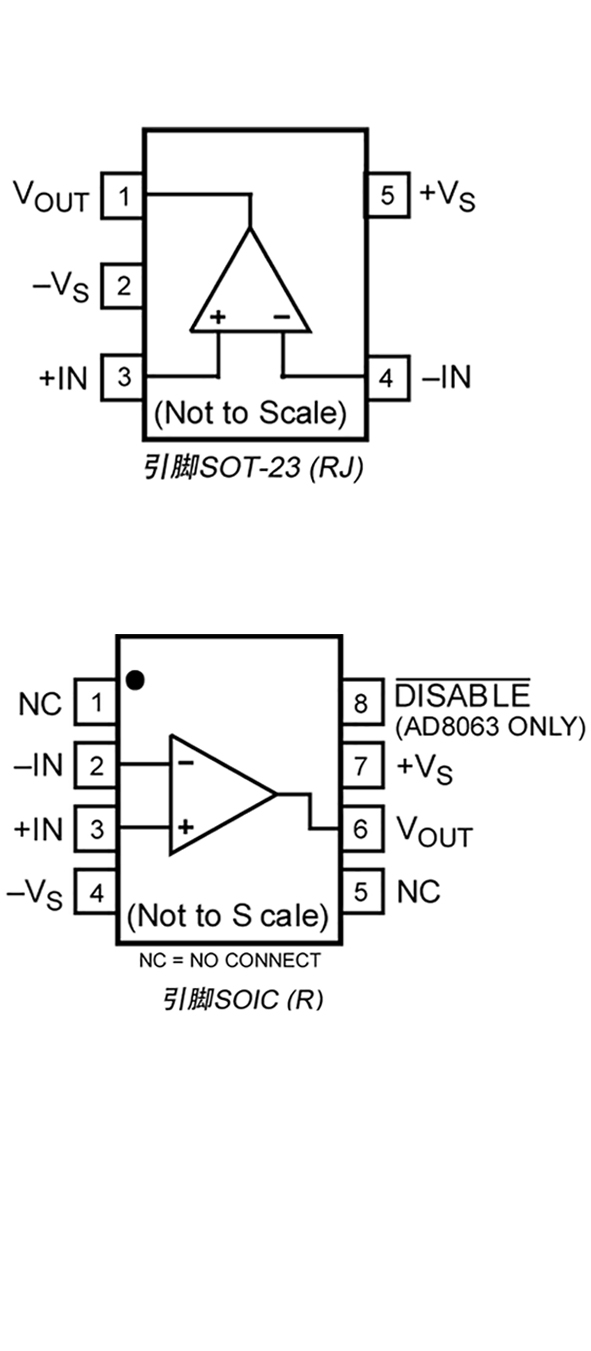

PIN CONFIGUTION
