• Low Cost

• Rail-to-Rail Output

• Input Offset Voltage: 8mV (MAX)

• High Speed:

  500MHz, -3dB Bandwidth (G = +1)

  420V/μs, Slew Rate

  16ns Settling Time to 0.1% with 2V Step

• Supply Voltage Range: 2.5V to 5.5V

• Input Voltage Range: -0.2V to 3.8V with VS = 5V

• Excellent Video Specs (RL = 150Ω, G = +2):

  Gain Flatness: 0.1dB to 80MHz

  Diff Gain: 0.015%, Diff Phase: 0.05 Degree

• Low Supply Current:

  8.2mA/Amplifier (TYP)

  75μA Shutdown Current for SGM8063

• -40℃ to +125℃ Operating Temperature Range

• Small Packaging:

  SGM8061 Available in Green SOT-23-5 and

  SOIC-8 Packages

  SGM8062 Available in Green MSOP-8 and

  SOIC-8 Packages

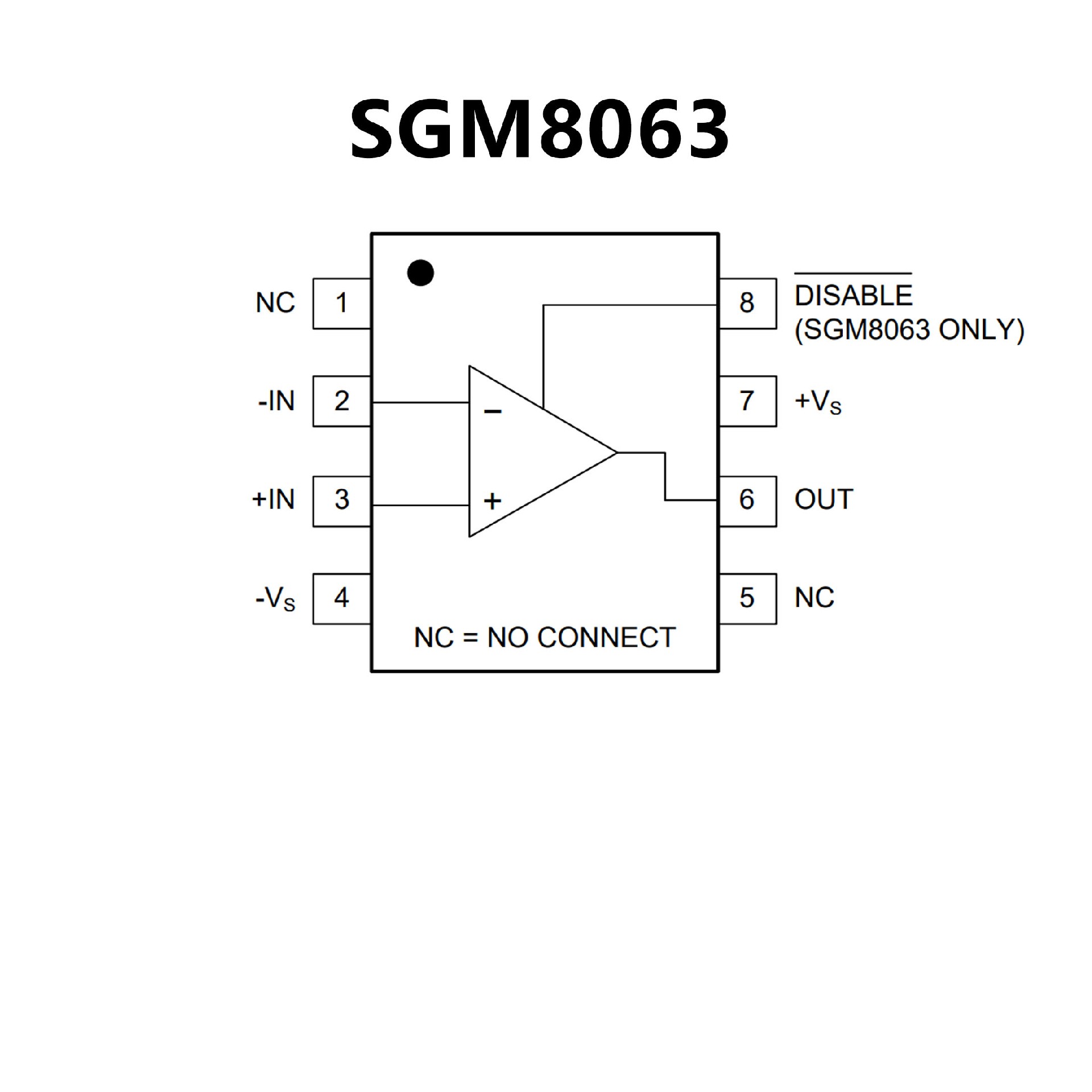

  SGM8063 Available in Green SOT-23-6 and

  SOIC-8 Packages
