SGM8094.pdf• Rail-to-Rail Output 2mV Typical VOS
• High Speed
350MHz, -3dB Bandwidth (G = +1)
265V/μs, Slew Rate
32ns Settling Time to 0.1% with 2V Step
• Operates on 2.5V to 5.5V Supplies
• Input Voltage Range = -0.2V to +3.8V with VS = 5V
• Excellent Video Specs (RL = 150Ω, G = +2)
Gain Flatness 0.1dB to 70MHz
Diff Gain: 0.004%, Diff Phase: 0.08 degree
• Low Power
4.3mA/Amplifier Typical Supply Current
• Small Packaging

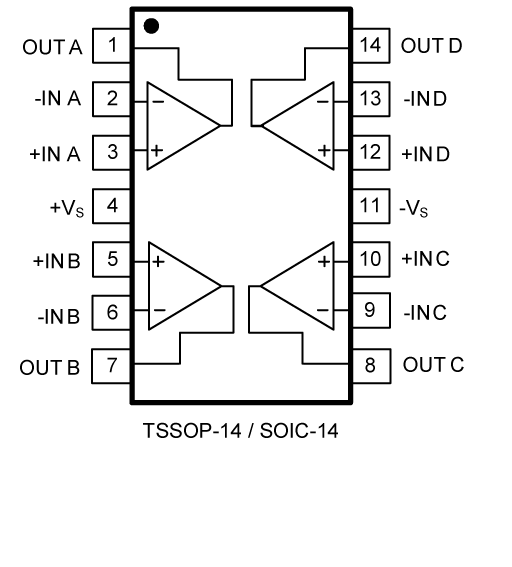

SGM8094 Available in SOIC-14 and TSSOP-14

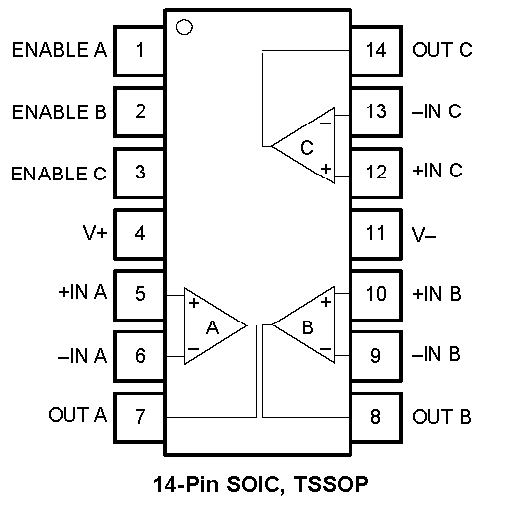

• UNITY-GAIN BANDWIDTH: 450MHz
• WIDE BANDWIDTH: 200MHz GBW
• HIGH SLEW RATE: 360V/μs
• LOW NOISE: 5.8nV/√Hz
• EXCELLENT VIDEO PERFORMANCE:
DIFF GAIN: 0.02%, DIFF PHASE: 0.05°
0.1dB GAIN FLATNESS: 75MHz
• INPUT RANGE INCLUDES GROUND
• RAIL-TO-RAIL OUTPUT (within 100mV)
• LOW INPUT BIAS CURRENT: 3pA
• LOW SHUTDOWN CURRENT: 3.4μA
• ENABLE/DISABLE TIME: 100ns/30ns
• THERMAL SHUTDOWN
• SINGLE-SUPPLY OPERATING RANGE: 2.5V to 5.5V
