SGM809B-2.93.pdf• Precision Voltage Monitor: 3V, 3.3V, 5V Options
• Superior Upgrade for MAX803/MAX809/MAX810
and ADM803/ADM809/ADM810
• Fully Specified over Temperature
• VCC Transient Immunity
• Low Power Consumption: 240nA (TYP)
• Reset Assertion Down to 1V VCC
• 330ms Power-On Reset (TYP)
Open-Drain nRESET Output (SGM803B)
Push-Pull nRESET Output (SGM809B)
Push-Pull RESET Output (SGM810B)
• -40℃ to +125℃ Operating Temperature Range
Small Packaging
SGM803B Available in SOT-23-3 and SOT-23

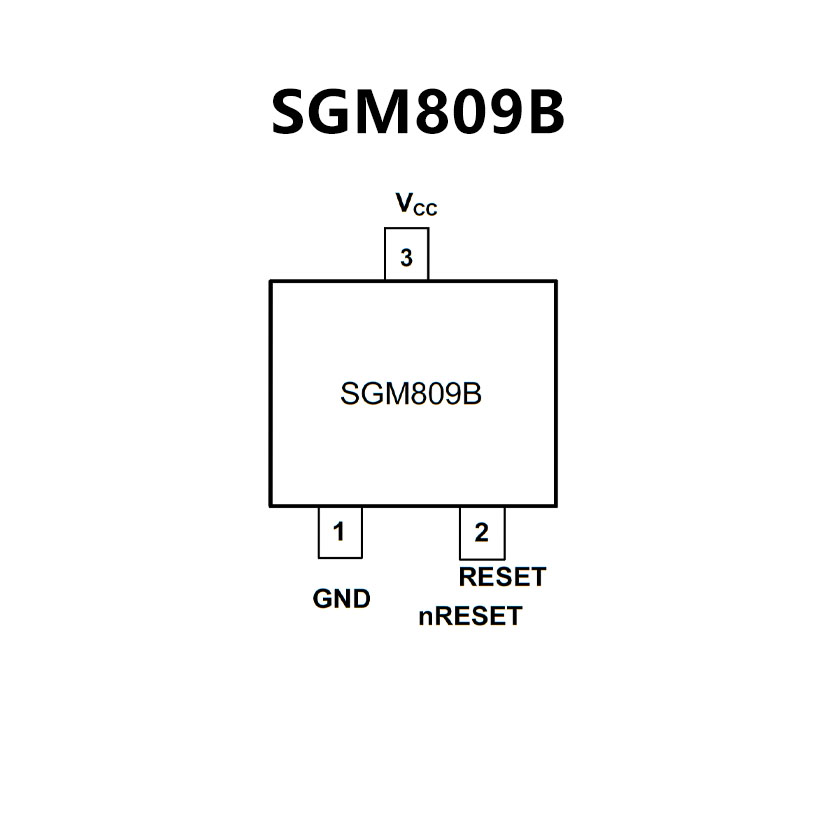

SGM809B Available in SOT-23-3 and SOT-23
SGM810B Available in SOT-23-3 and SOT-23
•Ultra Low Supply Current 1μA (typ)
•Guaranteed Reset valid to VCC = 0.9V
•140ms Power-On Reset Pulse Width
•Internally Fixed Threshold2.3V,
2.6V, 2.9V, 3.1V, 4.4V, 4.6V
•1.5% Voltage Threshold Tolerance

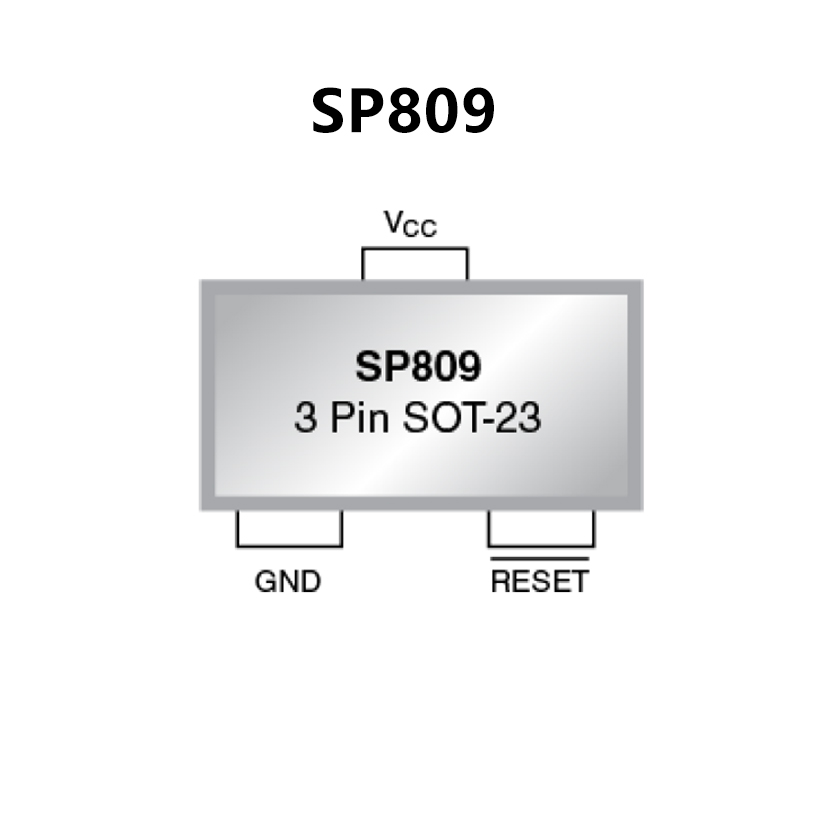

•3 Pin SOT-23 Package
