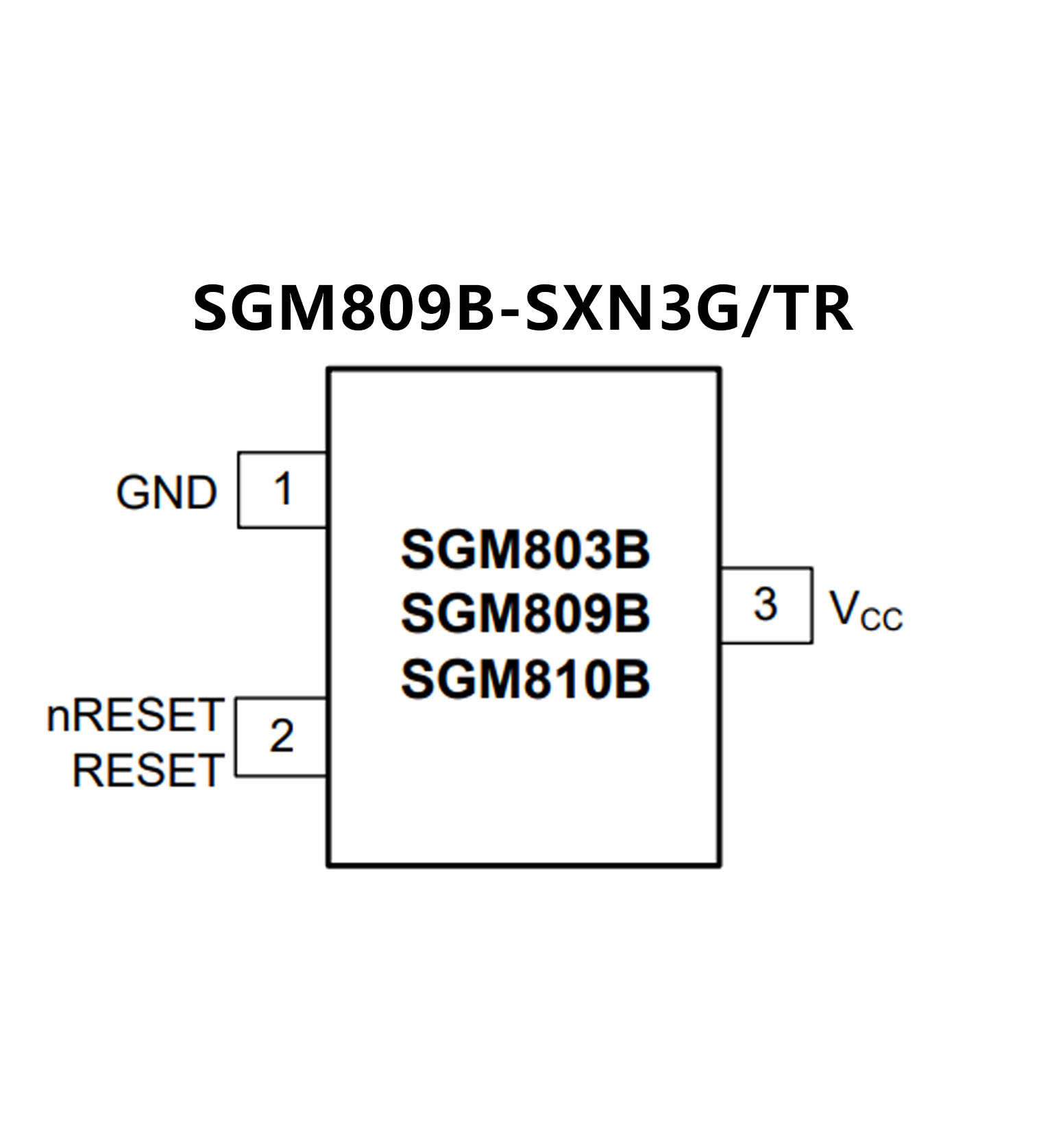

SGM809B-SXN3G.pdf• Precision Voltage Monitor: 3V, 3.3V, 5V Options
• Superior Upgrade for MAX803/MAX809/MAX810
and ADM803/ADM809/ADM810
• Fully Specified over Temperature
• VCC Transient Immunity
• Low Power Consumption: 240nA (TYP)
• Reset Assertion Down to 1V VCC
• 330ms Power-On Reset (TYP)
Open-Drain nRESET Output (SGM803B)
Push-Pull nRESET Output (SGM809B)
Push-Pull RESET Output (SGM810B)
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging
SGM803B Available in SOT-23-3 and SOT-23
SGM809B Available in SOT-23-3 and SOT-23
SGM810B Available in SOT-23-3 and SOT-23

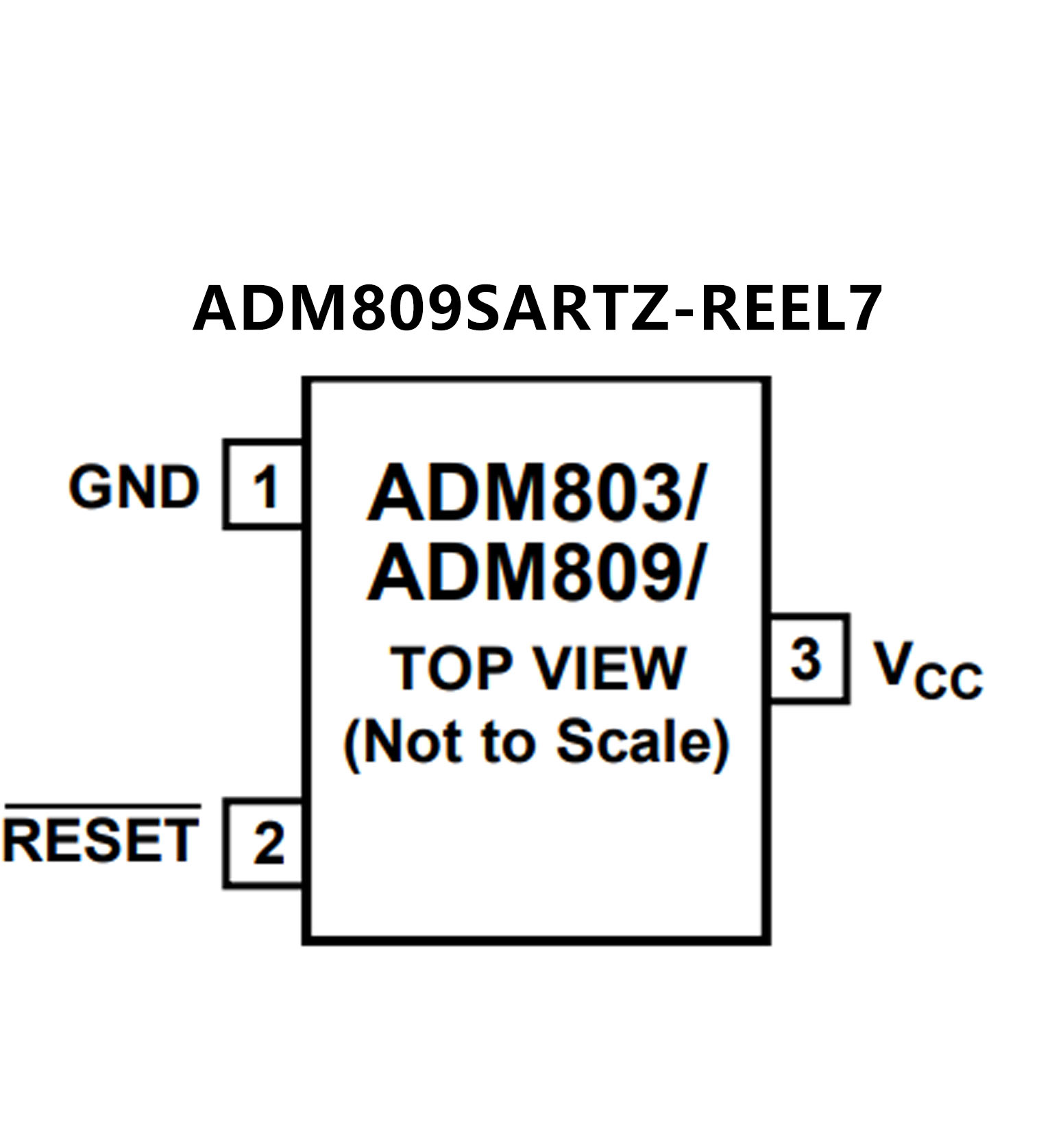

• Specified over temperature
• Low power consumption: 17 μA
• Precision voltage monitor: 2.5 V, 3 V, 3.3 V, 5 V options
• Reset assertion down to 1 V VCC
• 140 ms minimum power-on reset
Open-drain RESET output (ADM803)
Push-pull RESET output (ADM809)
Push-pull RESET output (ADM810)
• SC70 and SOT-23 packages
