SGM810B.pdf• Precision Voltage Monitor: 1.8V, 2.5V, 3V, 3.3V,
5V Options
• Superior Upgrade for MAX803/MAX809/MAX810
and ADM803/ADM809/ADM810
• Fully Specified over Temperature
• Low Power Consumption: 13μA (TYP)
• Reset Assertion Down to 1V VCC
• 150ms Power-On Reset (MIN)
Open-Drain RESET Output (SGM803)
Push-Pull RESET Output (SGM809)
Push-Pull RESET Output (SGM810)
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging

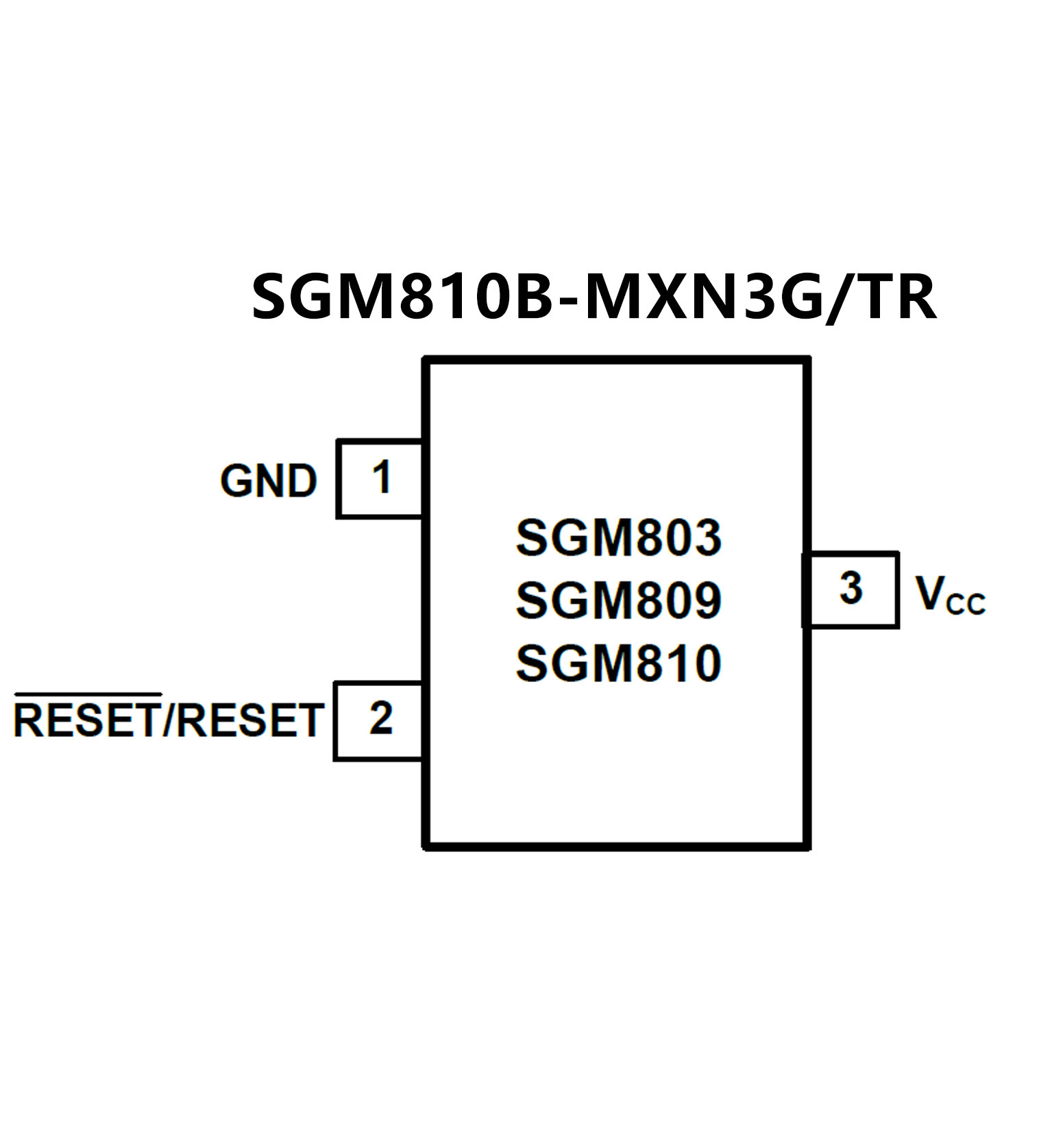

SGM803 Available in SOT-23-3 and SOT-23
SGM809 Available in SOT-23-3 and SOT-23
SGM810 Available in SOT-23-3 and SOT-23
• Specified over temperature
• Low power consumption: 17 μA
• Precision voltage monitor: 2.5 V,
3 V, 3.3 V, 5 V options
• Reset assertion down to 1 V VCC
• 140 ms minimum power-on reset
Open-drain RESET output (ADM803)
Push-pull RESET output (ADM809)
Push-pull RESET output (ADM810)

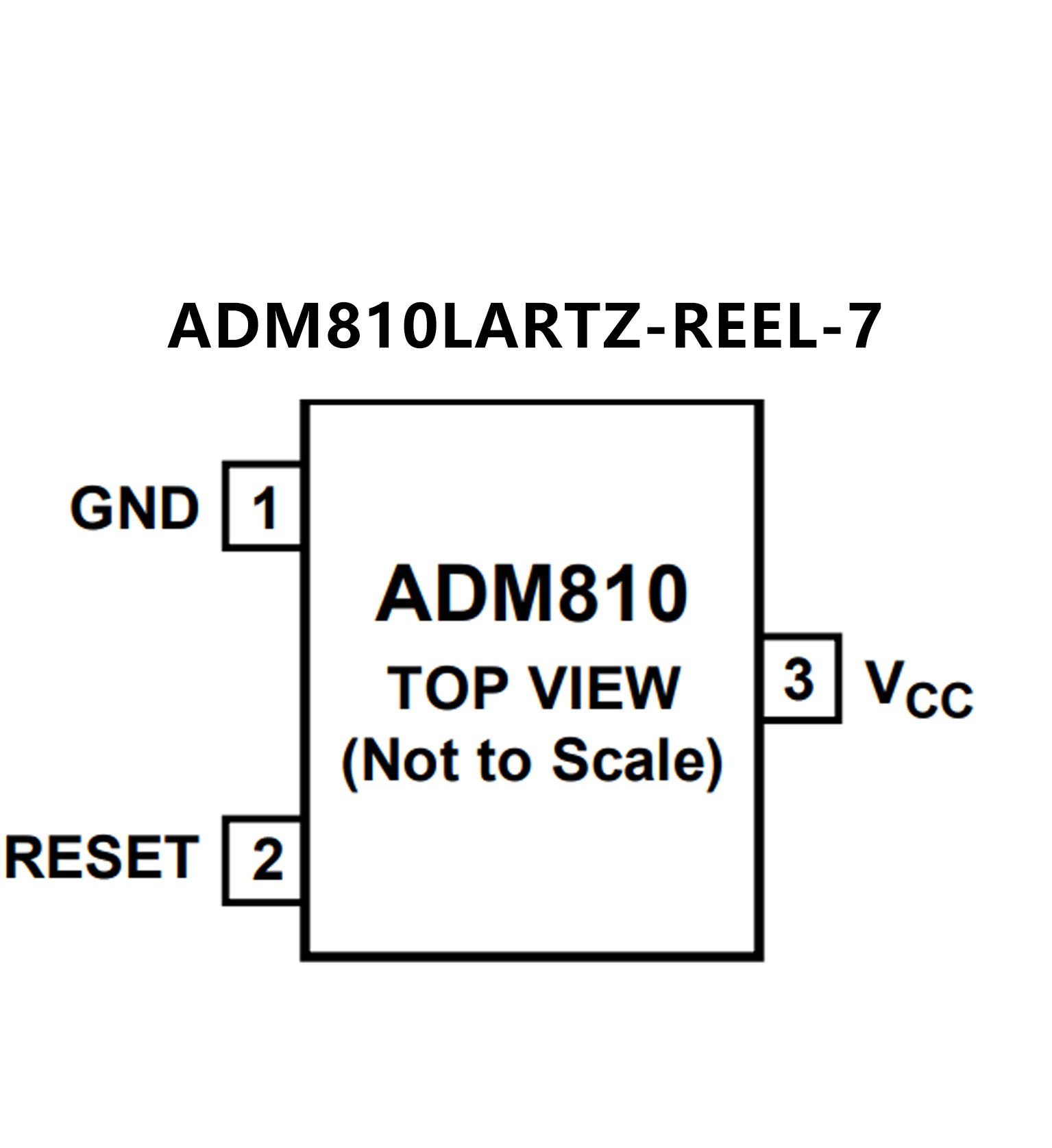

• SC70 and SOT-23 packages
