Microprocessor Supervisory Circuits with Manual Reset Input, SGM811-RXKA4/TR P2P UM805RE.
SGM811-RXKA4/TR
SGM811-RXKA4/TR.pdf
SGM811-RXKA4/TR.pdfFEATURES
• Superior Upgrade for MAX811/MAX812
and ADM811/ADM812
• Full Specified over Temperature
• Low Power Consumption: 13μA (TYP)
• Precision Voltage Monitor: 1.8V,
2.5V, 3V, 3.3V and 5V Options
• Reset Assertion Down to 1V VCC
• 150ms (MIN) Power-On Reset
Logic Low nRESET Output (SGM811)
Logic High RESET Output (SGM812)
• Manual Reset Input
• Available in Green SOT-143 and SOT-23-5 Packages

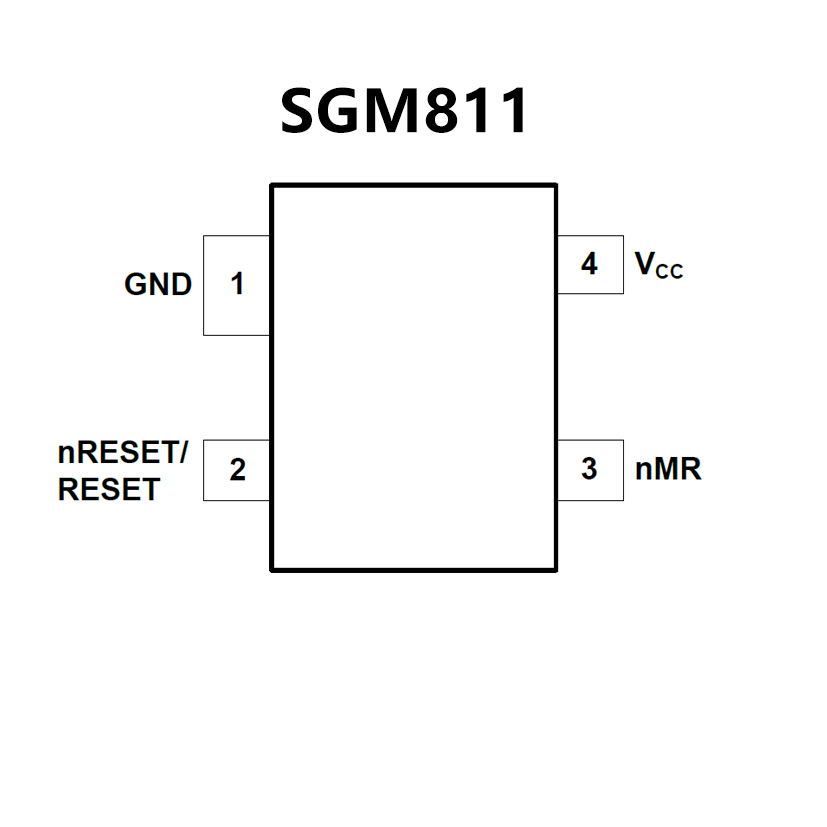

PIN CONFIGUTION
优势替代
FEATURES
• Computers
• Controllers
• Portable/Battery-Powered Equipments
• Intelligent Instruments
• Critical μP and μC Power Monitoring
PIN CONFIGUTION
