Microprocessor Supervisory Circuits with Manual Reset Input,SGM811RXKA4TR-Replace-ADM811RARTZREEL7.
SGM811-RXKA4
SGM811-RXKA4.pdf
SGM811-RXKA4.pdfFEATURES
• Superior Upgrade for MAX811/MAX812
and
ADM811/ADM812
• Ultra-Low Power Consumption < 1μA (TYP)
• Fully Specified over Temperature
• Precision Voltage Monitor: 3V and 3.3V Options
• Reset Assertion Down to 1V VCC
• 200ms (TYP) Reset Pulse Width
Logic Low nRESET Output (SGM811B)
Logic High RESET Output (SGM812B)
• Manual Reset Input
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOT-143 Package

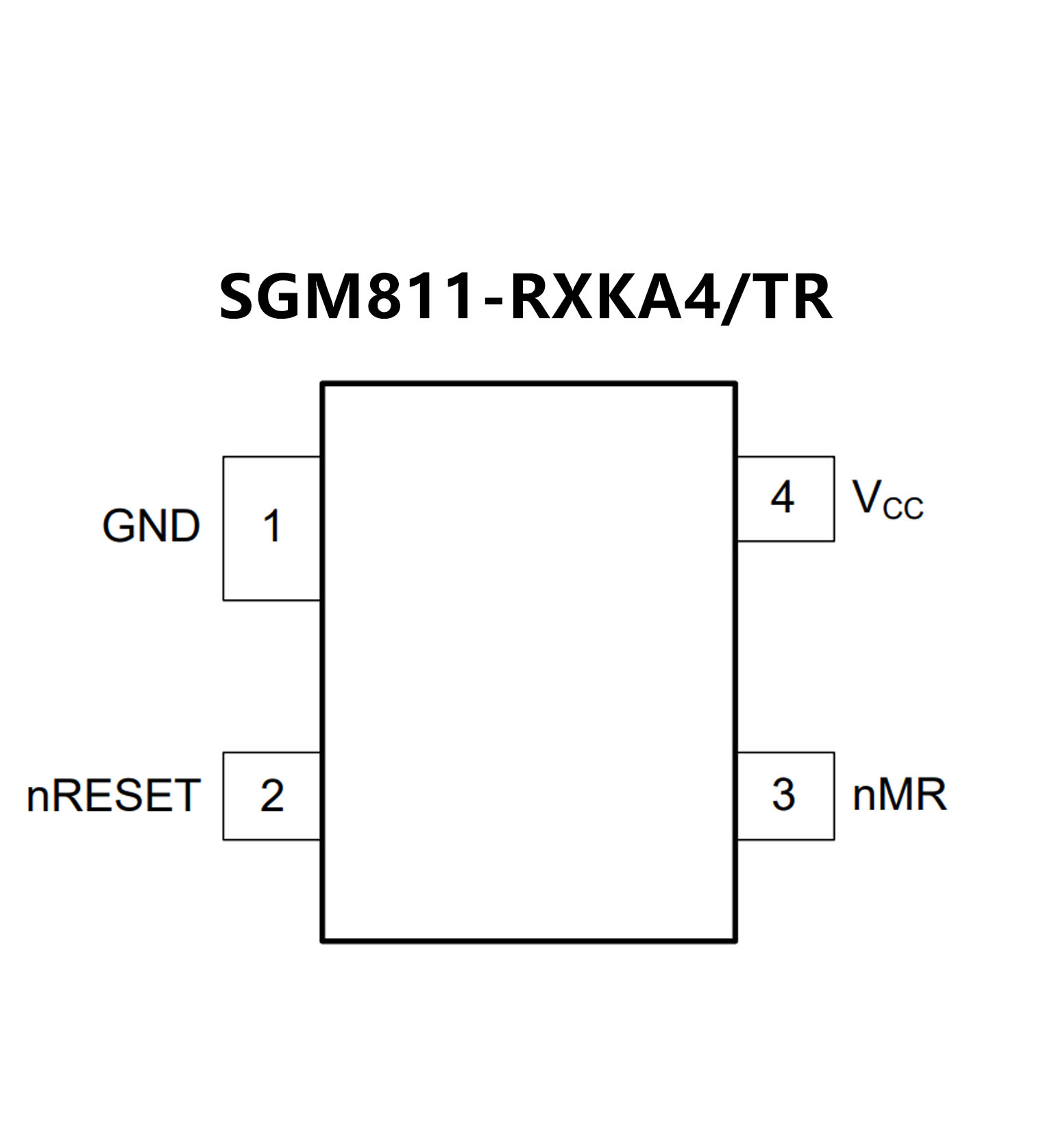

PIN CONFIGUTION
优势替代
FEATURES
• Superior upgrade for MAX811/MAX812
• Specified over temperature
• Low power consumption: 5 μA typical
• Precision voltage monitor: 2.5 V, 3 V, 3.3 V, 5 V options
• Reset assertion down to 1 VCC
• Power-on reset: 140 ms minimum
• Logic low RESET output (ADM811)
• Logic high RESET output (ADM812)
• Built-in manual reset

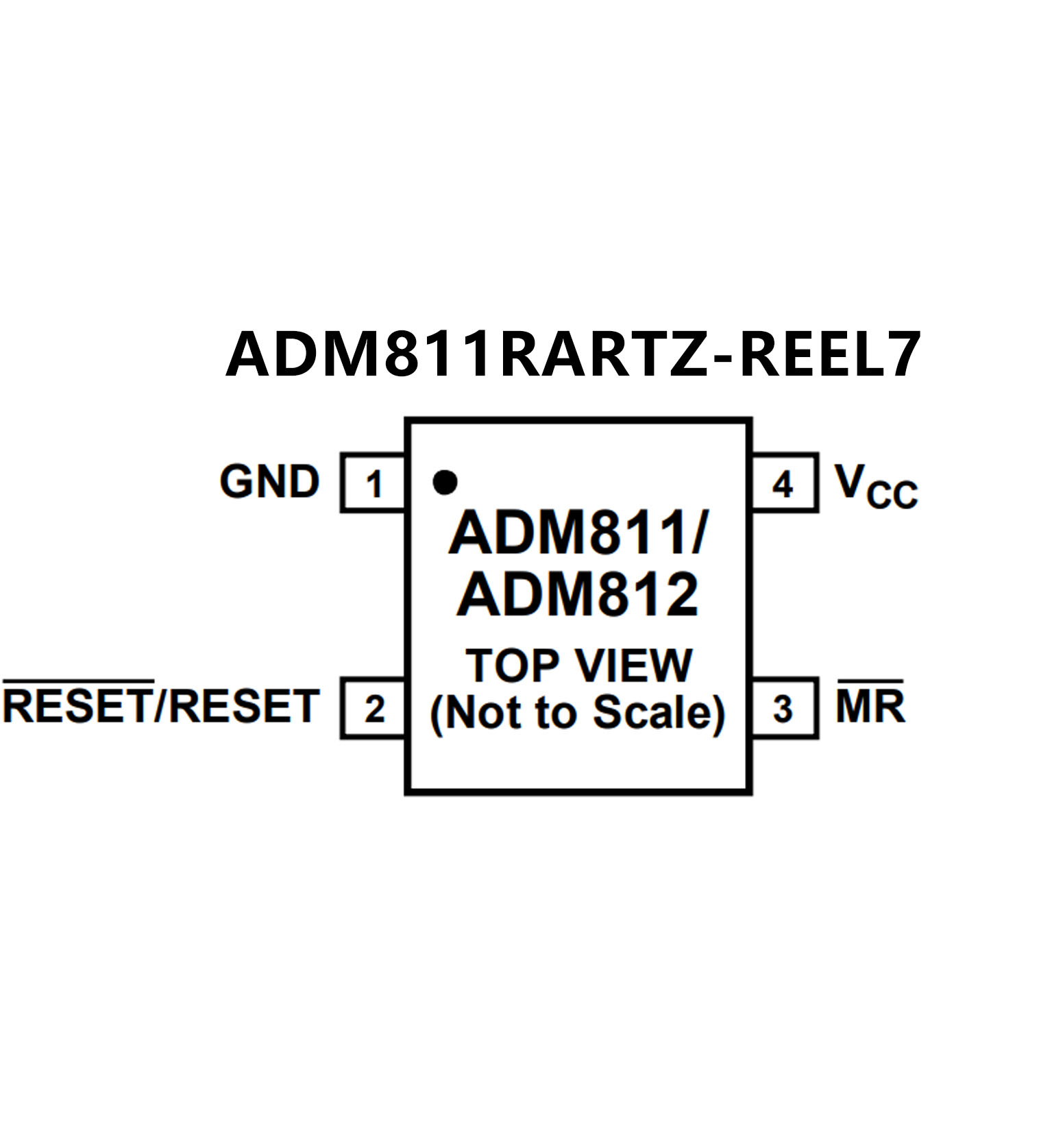

PIN CONFIGUTION
