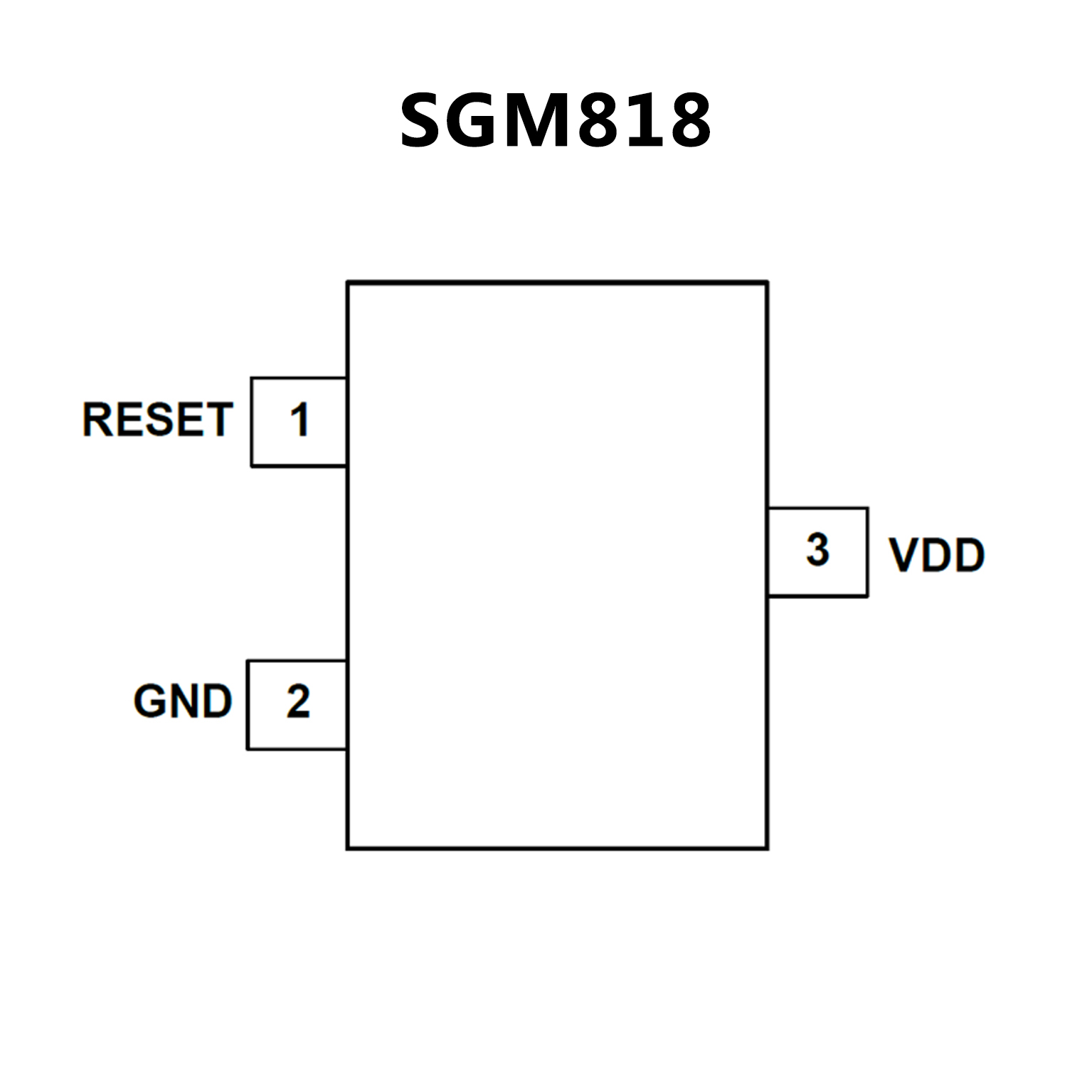

SGM818.pdf• High Accuracy: ±1% at TJ = +25℃
• Low Supply Current: 1μA (TYP)
• Detection Voltage Range: 1.2V to 5V (0.1V Increments)
• No External Components Required
• Quick Reset within 37μs (TYP)
• Reset Active Timeout Period
SGM818A: 0ms (nRESET)
SGM818B: 51ms (nRESET)
SGM818C: 208ms (nRESET)
SGM818D: 409ms (nRESET)
SGM818E: 0ms (RESET)
SGM818F: 51ms (RESET)
SGM818G: 208ms (RESET)
SGM818H: 409ms (RESET)
• Low Functional Supply Voltage: 0.9V
• N-Channel Open-Drain Output
• Available in a Green SOT-23-3 Package
• Internally Fixed Threshold
1.2V to 5V in 0.1V Step
• High Accuracy ±±±±±1.5%
• Low Supply Current 3μμμμμA
• No External Components Required
• Quick Reset within 20μμμμμs
• Built-In Recovery Delay Include 0ms,
55ms, 220ms, 450ms Options
• Low Functional Supply Voltage 0.9V
• N-Channel Open-Drain Output
• Small SC-82, SC-70-3, SOT-23-3,
SOT-23-5, SOT-89 Packages
• RoHS Compliant and 100% Lead (Pb)-Free
