Tiny Packages, Nano-Power, Precision Current-Sense Amplifier,SGM8193 Replace MAX9634.
SGM8193
SGM8193.pdf
SGM8193.pdfFEATURES
• Ultra-Low Quiescent Current at
TA = +25℃:0.8µA (TYP), 1.1μA (MAX)
• Input Common Mode Range: 1.6V to 28V
• Low Input Offset Voltage: 100μV (MAX)
• Choice of Gains:
SGM8193A0 Gain: 25V/V
SGM8193A1 Gain: 50V/V
SGM8193A2 Gain: 100V/V
SGM8193A3 Gain: 200V/V
• Low Gain Error: 0.5% (MAX)
• Voltage Output
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOT-23-5
and WLCSP-1×1-4BPackages

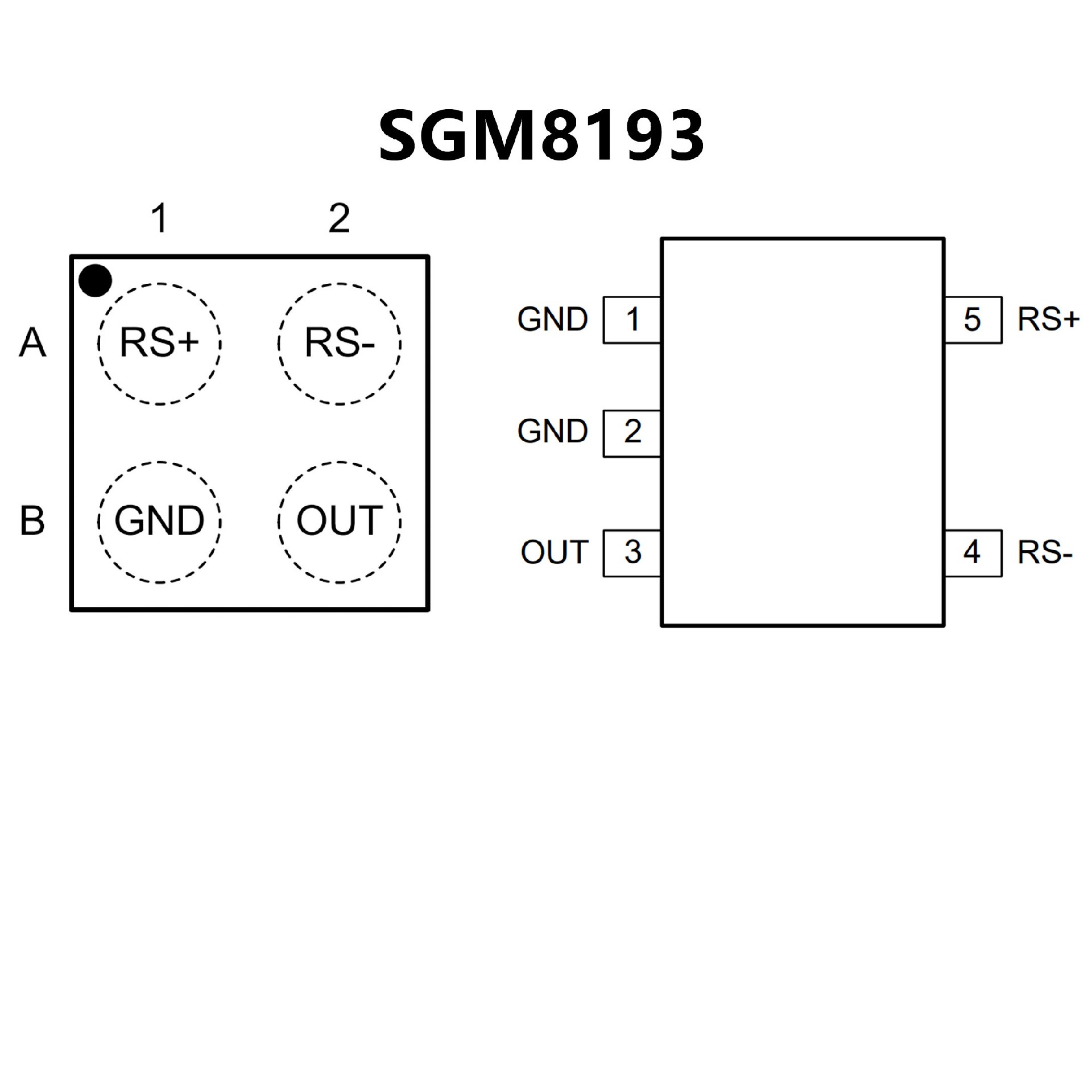

PIN CONFIGUTION
优势替代
FEATURES
• Ultra-Low Supply Current of 1μA (max)
• Low 250μV (max) Input Offset Voltage
• Low < 0.5% (max) Gain Error
• Input Common Mode: +1.6V to +28V
• Voltage Output
• Four Gain Versions Available
25V/V (MAX9634T)
50V/V (MAX9634F)
100V/V (MAX9634H)
200V/V (MAX9634W)
• Tiny 1mm x 1mm x 0.6mm, 4-Bump UCSP or
5-PinSOT23 Packages

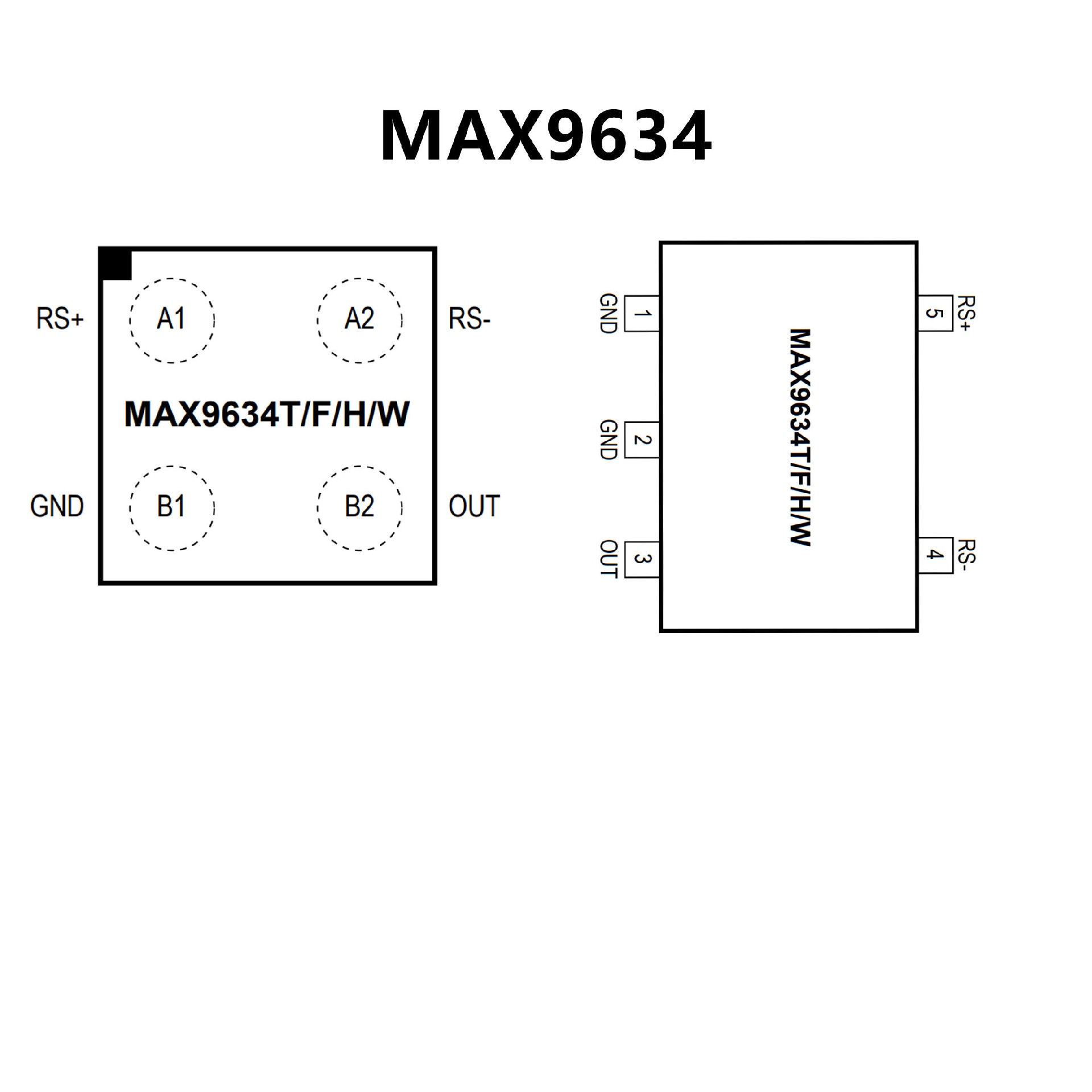

PIN CONFIGUTION
