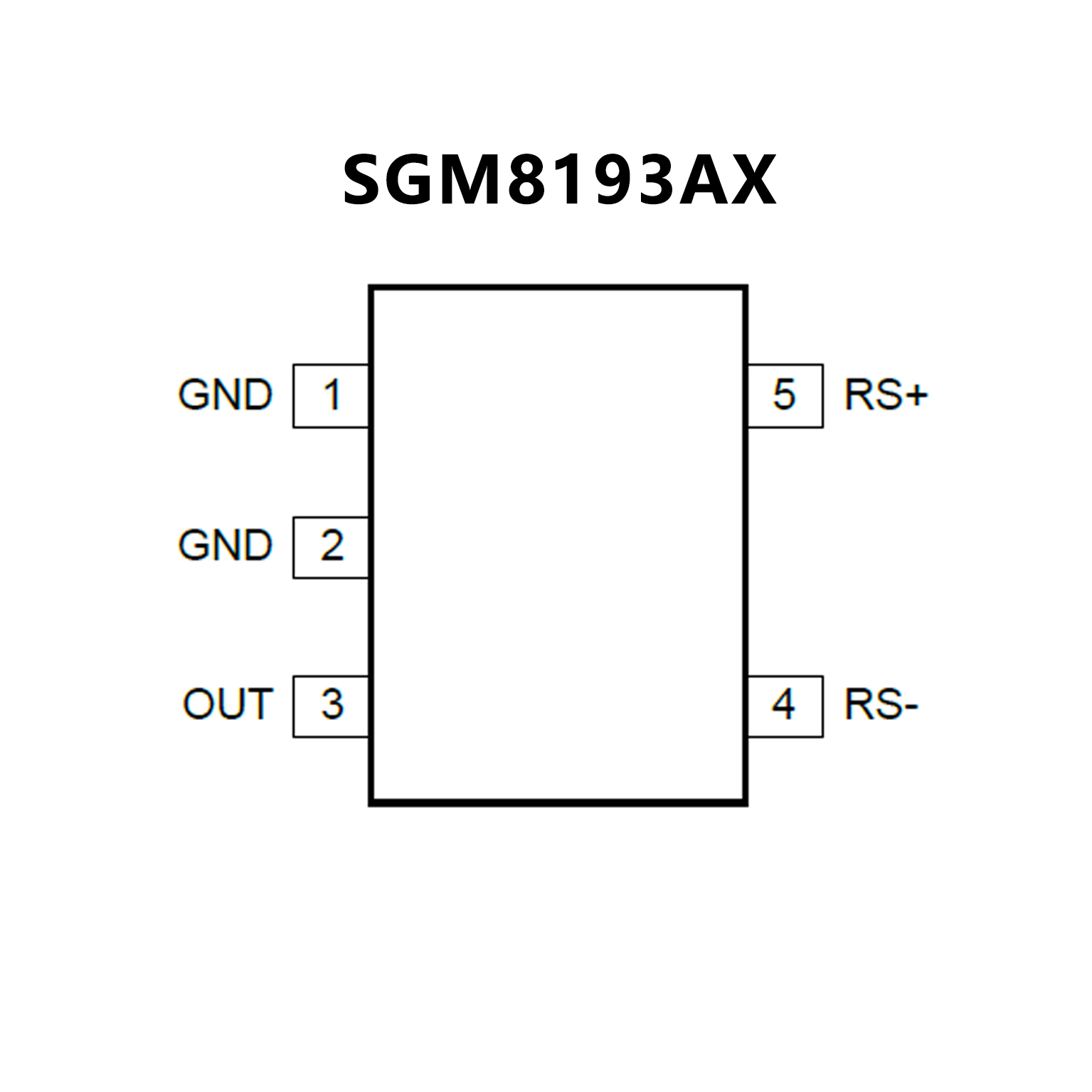

SGM8193AX.pdf• Ultra-Low Quiescent Current at TA
= +25℃: 0.8μA (TYP), 1.1μA (MAX)
• Input Common Mode Range: 1.6V to 28V
• Low Input Offset Voltage: 100μV (MAX)
• Choice of Gains:
SGM8193A0 Gain: 25V/VSGM8193A1 Gain: 50V/V
SGM8193A2 Gain: 100V/VSGM8193A3 Gain: 200V/V
• Low Gain Error: 0.5% (MAX)
• Voltage Output
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOT-23-5 and WLCSP-1×1-4B Packages

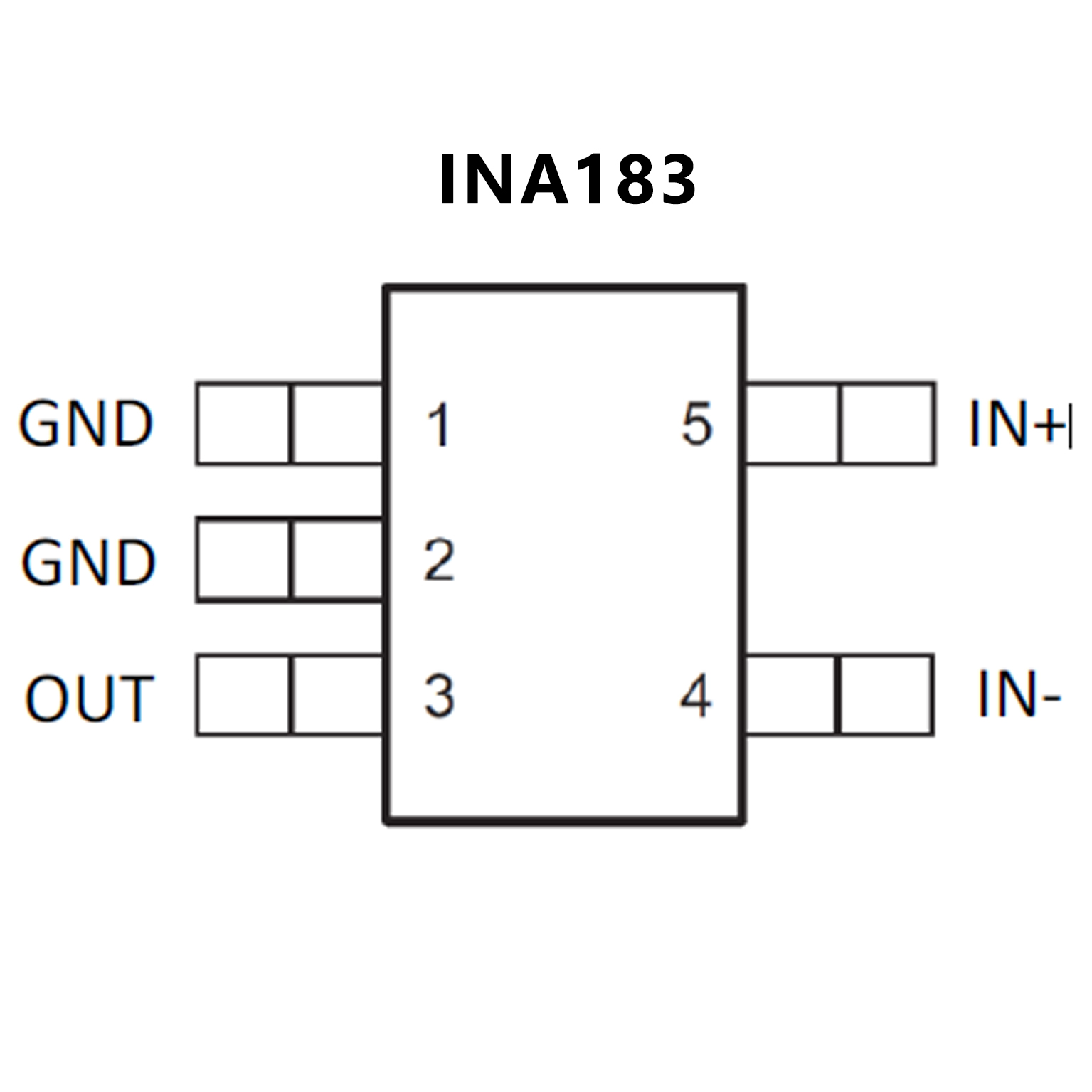

• Wide Common-Mode Range: 2.7 V to 26 V
• Offset Voltage: ±170 μV (Maximum)
(Enables Shunt Drops of 10-mV Full-Scale)
• Accuracy:
Gain Error ±0.4% (Maximum Over Temperature):
0.5-μV/°C Offset Drift (Maximum)
10-ppm/°C Gain Drift (Maximum)
• Choice of Gains:
INA183A1: 50 V/V
INA183A2: 100 V/V
INA183A3: 200 V/V
• Quiescent Current: 130 μA (Maximum)
• Package: 5-Pin SOT-23
