High-side Measurement Current Shunt Monitor, SGM8198 Replace INA138NA.
SGM8198
SGM8198.pdf
SGM8198.pdfFEATURES
• Unipolar High-side Current Measurement Circuit
• Wide Supply Voltage Range: 2.7V to 36V
• Wide Input Common Mode Voltage Range: 2.7Vto 36V
• Single Resistor Gain Set
• Low Quiescent Current: 65μA (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOT-23-5 Package

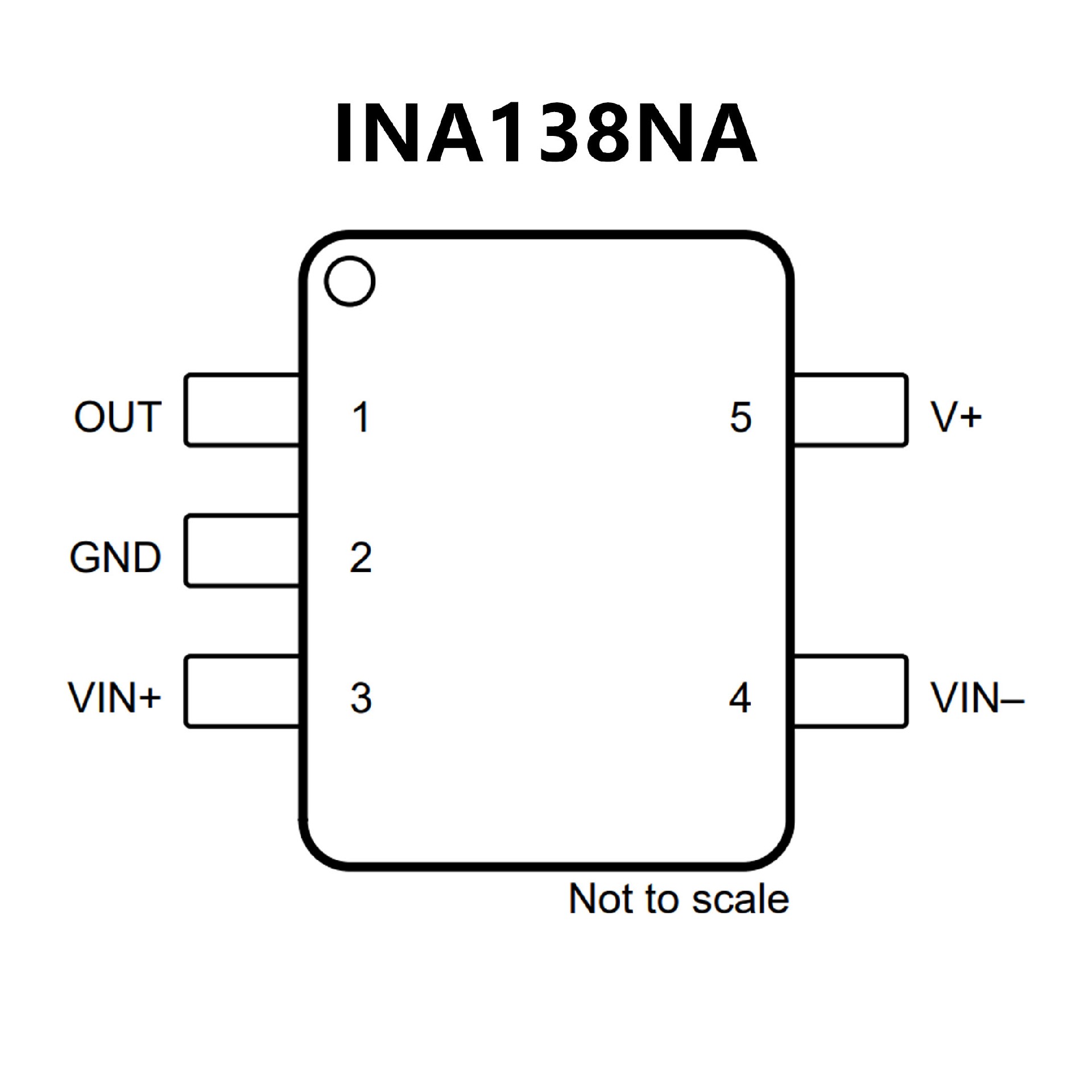

PIN CONFIGUTION
优势替代
FEATURES
• Complete Unipolar High-Side Current
Measurement Circuit
• Wide Supply and Common-Mode Range
• INA138: 2.7 V to 36 V
• INA168: 2.7 V to 60 V
• Independent Supply and Input Common-Mode
Voltages
• Single Resistor Gain Set
• Low Quiescent Current (25 μA Typical)
• Wide Temperature Range: –40°C to +125°C
• 5-Pin SOT-23 Package

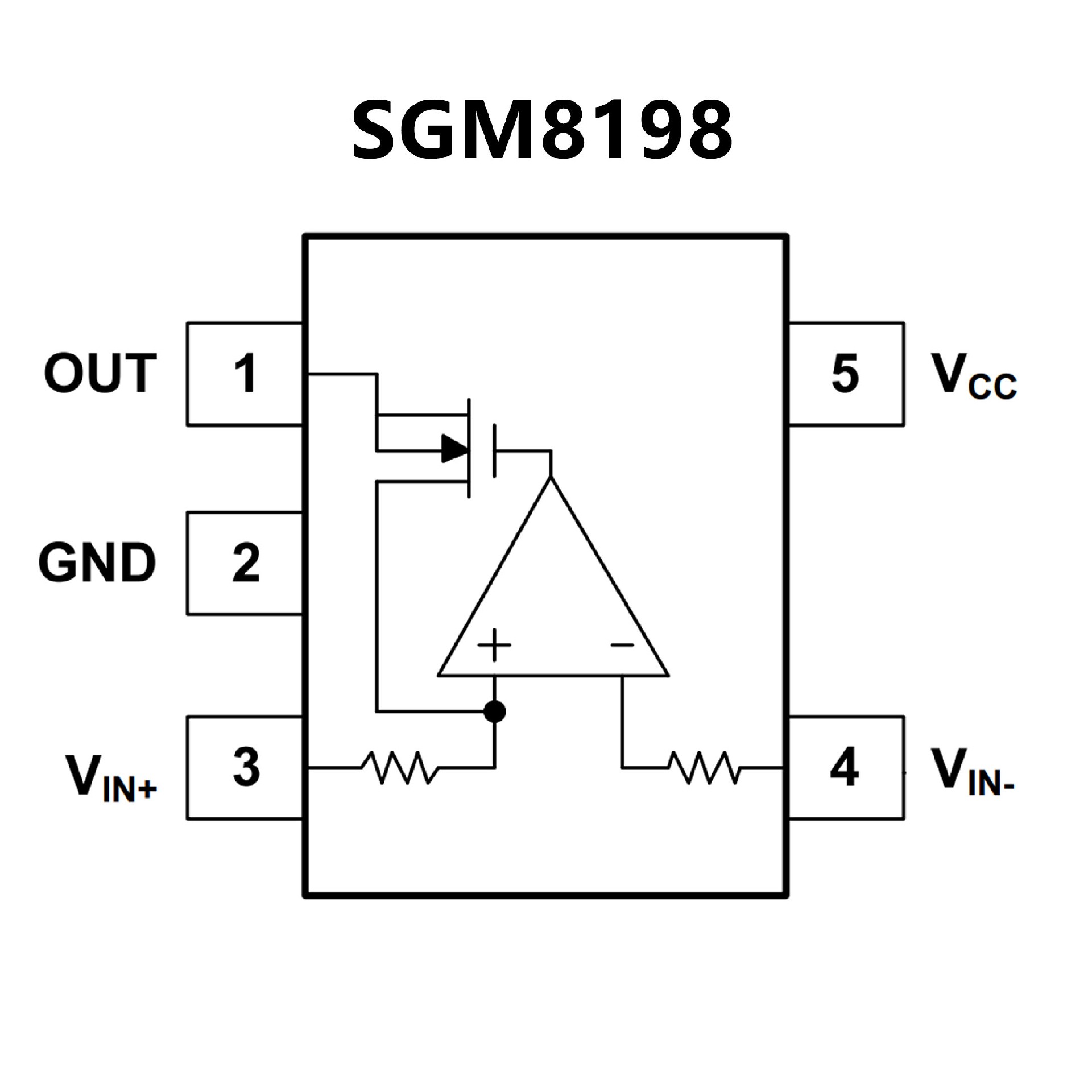

PIN CONFIGUTION
