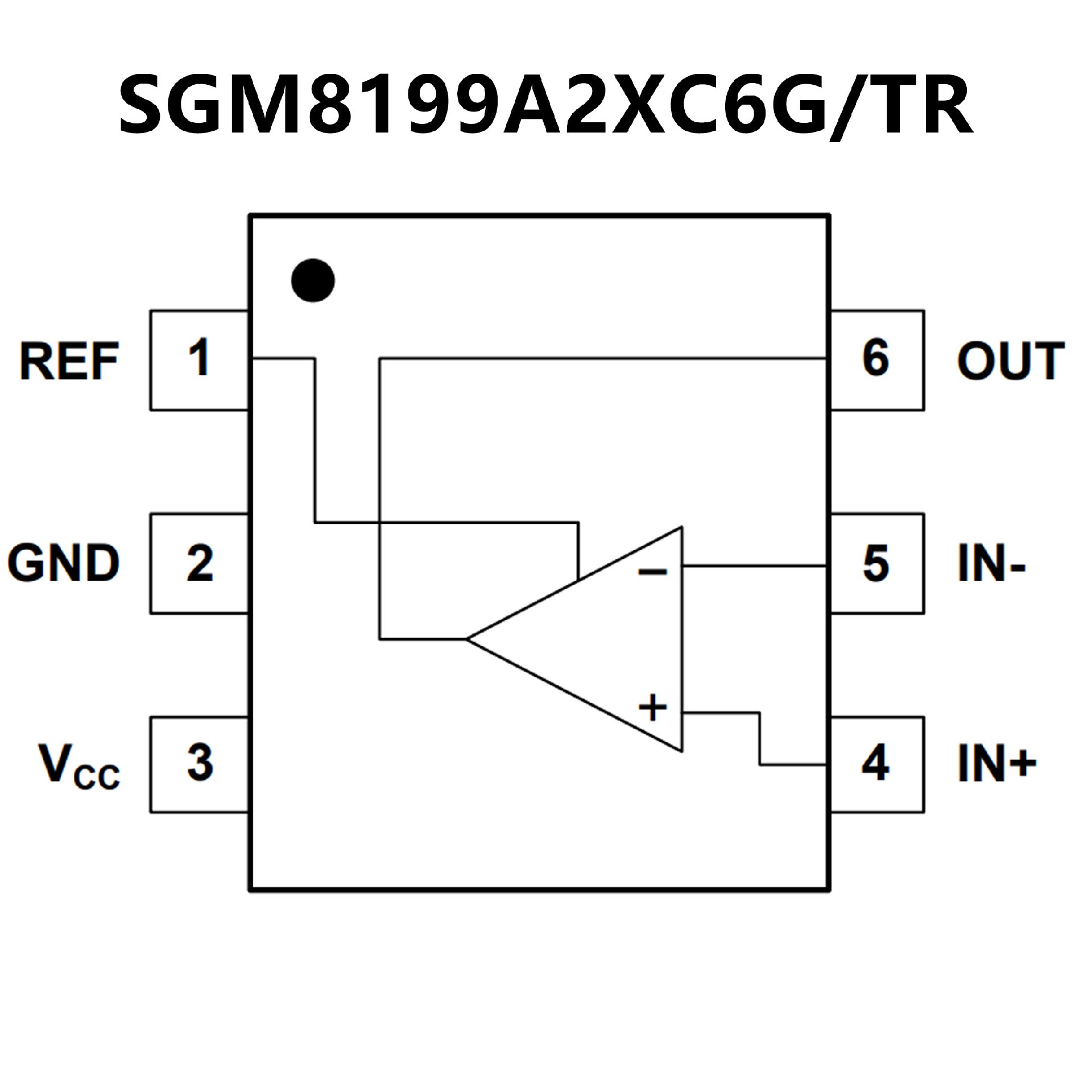

SGM8199A2XC6G.pdf• Wide Common Mode Range: -0.1V to 26V
• Input Offset Voltage
SGM8199A0: 600μV (VCM = 12V, MAX)
SGM8199A1: 350μV (VCM = 12V, MAX)
SGM8199A2: 250μV (VCM = 12V, MAX)
(Enables Shunt Drops of 10mV Full-Scale)
• Gain Error (Maximum Over Temperature)
SGM8199A0: ±0.7
SGM8199A1: ±0.4%
SGM8199A2: ±0.4%
• Choice of Gains:
SGM8199A0 Gain: 20V/V
SGM8199A1 Gain: 50V/V
SGM8199A2 Gain: 100V/V
• Quiescent Current: 85μA (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SC70-6 Package
• Wide common-mode range: -0.3V to 26V
• Offset voltage: 130µV (Max)
(Enable shunt drops of 10mV full-scale)
• Accuracy
±1.5% Gain error (Max over temperature)
0.5µV/°C Offset drift (Typ)
10ppm/°C Gain drift (Max)
• Choice of Gains:

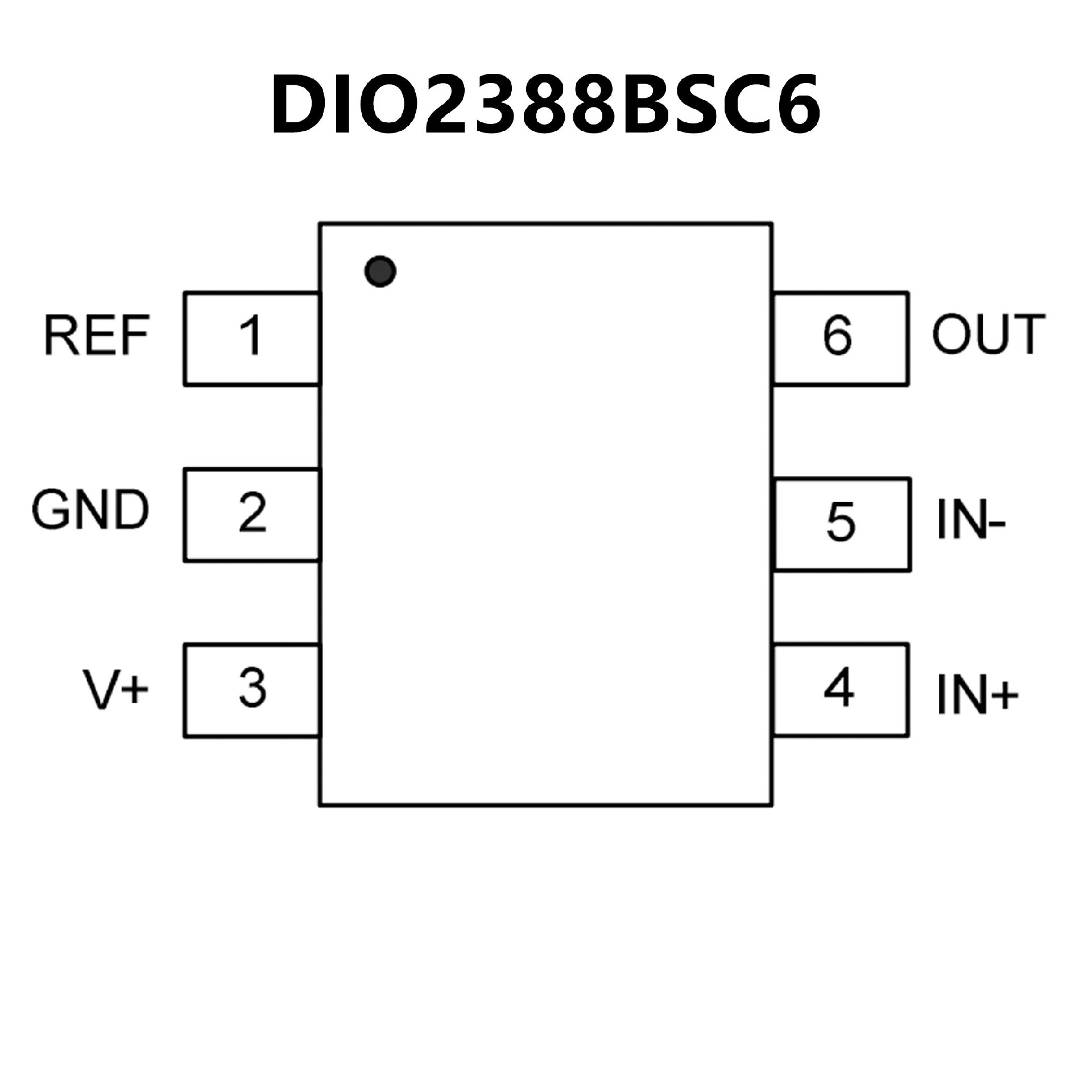

DIO2388A: 50V/V
DIO2388B: 100V/V
• Quiescent current: 100µA (Max)
• Packages: SC70-6, thin DQFN-10
