SGM820.pdf• High Accuracy Voltage Threshold (< 1%)
• Precision Under-Voltage Monitoring:
• Supports Common Rails of 1.8V, 2.5V, 3V, 3.3V and 5V
• 0.5% Typical Hysteresis
• Factory-Programmed Precision
Watchdog and Reset Timers:
• ±15% Accurate WDT and RST Delays
• User-Programmable Watchdog Timeout
• Input Voltage Range: 1.6V to 6.5V
• Low Supply Current: 1.2μA (TYP)
• Open-Drain Outputs
• Watchdog Disable Feature
• Manual Reset Input (nMR)
• -40℃ to +125℃ Operating Temperature Range

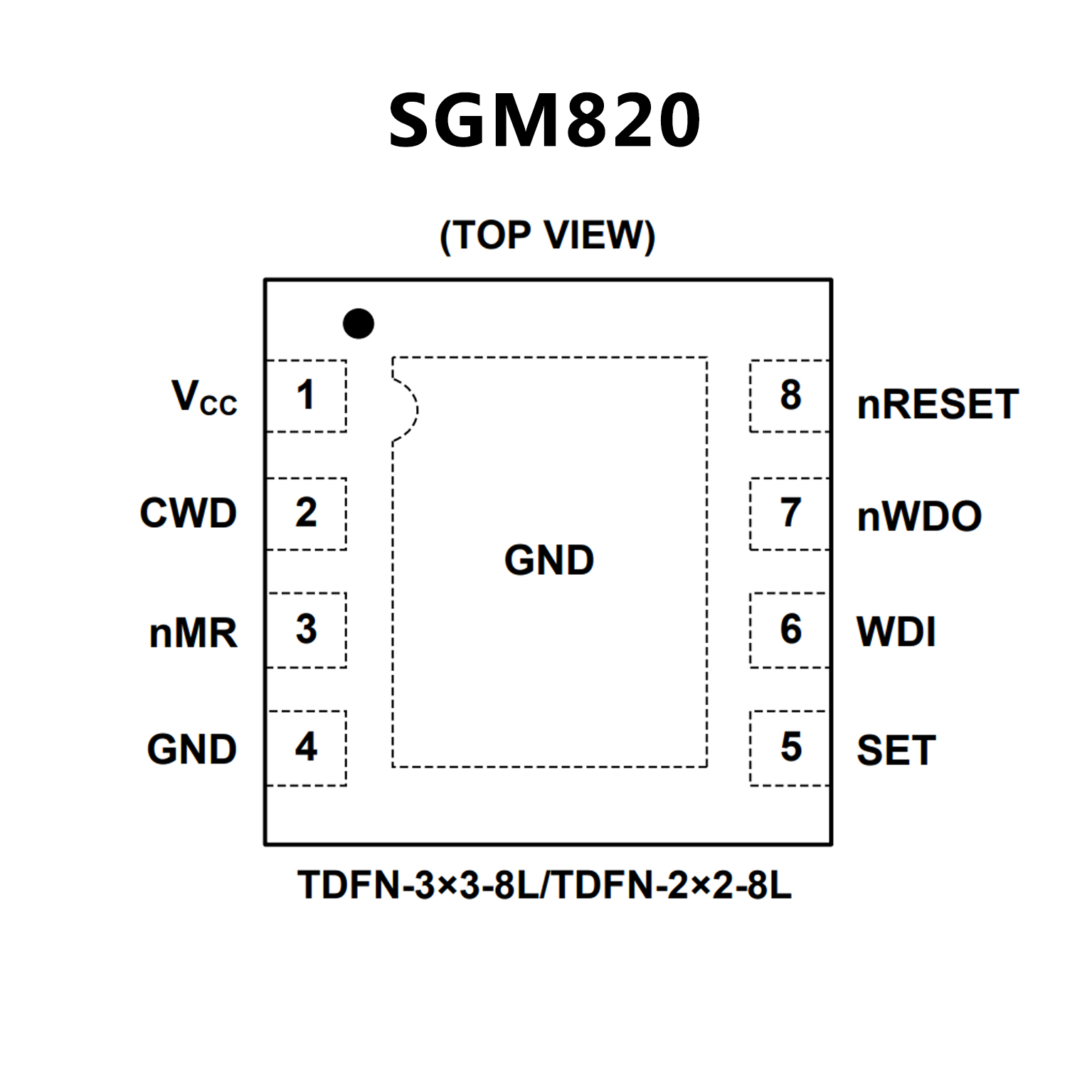

• Available in Green TDFN-3×3-8L and
TDFN-2×2-8L Packages

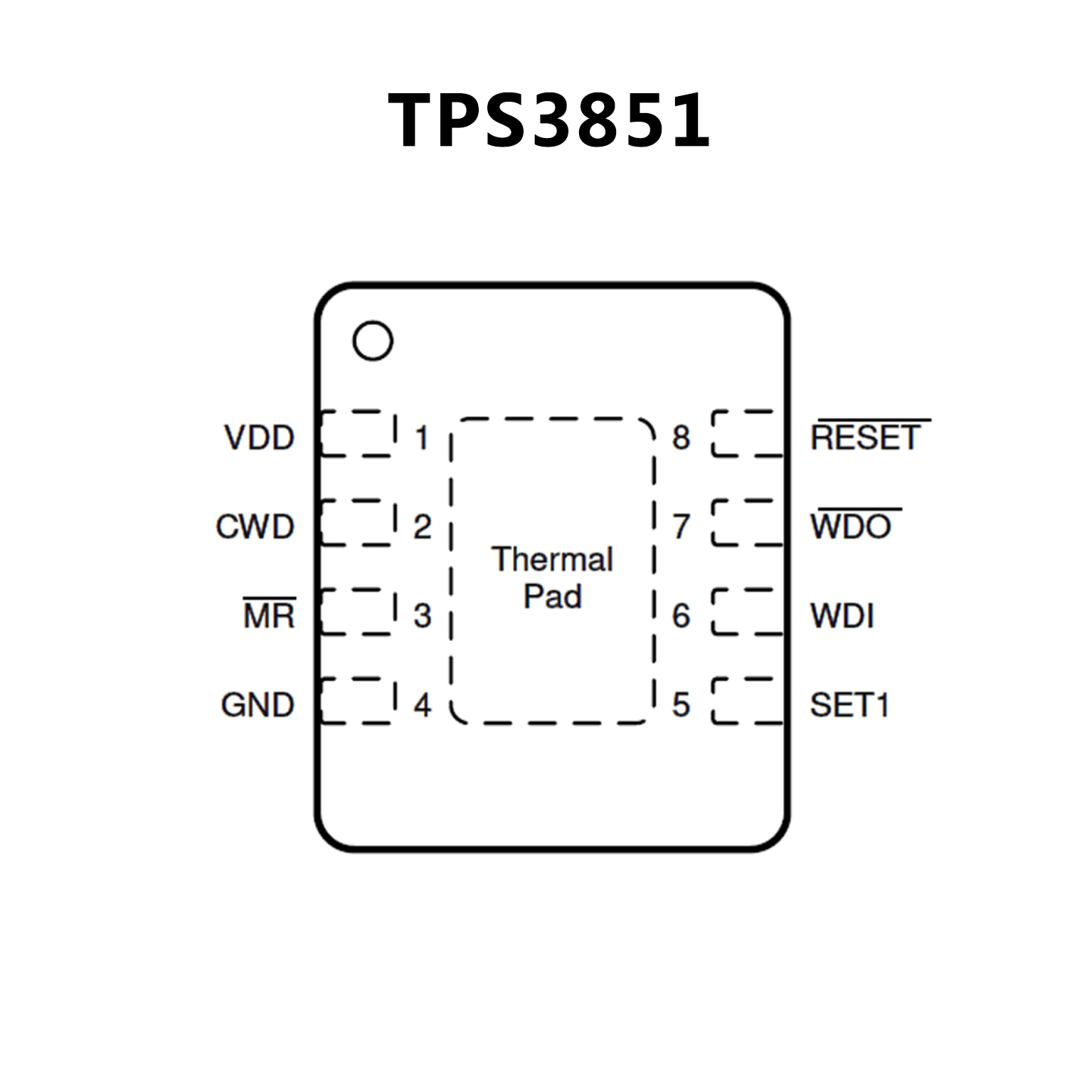

• Input voltage range: VDD = 1.6 V to 6.5 V
• 0.8% Voltage threshold accuracy
• Low quiescent current: IDD = 10 µA (typical)
• User-programmable watchdog timeout
• Open-drain outputs
• Precision undervoltage monitoring:
– Supports common rails from 1.8 V to 5.0 V
– 4% and 7% Undervoltage thresholds available
– 0.5% Hysteresis
• Watchdog disable feature
• Factory-programmed precision
watchdog and reset timers
• Manual reset input (MR)
• Available in a small 3-mm × 3-mm,
8-Pin VSON package
• Junction operating temperature range:
– 40°C to +125°C
