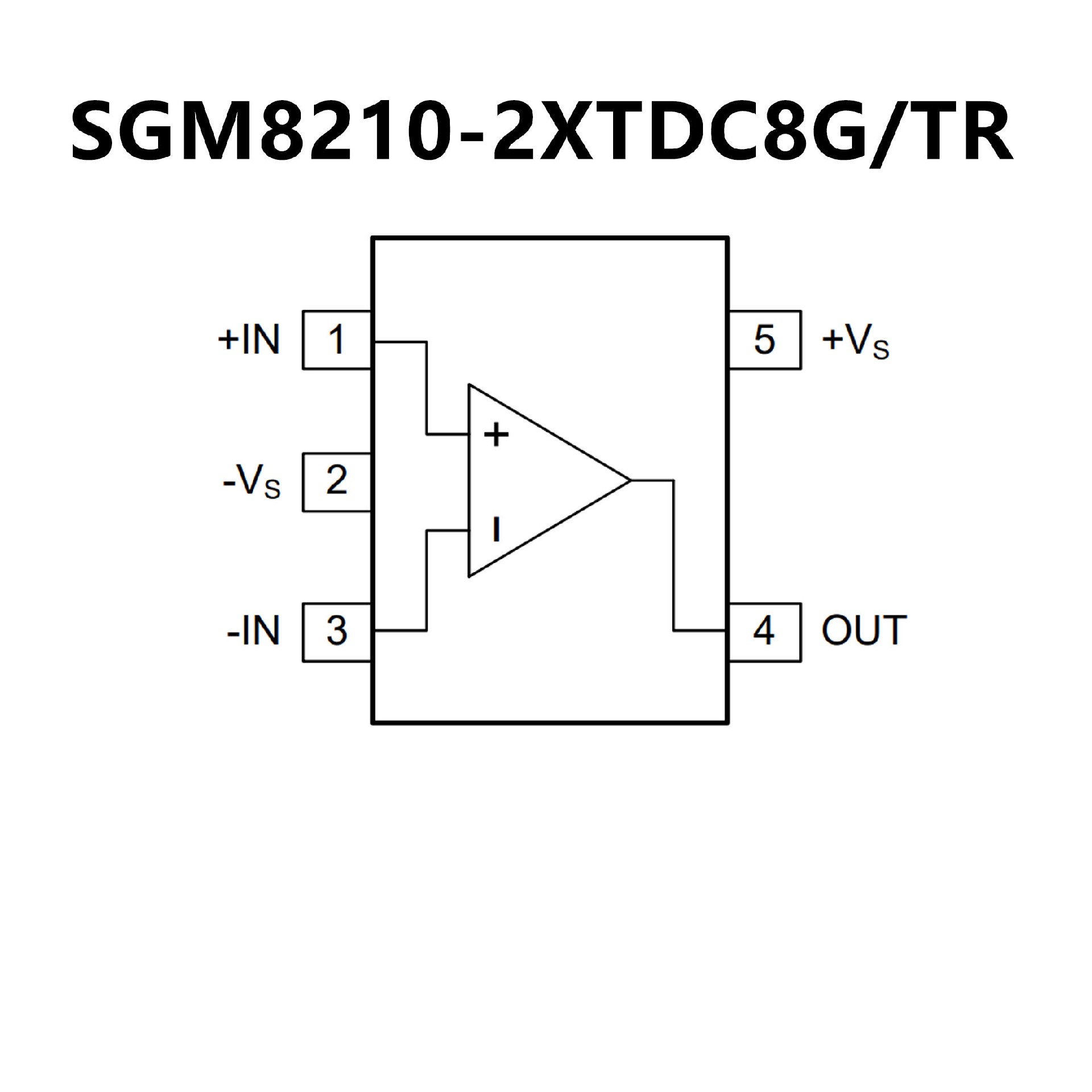

SGM8210-2.pdf• Low 0.1Hz to 10Hz Noise: 3μVP-P
• Wide Supply Voltage Range: 3.3V to 24V
• Low Power Consumption: 50μA/Amplifier (TYP)
• Low Offset Voltage: 1mV (MAX)
• Input Voltage Noise Density: 25nV/Hz at 1kHz
• Slew Rate: 0.3V/μs
• Rail-to-Rail Input and Output
• High DC Precision:
CMRR: 115dB
PSRR: 120dB
AOL: 120dB
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8210-1 Available in Green SOT-23-5
andSC70-5 Packages
SGM8210-2 Available in Green SOIC-8,
MSOP-8and TDFN-2×3-8L Packages
SGM8210-4 Available in a Green SOIC-14 Package

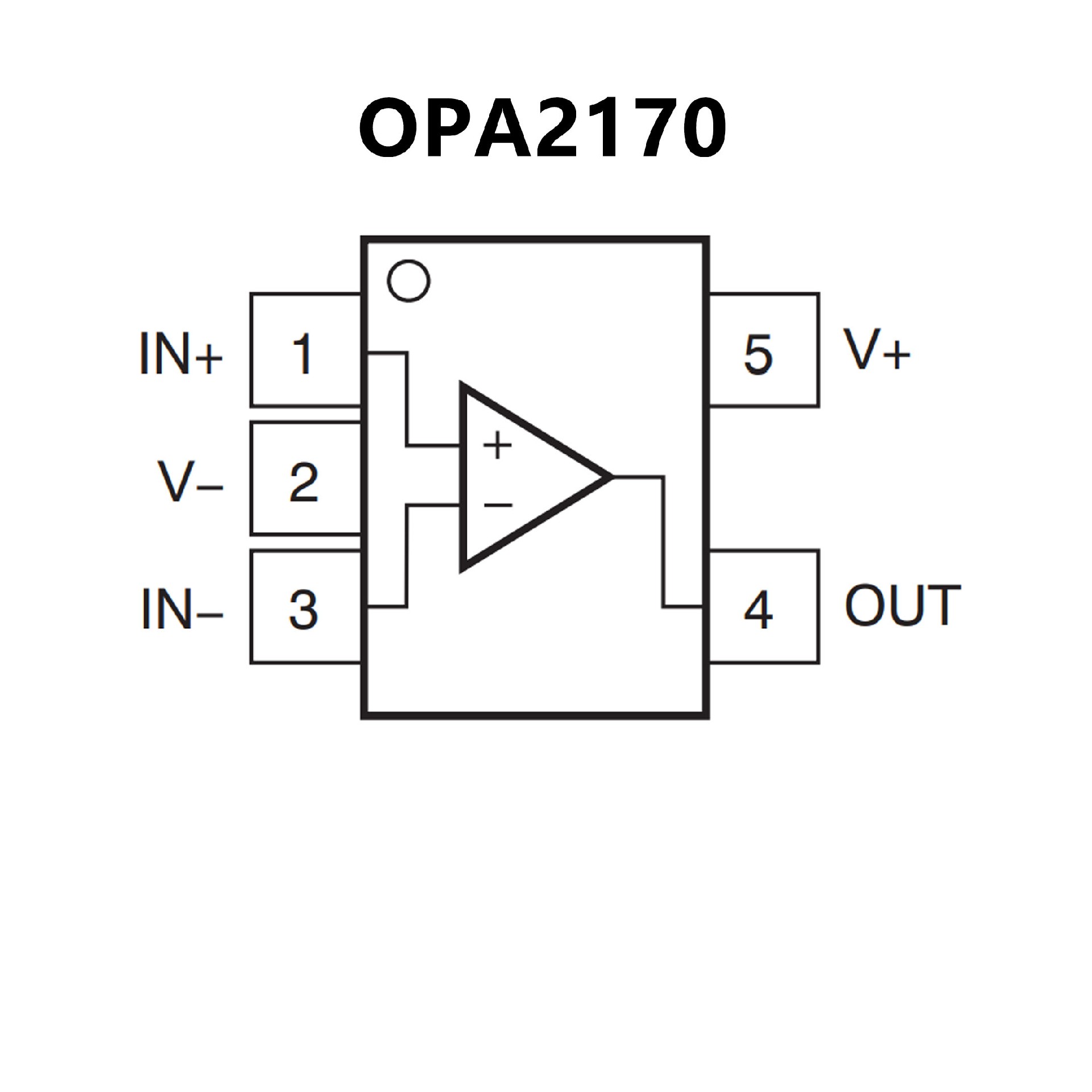

• Supply Range: +2.7V to +36V, ±1.35V to ±18V
• Low Noise: 19nV/√Hz
CRFI Filtered Inputs
• Input Range Includes the Negative Supply
• Input Range Operates to Positive Supply
• Rail-to-Rail Output
• Gain Bandwidth: 1.2MHz
• Low Quiescent Current: 110μA per Amplifier
• High Common-Mode Rejection: 120dB
• Low Bias Current: 15pA (max)
