SGM8212-1Q.pdf• AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
• Input Offset Voltage: ±1.8mV (MAX)
• Low Input Bias Current: ±10pA (TYP)
• High CMRR: 98dB (TYP)
• Unity-Gain Stable
• Gain-Bandwidth Product: 2.5MHz
• Phase Margin: 60° for G = +1 and CL = 10pF
• Low Noise: 18nV/√Hz at 1kHz
• Rail-to-Rail Input and Output
• Support Single or Dual Power Supplies:
2.7V to 36V or ±1.35V to ±18V
• Low Quiescent Current: 530μA/Amplifier
• Small Packaging:

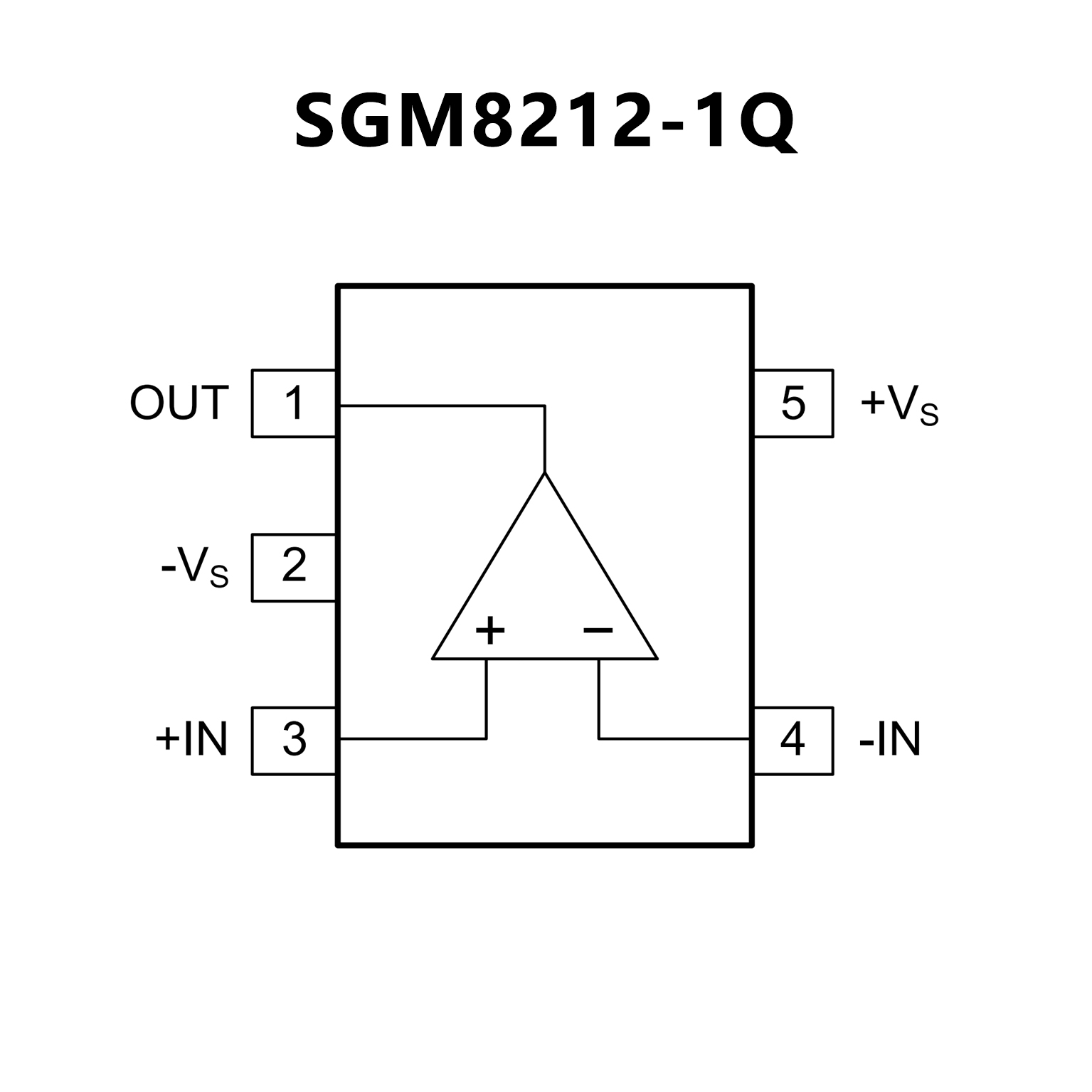

SGM8212-1Q Available in a Green SOT-23-5 Package
SGM8212-2Q Available in a Green SOIC-8 Package
• Qualified for Automotive Applications
Device Temperature Grade 1:
40°C to +125°C Ambient Operating Temperature
Device HBM ESD Classification Level:

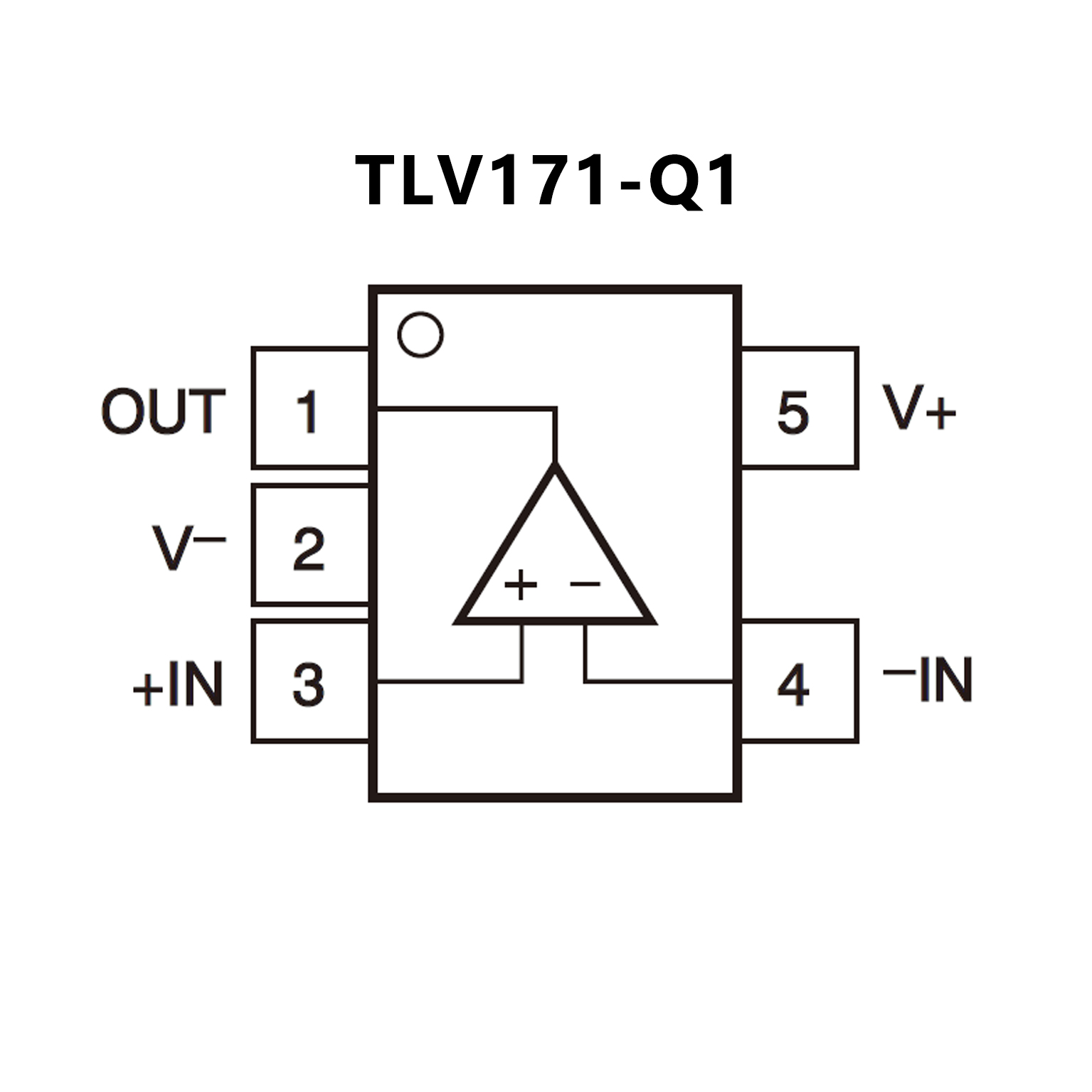

Level 3A for TLV171-Q1 and TLV2171-Q1
Level 2 for TLV4171-Q1
Device CDM ESD Classification Level
Level C4A for TLV171-Q1
Level C6 for TLV2171-Q1and TLV4171-Q1
Single-Supply: 4.5 V to 36 V
Dual-Supply ±2.25 V to ±18 V
• Low Noise: 16 nV/√Hz at 1 kHz
• Low Offset Drift: ±1 µV/°C (Typical)
• Input Range Includes Negative Supply
• Input Range Operates to Positive Supply With
• Rail-to-Rail Output
• Gain Bandwidth: 3 MHz
• Low Quiescent Current: 525 µA per Amplifier
• Common-Mode Rejection: 120 dB (Typical)
• Low Input Bias Current: 10 pA
• Offset Voltage vs Common-Mode Voltage: VSUPPLY
