SGM8212-2.pdf• Input Offset Voltage: 1.8mV (MAX)
• Low Input Bias Current: 5pA (TYP)
• High CMRR: 98dB (TYP)
• Unity-Gain Stable
• Gain-Bandwidth Product: 2.5MHz
• Phase Margin: 60° for G = 1 and CL = 10pF
• Low Noise: 15nV/√Hz at 1kHz
• Rail-to-Rail Input and Output
• Support Single or Dual Power Supplies:
2.7V to 36V or ±1.35V to ±18V
• Low Quiescent Current: 475μA/Amplifier
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8212-1 Available in Green
SOT-553-5, SOT-23-5and SOIC-8 Packages
SGM8212-2 Available in Green
SOIC-8 andTDFN-3×3-8L Packages
• (Typical Unless Otherwise Noted)

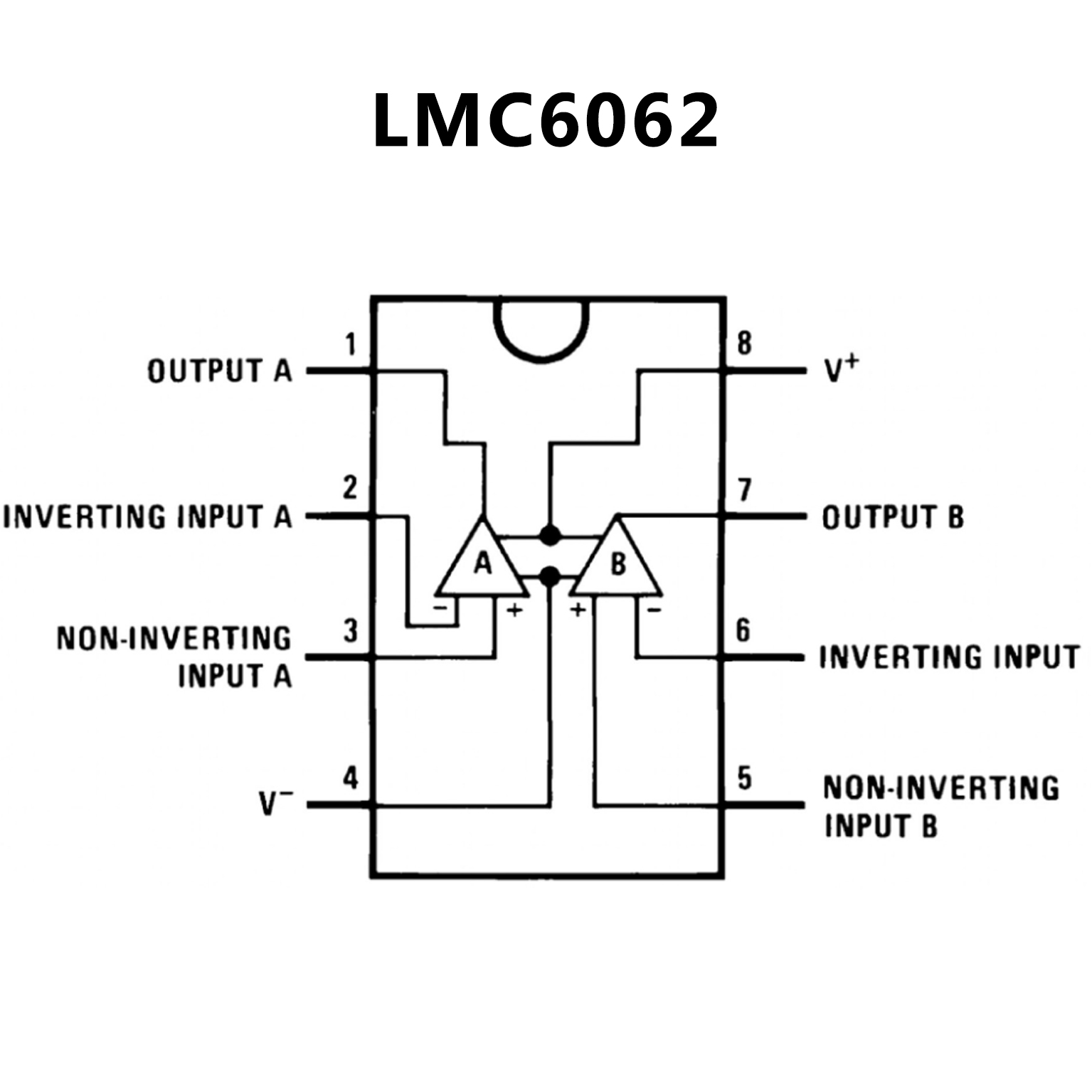

• Low Offset Voltage 100μV
• Ultra Low Supply current 16μA/Amplifier
• Operates from 4.5V to 15V Single Supply
• Ultra Low Input Bias Current 10fA
• Output Swing within 10mV of Supply Rail, 100k Load
• Input Common-Mode Range Includes V−
• High Voltage Gain 140dB
• Improved Latchup Immunity
