SGM8249-2.pdf• Low Offset Voltage: 10μV (MAX)
• Rail-to-Rail Output Swing
• Support Single or Dual Power Supplies:
4.5V to 36V or ±2.25V to ±18V
• Open-Loop Voltage Gain: 150dB (TYP)
• PSRR: 150dB (TYP)
• CMRR: 140dB (TYP)
• Input Voltage Noise Density: 10nV/Hz at 1kHz
• Gain-Bandwidth Product: 8MHz
• Low Supply Current: 0.85mA/Amplifier (TYP)
• Overload Recovery Time: 0.7μs
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8249-1 Available in Green
SOT-23-5 andSOIC-8 Packages

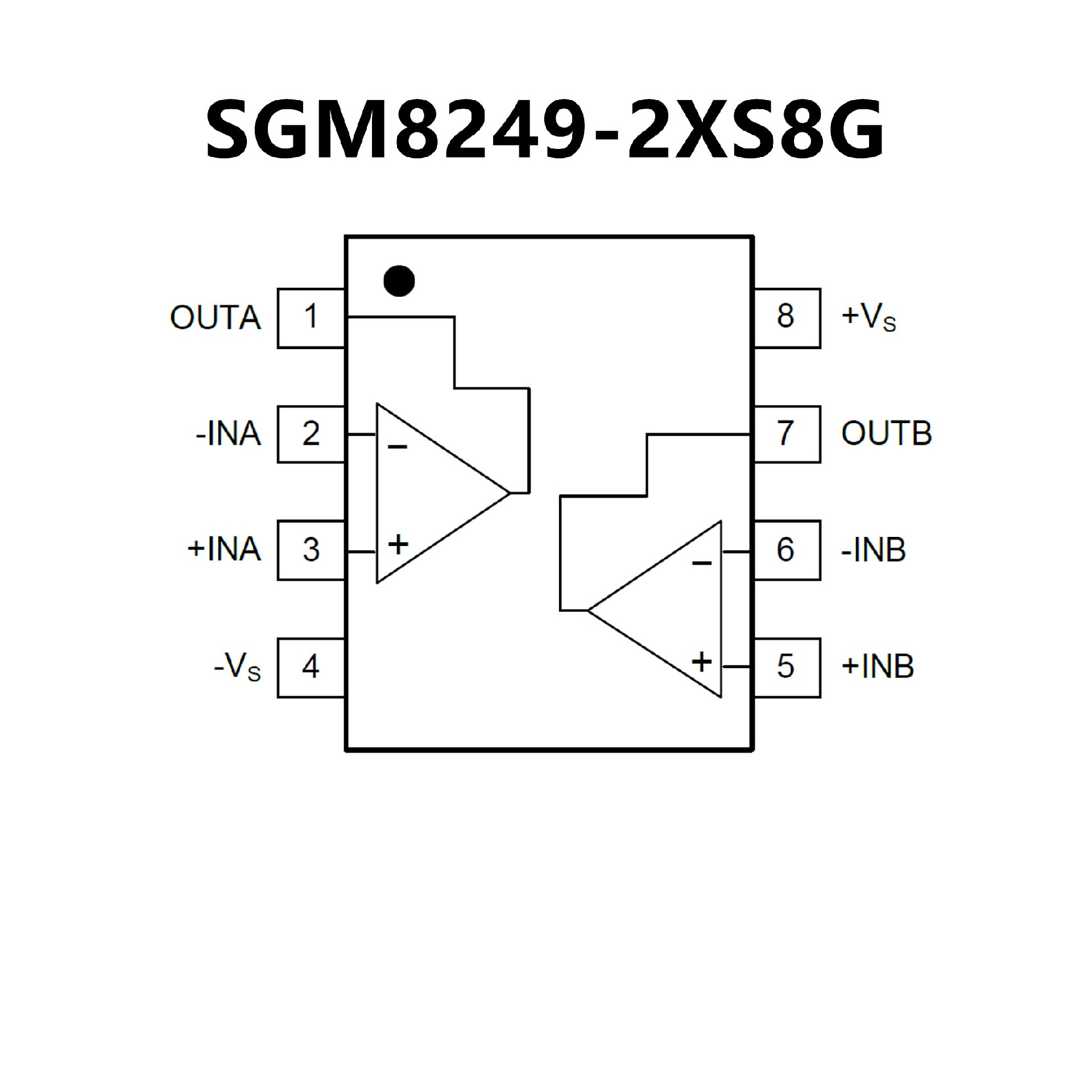

SGM8249-2 Available in a Green SOIC-8 Package
• Low Offset Voltage: ±5μV
• Low Offset Voltage Drift: ±0.2μV/°C
• Low Noise: 5.5nV/√Hz at 1kHz
• Wide Bandwidth: 10MHz GBW (G = 100)
• High Slew Rate : 20V/μs
• Low Quiescent Current: 1mA per Amplifier
• Rail-to-Rail Input and Output
• Wide Supply: ±2.25V to ±18V, +4.5V to +36V
• EMI/RFI Filtered Inputs
• High Common-Mode Rejection: 140 dB
• Low Bias Current: ±5pA
• Differential Input Voltage Range to Supply Rail
• High Capacitive Load Drive Capability: 1nF
