SGM8249-2.pdf• Low Offset Voltage: 10μV (MAX)
• Rail-to-Rail Output Swing
• Support Single or Dual Power Supplies:
4.5V to 36V or ±2.25V to ±18V
• Open-Loop Voltage Gain: 150dB (TYP)
• PSRR: 150dB (TYP)
• CMRR: 140dB (TYP)
• Input Voltage Noise Density: 10nV/Hz at 1kHz
• Gain-Bandwidth Product: 8MHz
• Low Supply Current: 0.85mA/Amplifier (TYP)
• Overload Recovery Time: 0.7μs
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8249-1 Available in Green SOT-23-5
and SOIC-8 Packages

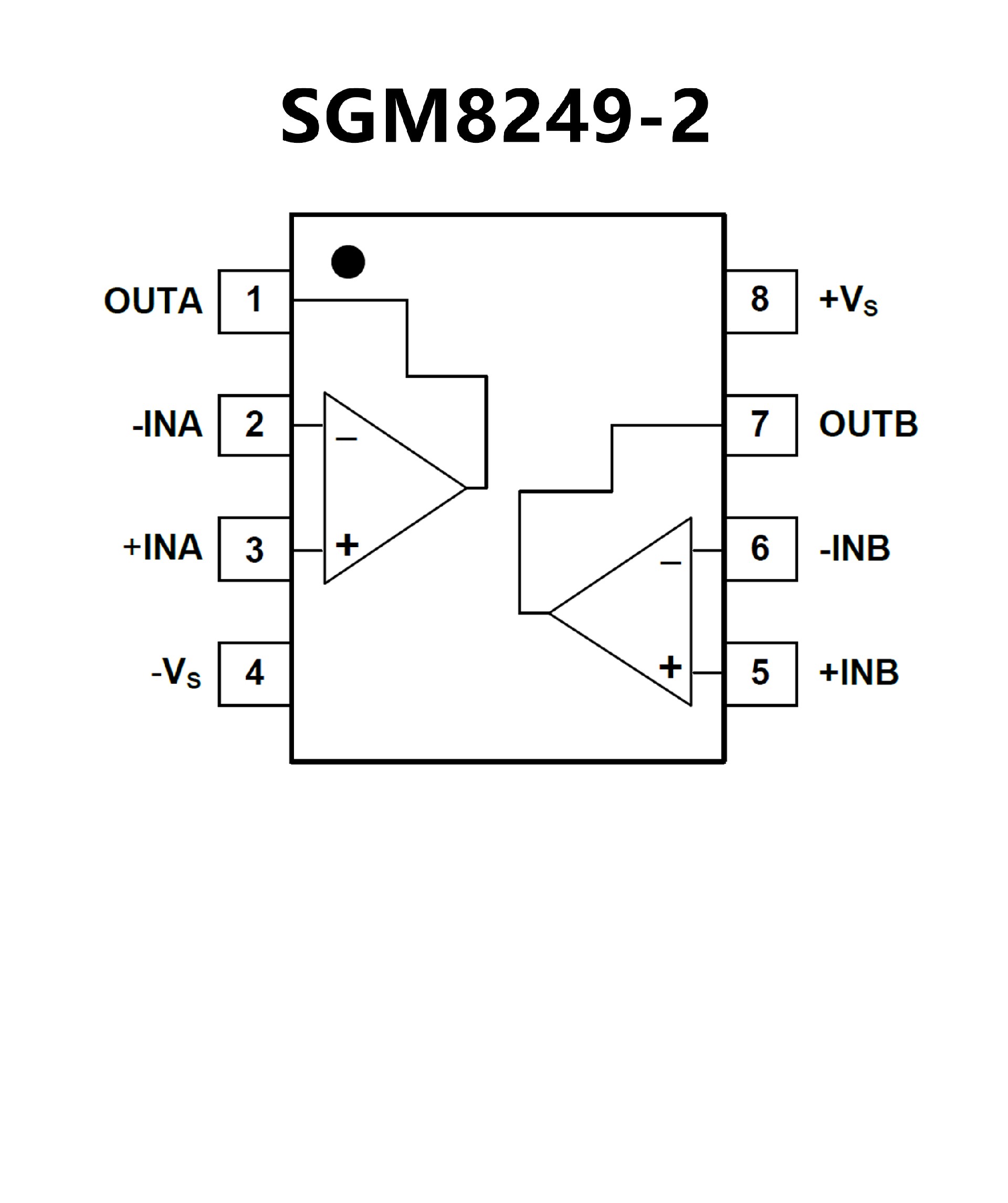

SGM8249-2 Available in a Green SOIC-8 Package
• Supply Voltage: 3V to 36V
• Differential Input Voltage
Range to Supply Rail
• Input Rail to –VS, Rail to Rail Output
• Fast Response: 10 MHz Bandwidth,
8V/μs Slew Rate,
100ns Overload Recovery
• Low Offset Voltage:
±3mV Maximum at 25°C,
±3.5mV Maximum at -40°C to 85°C
±4mV Maximum at -40°C to 125°C
• Very Low THD+N: 0.0007% at Gain = 1, 20kHz
• Excellent EMIRR: 58dB at 900MHz
• 2KV HBM, 1KV CDM, 150mA Latch Up
• –40°C to 125°C Operation
Temperature Range
