8MHz, High Voltage, High Precision, Low Noise, Rail-to-Rail Output Operational Amplifier.
SGM8249-4
SGM8249-4.pdf
SGM8249-4.pdfFEATURES
• Low Offset Voltage: 2μV (TYP), 12μV (MAX)
• Rail-to-Rail Output Swing
• Support Single or Dual Power Supplies:
4.5V to 36V or ±2.25V to ±18V
• Open-Loop Voltage Gain: 150dB (TYP)
• PSRR: 150dB (TYP)
• CMRR: 140dB (TYP)
• Input Voltage Noise Density: 12nV/ Hz at 1kHz
• Gain-Bandwidth Product: 8MHz
• Low Supply Current: 3.2mA (TYP)
• Overload Recovery Time: 0.7μs
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-14 and TSSOP-14 Packages

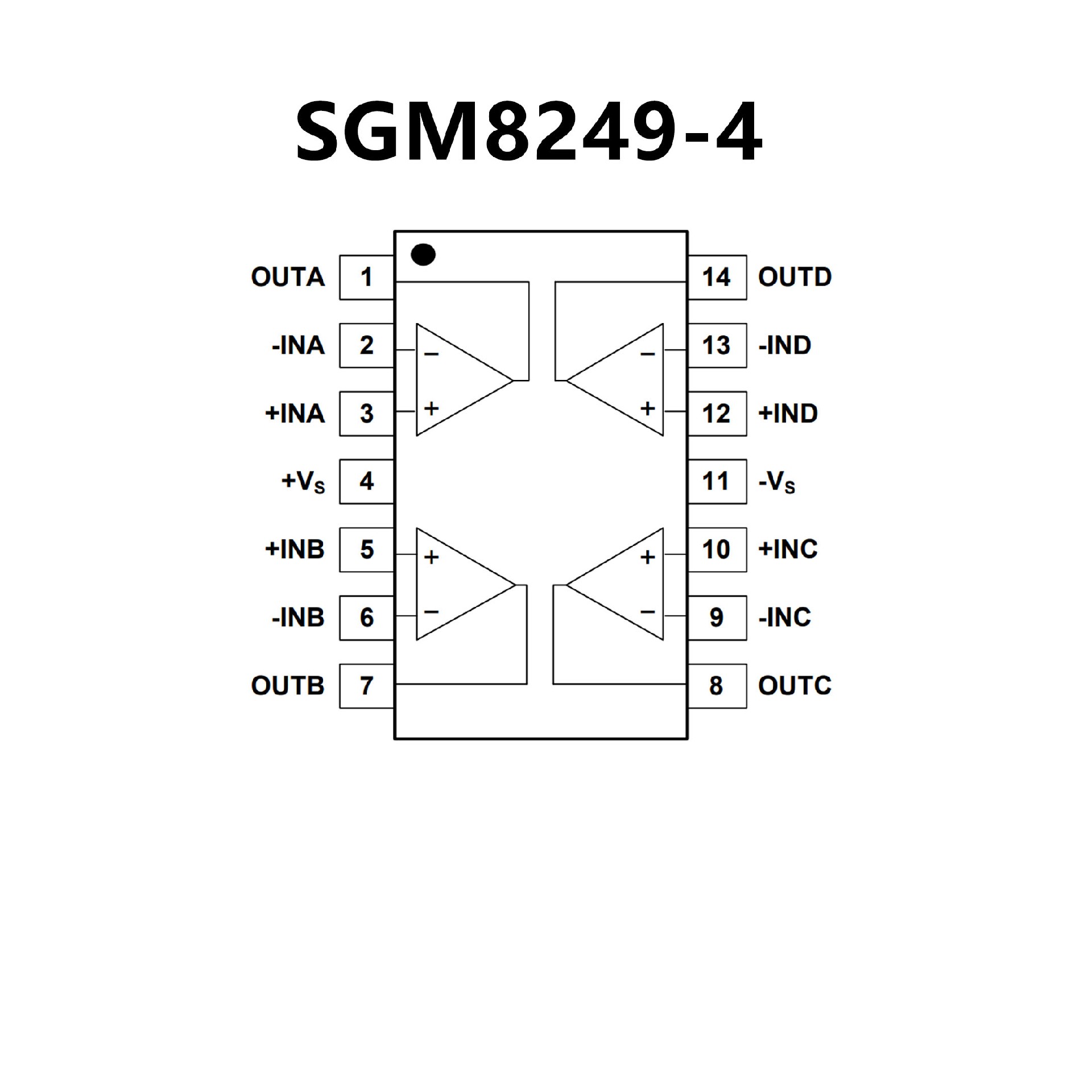

PIN CONFIGUTION
优势替代
FEATURES
• 2.7V至20V供电范围
• 集成EMI滤波器
• 室温下，输入失调电压为6µV (最大值)
• TCVOS为19nV/°C (最大值)
• 5.9nV/√Hz 低输入参考电压噪声
• 0.1Hz至10Hz范围内噪声为123nVP-P
• 400ns快速建立时间
• 10MHz增益带宽积
• 满摆幅输出
• 高精度，适用于精密信号采集系统

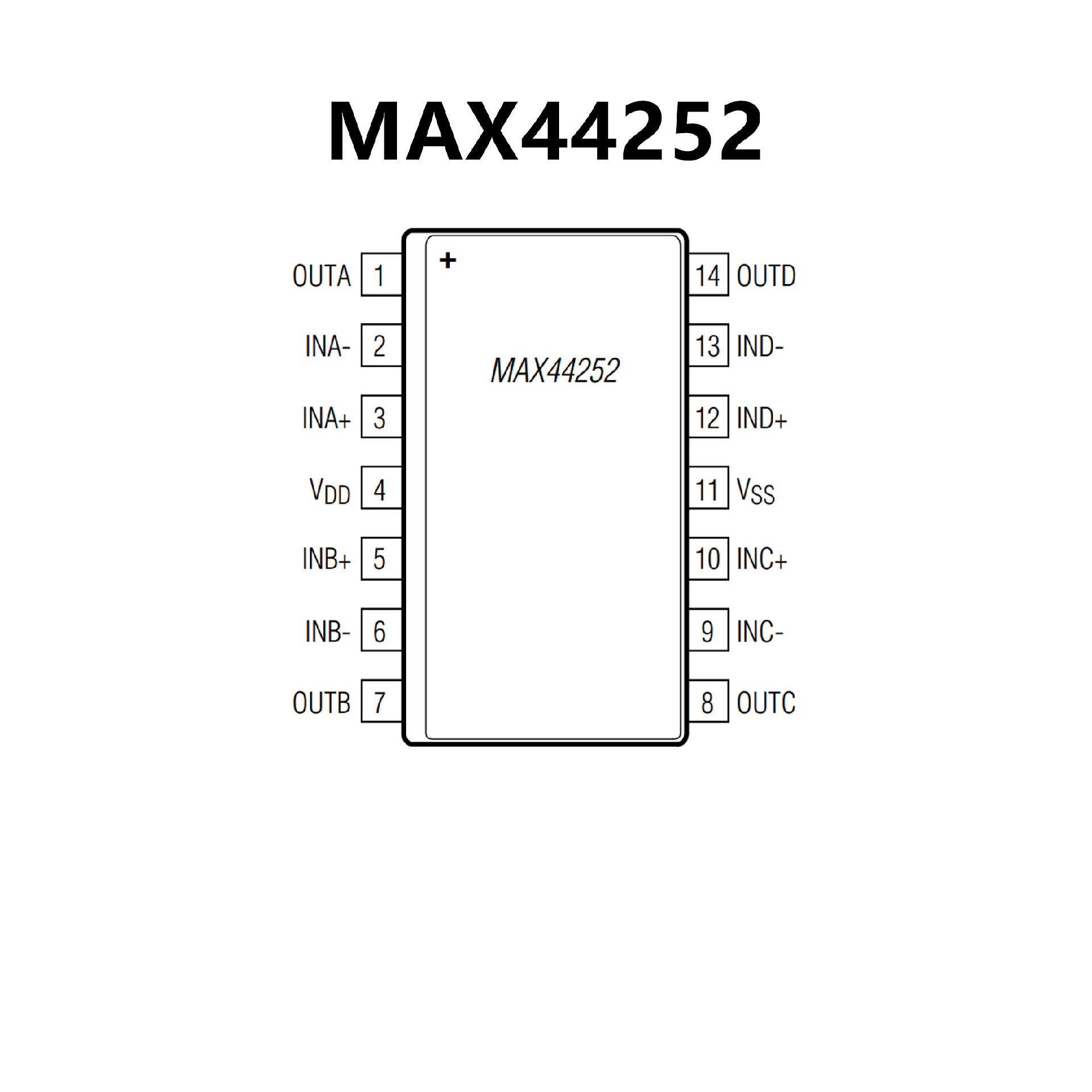

PIN CONFIGUTION
