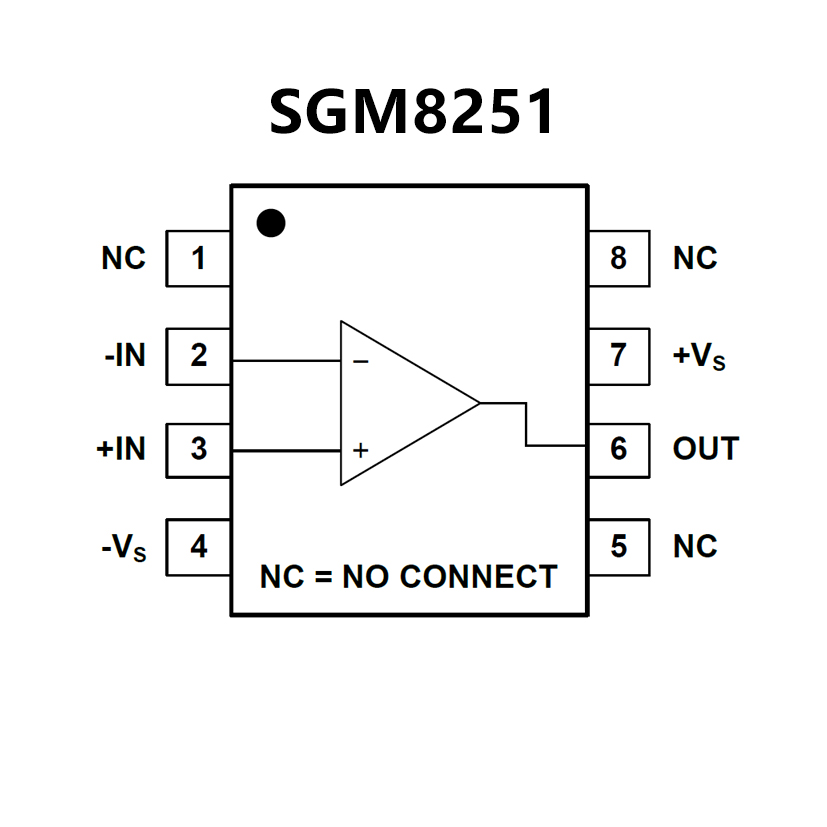

SGM8251.pdf• Low Offset Voltage: 18μV (MAX)
• Rail-to-Rail Output Swing
• 4.5V to 36V Single Supply Operation
• Open-Loop Voltage Gain: 150dB (TYP)
• PSRR: 150dB (TYP)
• CMRR: 135dB (TYP)
• 0.1Hz to 10Hz Noise: 0.4μVP-P
• Input Voltage Noise Density: 20nV/Hz at 1kHz
• Gain-Bandwidth Product: 2.8MHz
• Low Supply Current: 450μA (TYP)
• Overload Recovery Time: 3μs
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOT-23-5, SOIC-8 and
MSOP-8 Packages

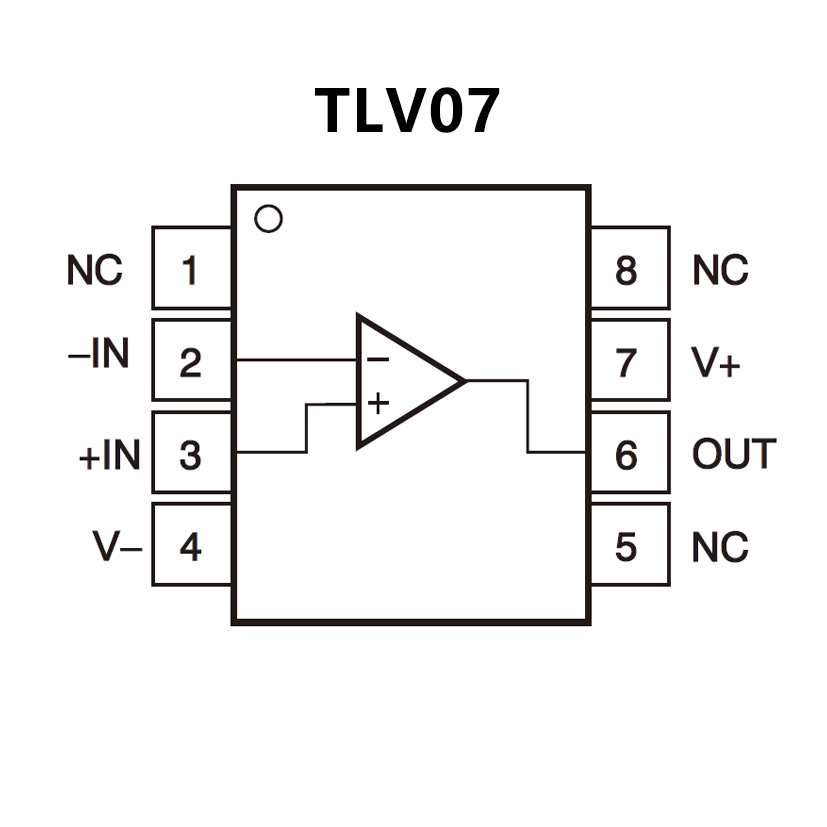

• Low Offset Voltage: 100 μV (Maximum)
• Rail-to-Rail Output
• Low Noise: 19 nV / √Hz
• Unity-Gain Stable
• RFI Filtered Inputs
• Input Range Includes Negative Supply
• Rail-to-Rail Output
• Gain Bandwidth: 1 MHz
• Low Quiescent Current: 930 μA
• Full Industrial Temperature Range:
–40°C to +125°C
• Offered in the Industry-Standard 8-Pin SOIC
Package
