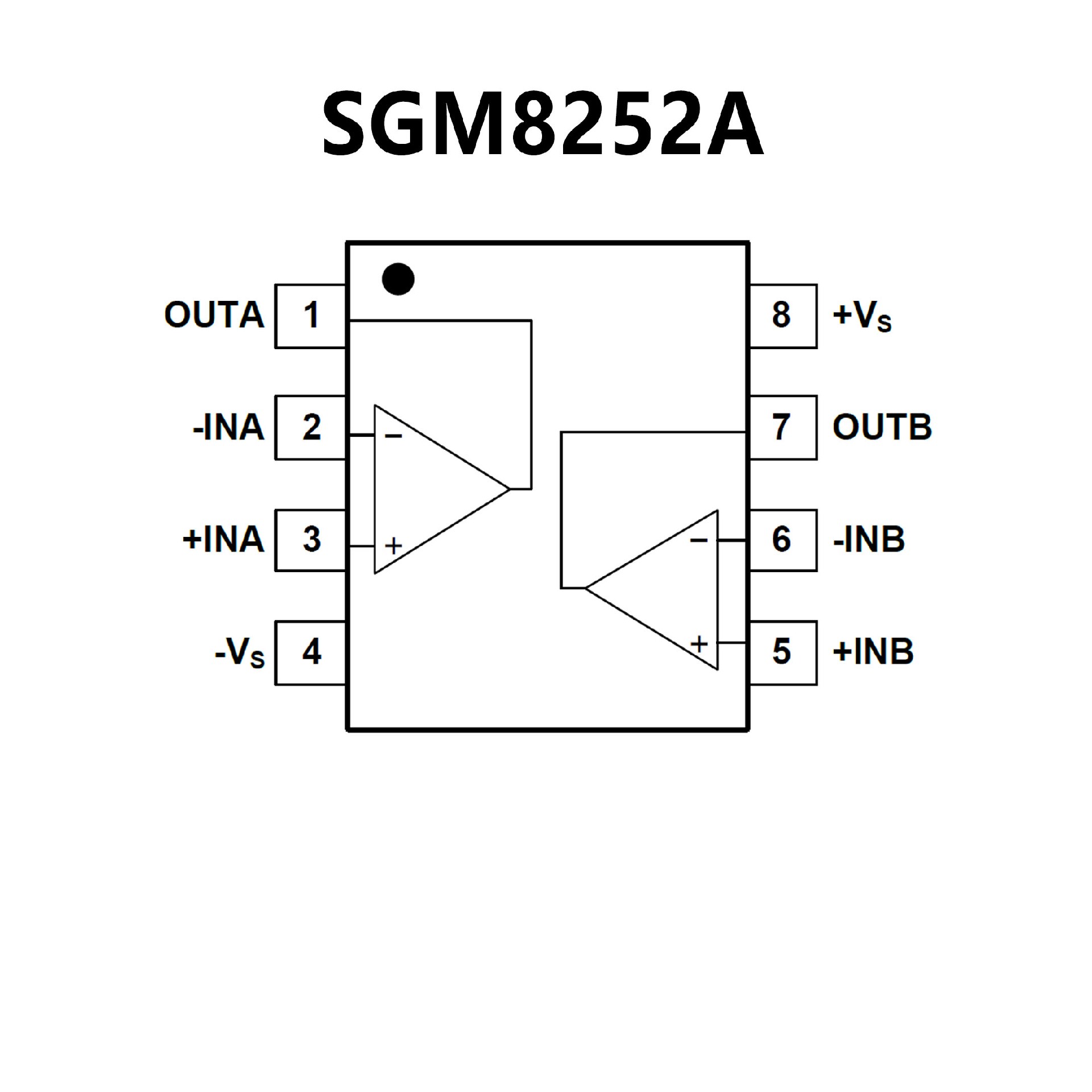

SGM8252A.pdf• Low Offset Voltage: 18μV (MAX)
• Rail-to-Rail Output Swing
• 4.5V to 36V Single Supply Operation
• Open-Loop Voltage Gain: 150dB (TYP)
• PSRR: 150dB (TYP)
• CMRR: 135dB (TYP)
• 0.1Hz to 10Hz Noise: 0.4μVP-P
• Input Voltage Noise Density: 20nV/Hz at 1kHz
• Gain-Bandwidth Product: 2.8MHz
• Low Supply Current: 450μA/Amplifier (TYP)
• Overload Recovery Time: 3μs
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages

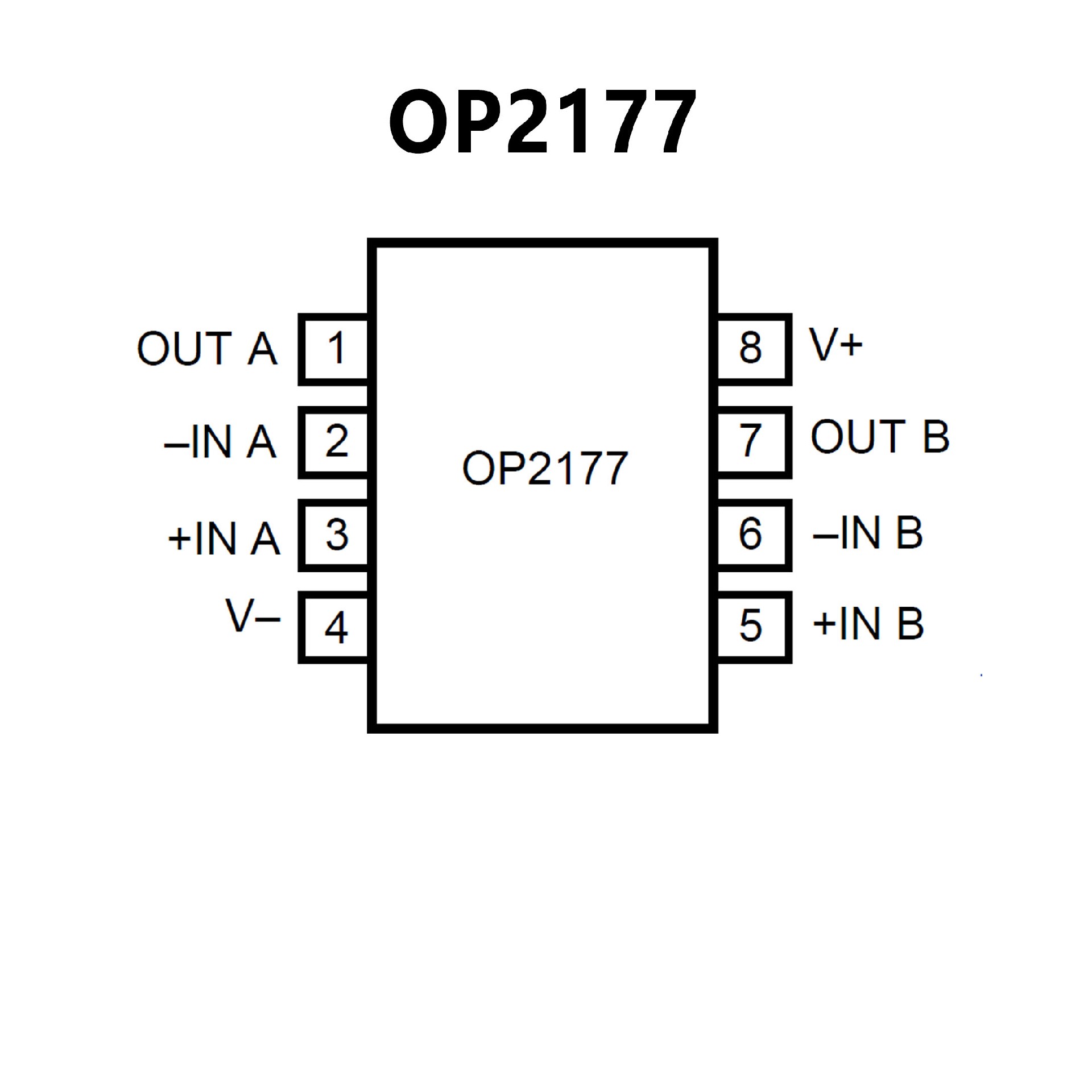

• Low offset voltage: 60 μV maximum Very low
offset voltage drift: 0.7 μV/°C maximum
• Low input bias current: 2 nA maximum
• Low noise: 8 nV/√Hz typical CMRR, PSRR,
and AVO > 120 dB minimum
• Low supply current: 400 μA per amplifier
• Dual supply operation: ±2.5 V to ±15 V
• Unity-gain stable
• No phase reversal
• Inputs internally protected beyond supply voltage
