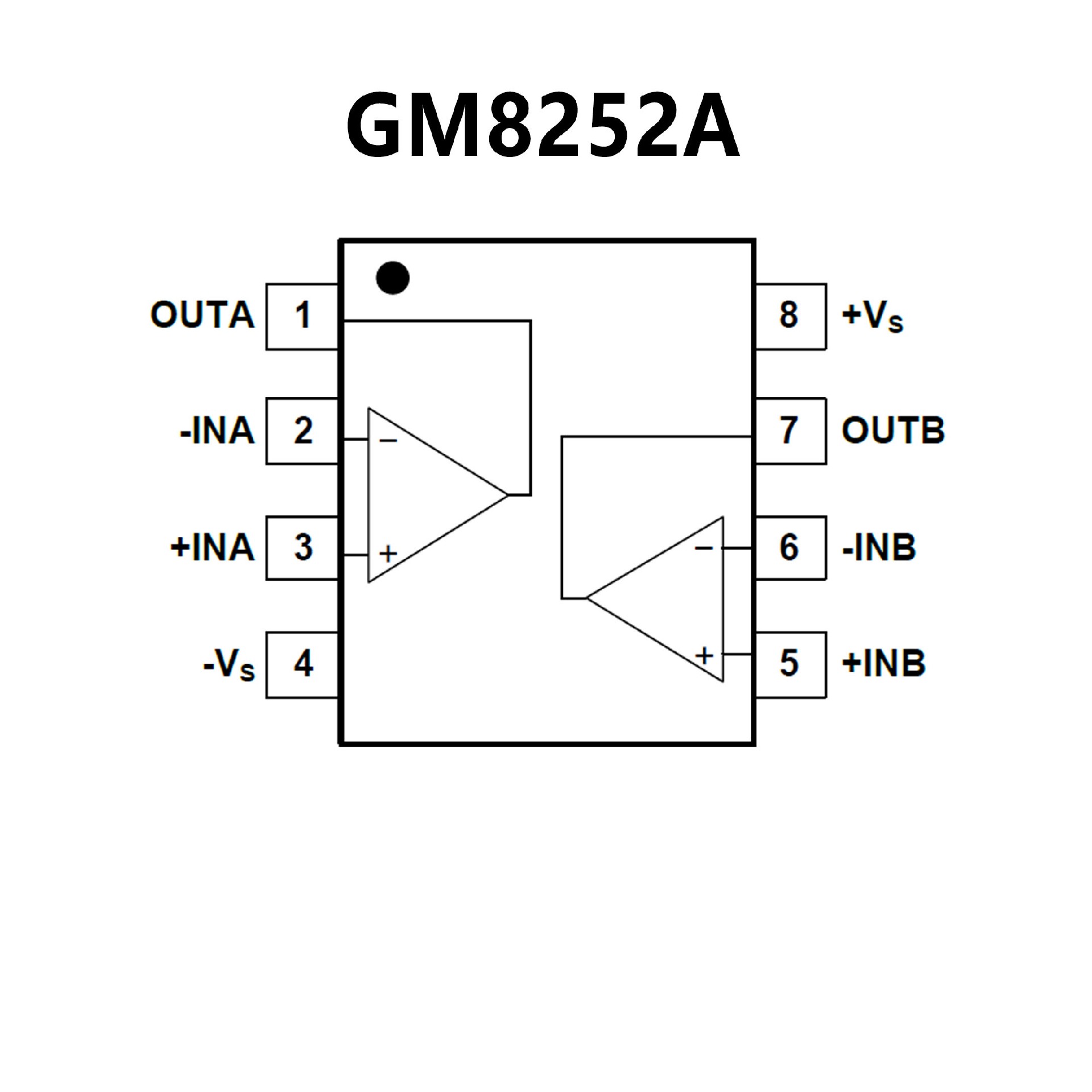

SGM8252A.pdf• Low Offset Voltage: 18μV (MAX)
• Rail-to-Rail Output Swing
• 4.5V to 36V Single Supply Operation
• Open-Loop Voltage Gain: 150dB (TYP)
• PSRR: 150dB (TYP)
• CMRR: 135dB (TYP)
• 0.1Hz to 10Hz Noise: 0.4μVP-P
• Input Voltage Noise Density: 20nV/Hz at 1kHz
• Gain-Bandwidth Product: 2.8MHz
• Low Supply Current: 450μA/Amplifier (TYP)
• Overload Recovery Time: 3μs
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages

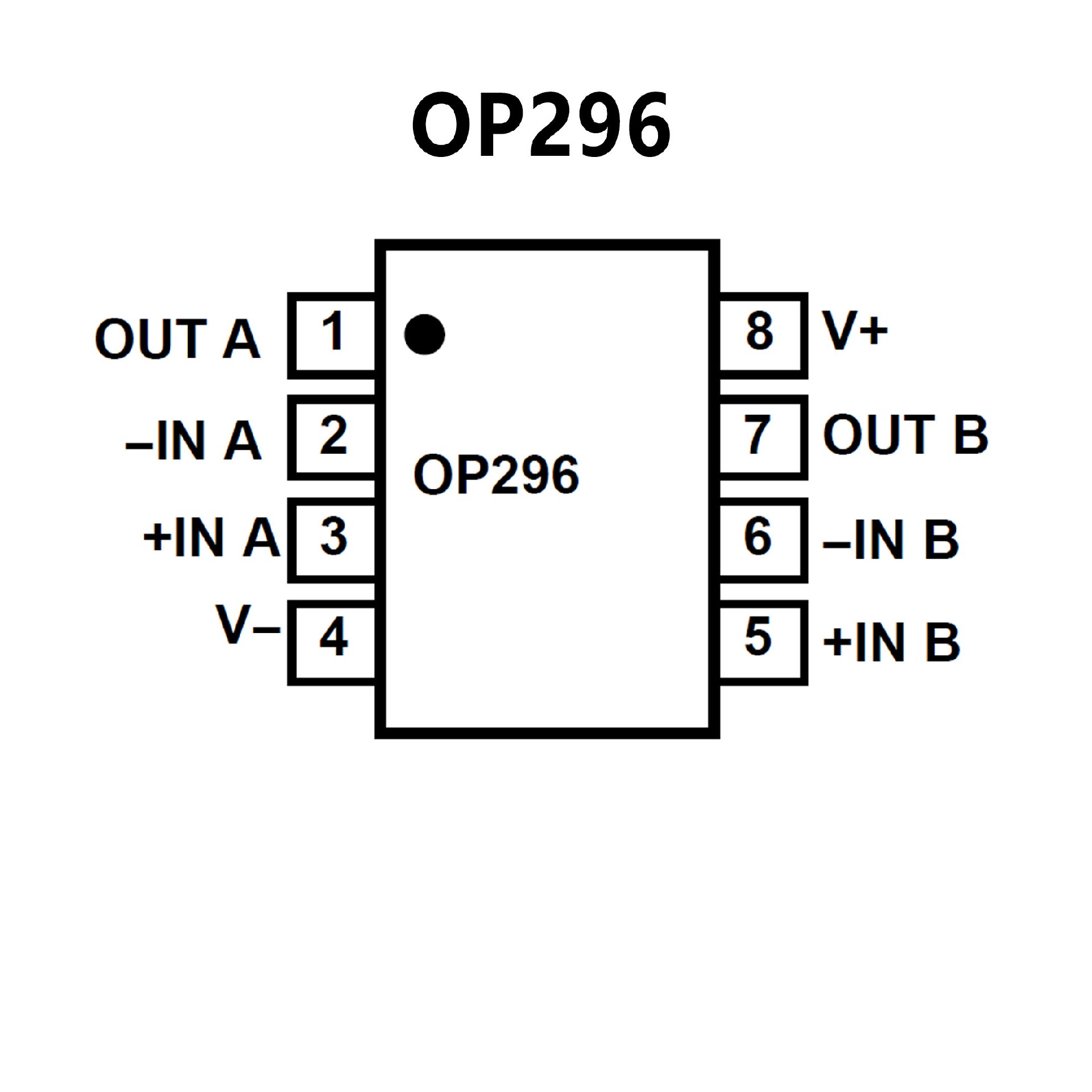

• Rail-to-Rail Input and Output Swing
• Low Power: 60 µA/Amplifier
• Gain Bandwidth Product: 450 kHz
• Single-Supply Operation: 3 V to 12 V
• Low Offset Voltage: 300 µV max
• High Open-Loop Gain: 500 V/mV
• Unity-Gain Stable
• No Phase Reversal
• APPLICATIONS
• Battery Monitoring
• Sensor Conditioners
• Portable Power Supply Control
• Portable Instrumentation
