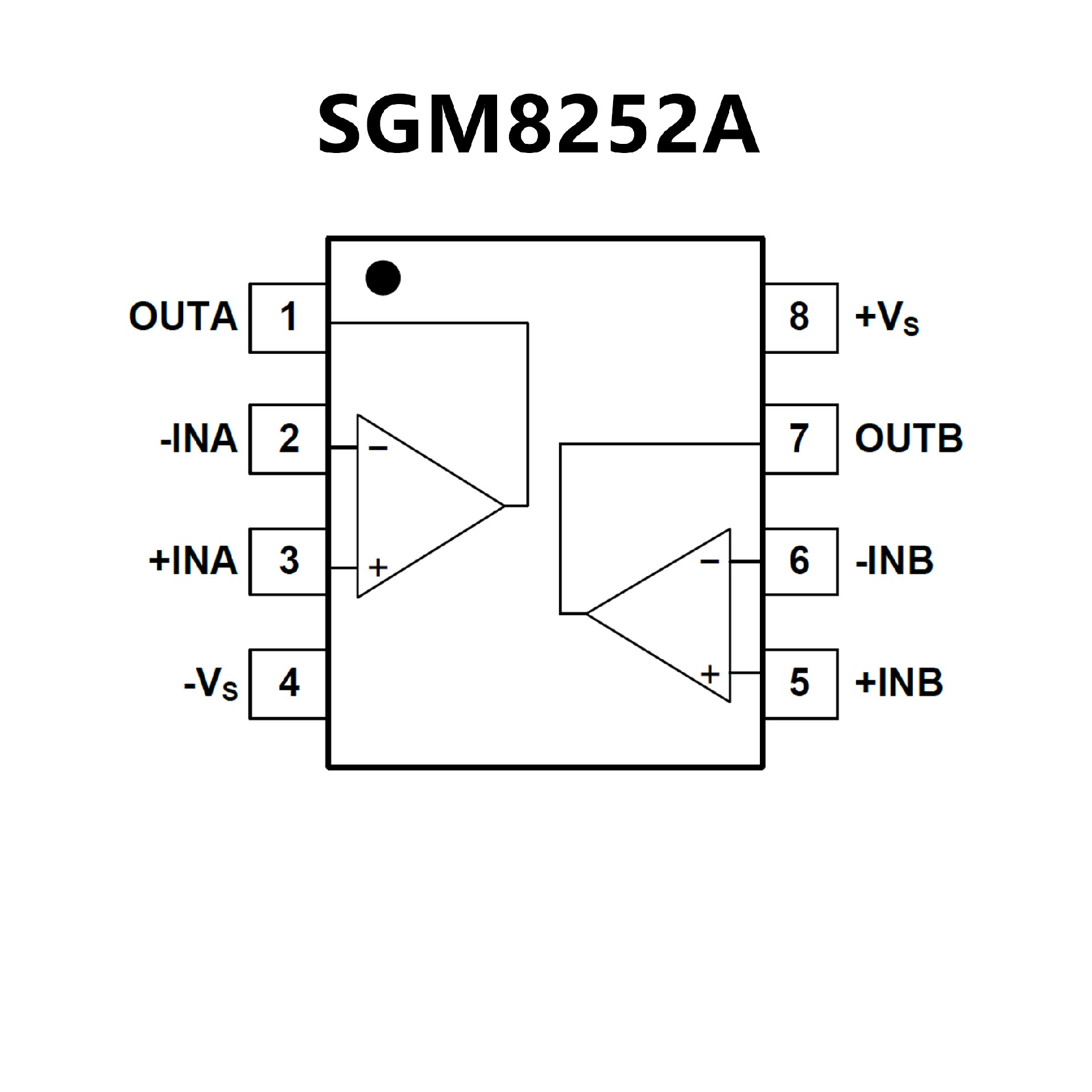

SGM8252AXS8G.pdf• Low Offset Voltage: 18μV (MAX)
• Rail-to-Rail Output Swing
• 4.5V to 36V Single Supply Operation
• Open-Loop Voltage Gain: 150dB (TYP)
• PSRR: 150dB (TYP)
• CMRR: 135dB (TYP)
• 0.1Hz to 10Hz Noise: 0.4μVP-P
• Input Voltage Noise Density: 20nV/ Hz at 1kHz
• Gain-Bandwidth Product: 2.8MHz
• Low Supply Current: 450μA/Amplifier (TYP)
• Overload Recovery Time: 3μs
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages

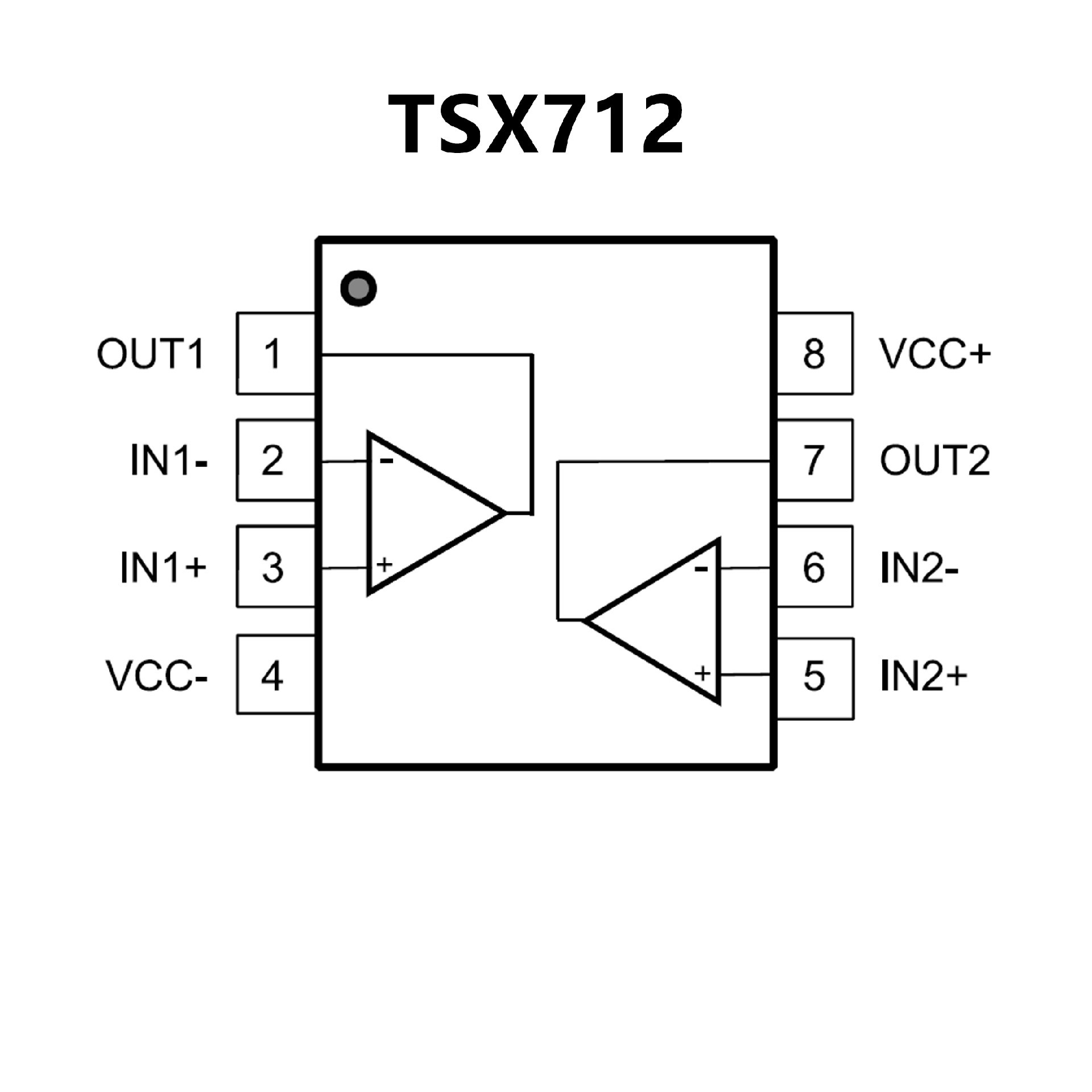

• Low input offset voltage: 200 μV max
• Rail-to-rail input and output
• Low current consumption: 800 μA max
• Gain bandwidth product: 2.7 MHz
• Low supply voltage: 2.7 - 16 V
• Unity gain stable
• Low input bias current: 50 pA max
• High ESD tolerance: 4 kV HBM
• Extended temp. range: -40 °C to 125 °C
• Automotive qualification
