3MHz, High Voltage, High Precision, Low Noise Rail-to-Rail Output Operational Amplifier.
SGM8252
SGM8252.pdf
SGM8252.pdfFEATURES
• Low Offset Voltage: 24μV (MAX)
• Rail-to-Rail Output Swing
• 4.5V to 36V Single Supply Operation
• Voltage Gain: 135dB (TYP)
• PSRR: 145dB (TYP)
• CMRR: 125dB (TYP)
• 0.1Hz to 10Hz Noise: 1μVP-P
• 56nV/ Hz Voltage Noise Density at 1kHz
• Gain-Bandwidth Product: 3MHz
• Low Supply Current: 480μA/Amplifier (TYP)
• Overload Recovery Time: 3μs (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages
PIN CONFIGUTION
优势替代
FEATURES
• high DC Precision
• 100 μV Max Offset Voltage
• 1.5 μV/°C Max Offset Drift
• 200 pA Max Input Bias Current
• 0.5μV p-p Voltage Noise, 0.1 Hz to 10 Hz
• 750 μA Supply Current
• Available in 8-Lead PDlP
• and Surface-Mount (SOIC) Packages
• Available in Tape and Reel in Accordance with
• EIA-481A Standard

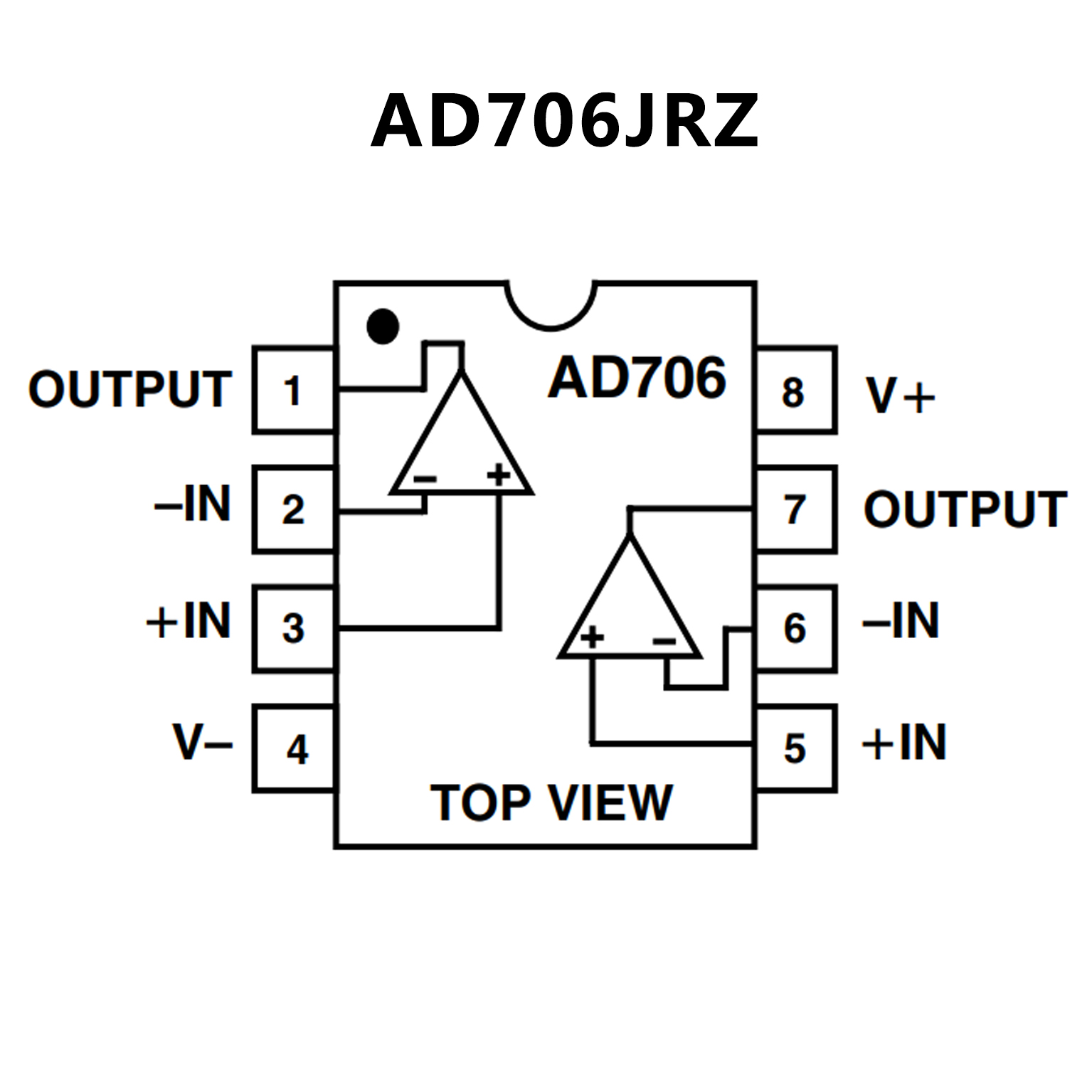

PIN CONFIGUTION
