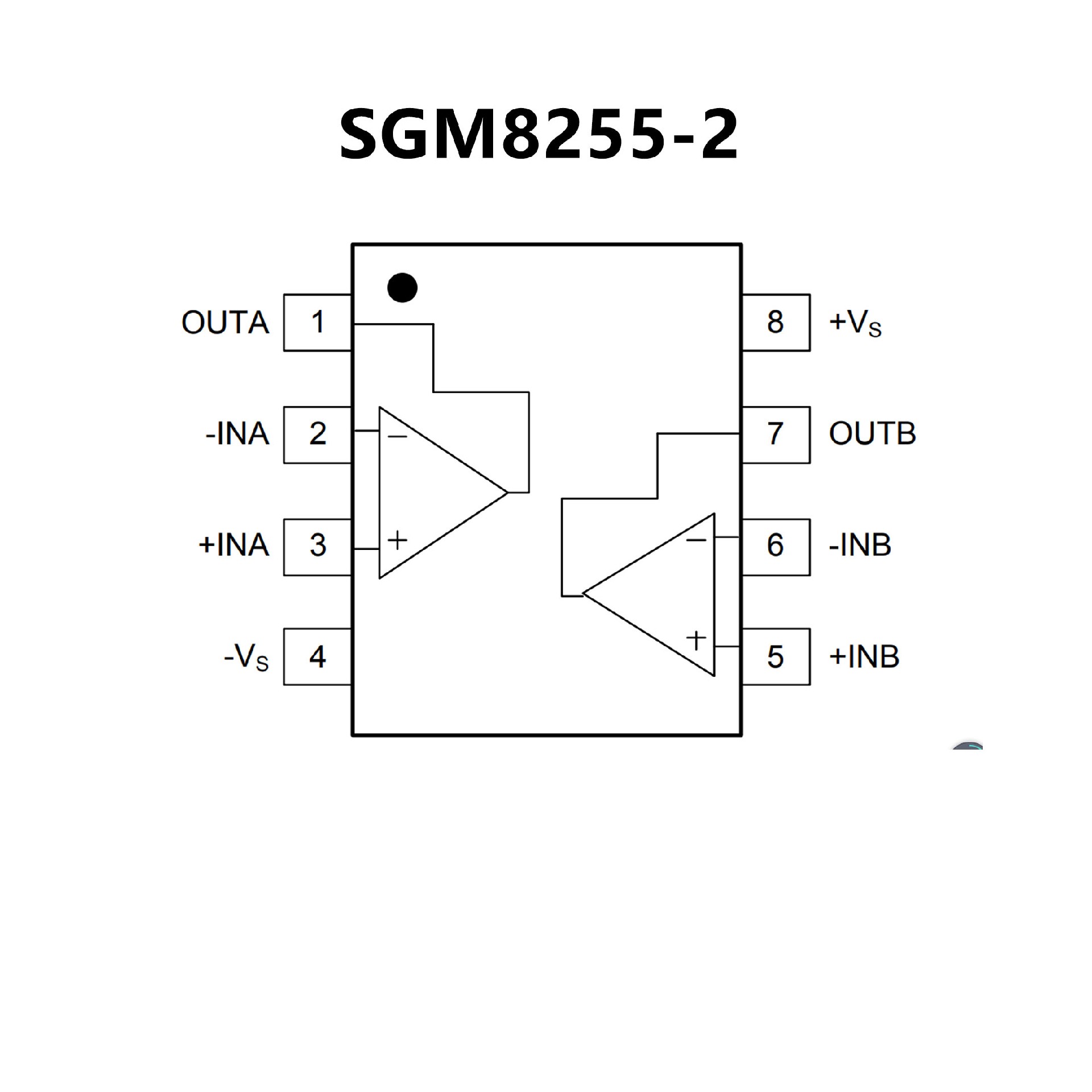

SGM8255-2.pdf• Low Offset Voltage: 10μV (TYP)
• Rail-to-Rail Output Swing
• 4.5V to 36V Single Supply Operation
• Voltage Gain: 150dB (TYP) at +5V
• PSRR: 155dB (TYP)
• CMRR: 120dB (TYP)
• 0.5μVP-P Noise at 0.1Hz to 10Hz
• 28nV/ Hz Voltage Noise Density at 1kHz
• 9MHz GBP
• Low Supply Current: 835μA/Amplifier (TYP)
• Overload Recovery Time: 0.5μs (at VS = +5V)
• -40℃ to +125℃ Operating Temperature Range
• SGM8255-1/-2/-3 Available in Green SOIC-8Package

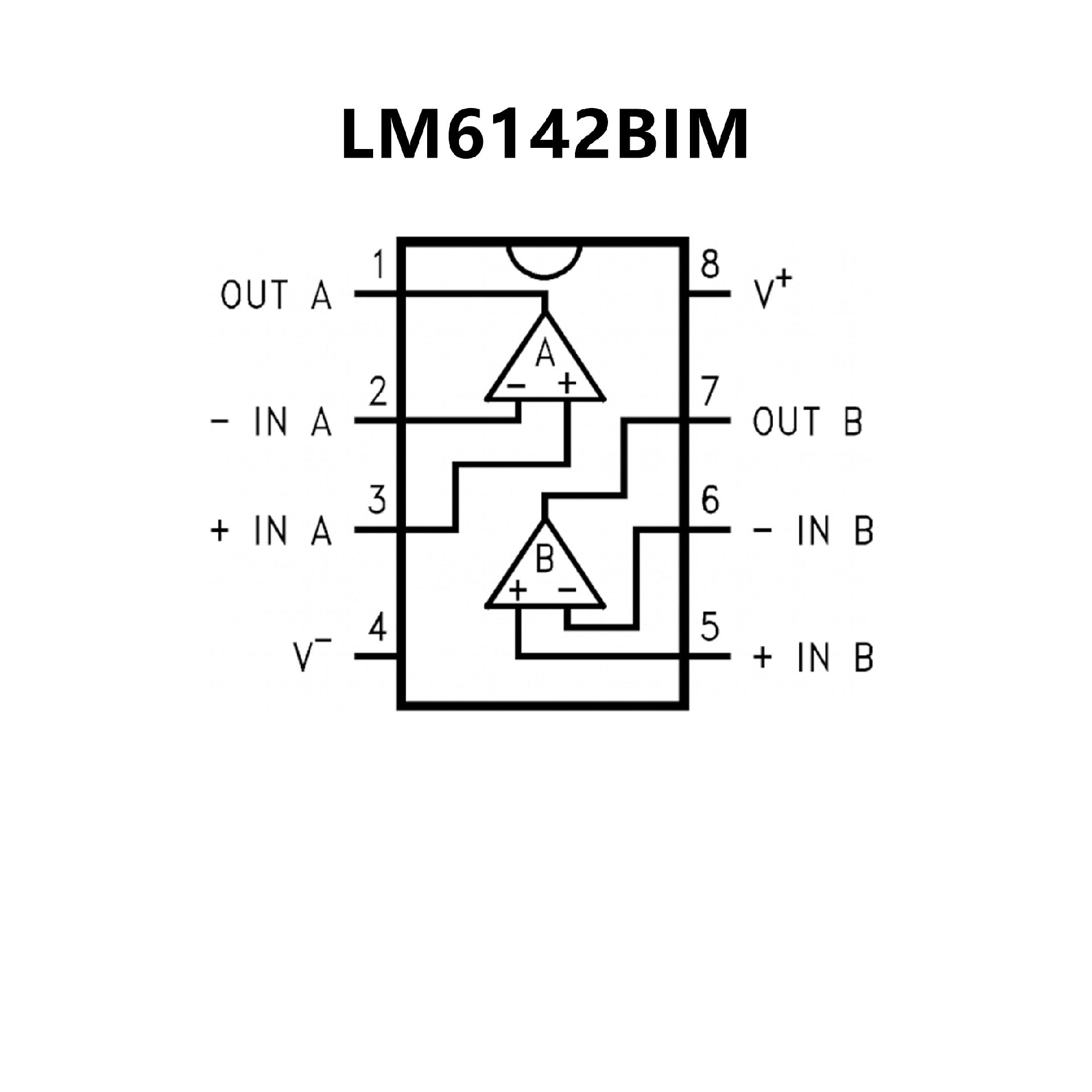

• At VS = 5V. Typ Unless Noted. 2
• Rail-to-rail Input CMVR −0.25V to 5.25V
• Rail-to-Rail Output Swing 0.005V to 4.995V
• Wide Gain-Bandwidth: 17MHz at 50kHz (typ)
• Slew Rate:
Small Signal, 5V/μs
Large Signal, 30V/μs
• Low Supply Current 650μA/Amplifier
Wide Supply Range 1.8V to 24V
• CMRR 107dB
• Gain 108dB with RL = 10k
• PSRR 87dB
