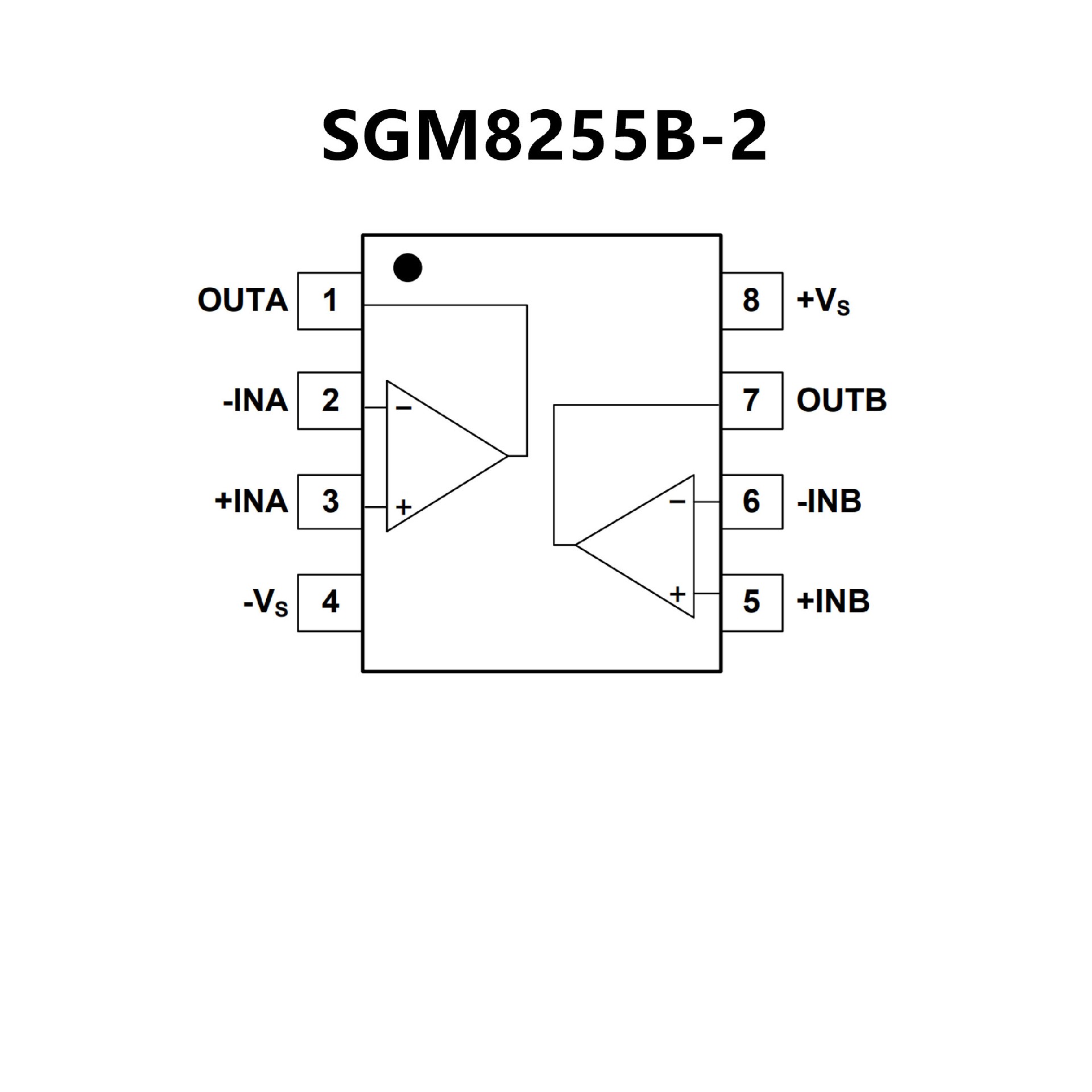

SGM8255B-2.pdf• Low Offset Voltage: 25μV (MAX)
• Open-Loop Voltage Gain: 150dB (TYP)
• PSRR: 150dB (TYP)
• CMRR: 135dB (TYP)
• 0.1Hz to 10Hz Noise: 0.2μVP-P
• Input Voltage Noise Density: 12nV/√Hz at 1kHz
• Gain-Bandwidth Product: 8.5MHz
• Overload Recovery Time: 0.7μs
• Rail-to-Rail Output Swing
• Supply Voltage Range: 4.5V to 36V
• Low Supply Current: 0.85mA/Amplifier (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages

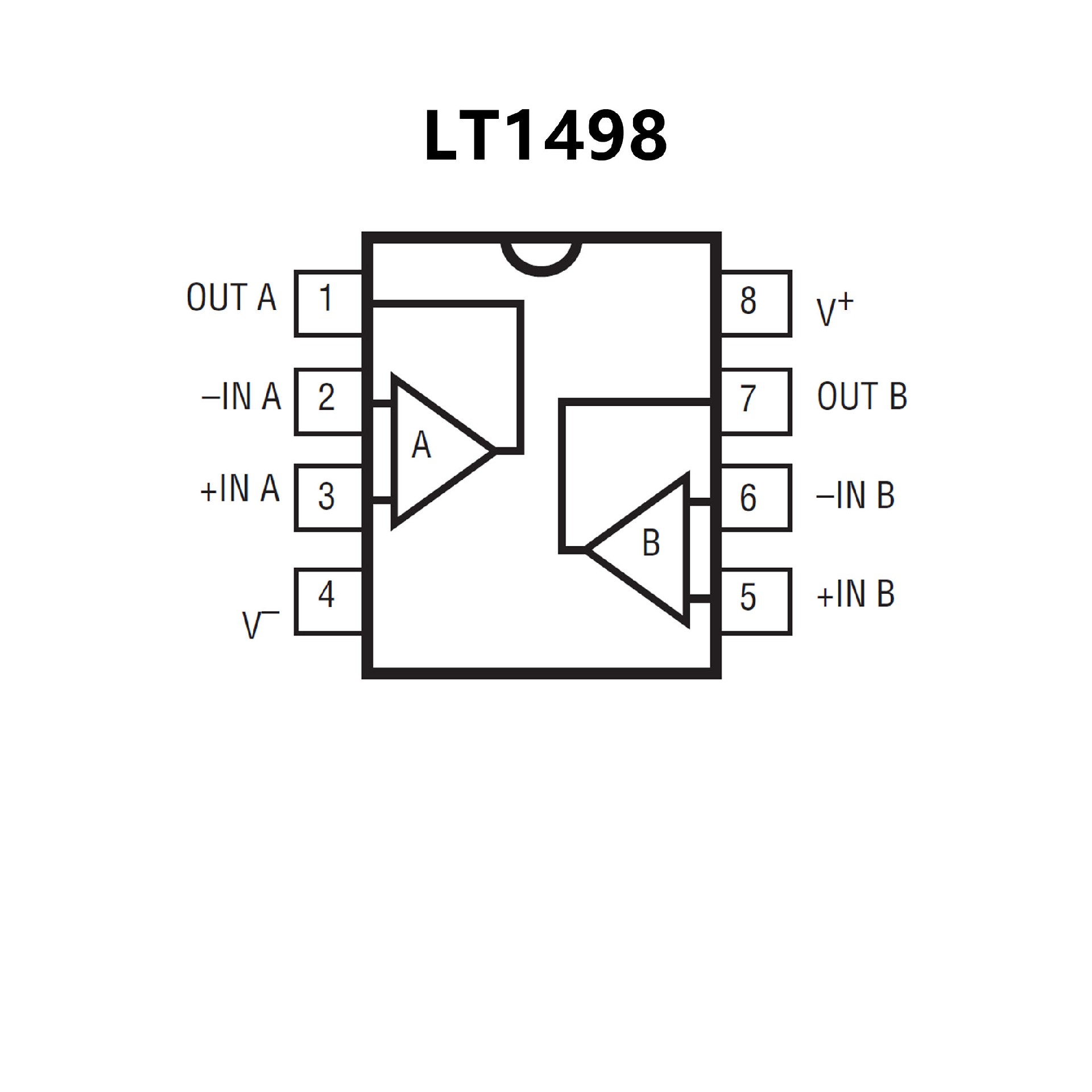

• Rail-to-Rail Input and Output
• 475μV Max VOS from V+ to V–
• Gain-Bandwidth Product: 10MHz
• Slew Rate: 6V/μs
• Low Supply Current per Amplifi er: 1.7mA
• Input Offset Current: 65nA Max
• Input Bias Current: 650nA Max
• Open-Loop Gain: 1000V/mV Min
• Low Input Noise Voltage: 12nV/√Hz Typ
• Wide Supply Range: 2.2V to ±15V
• Large Output Drive Current: 30mA
• Stable for Capacitive Loads Up to 10,000pF
• Dual in 8-Pin PDIP and SO Package
• Quad in Narrow 14-Pin SO
