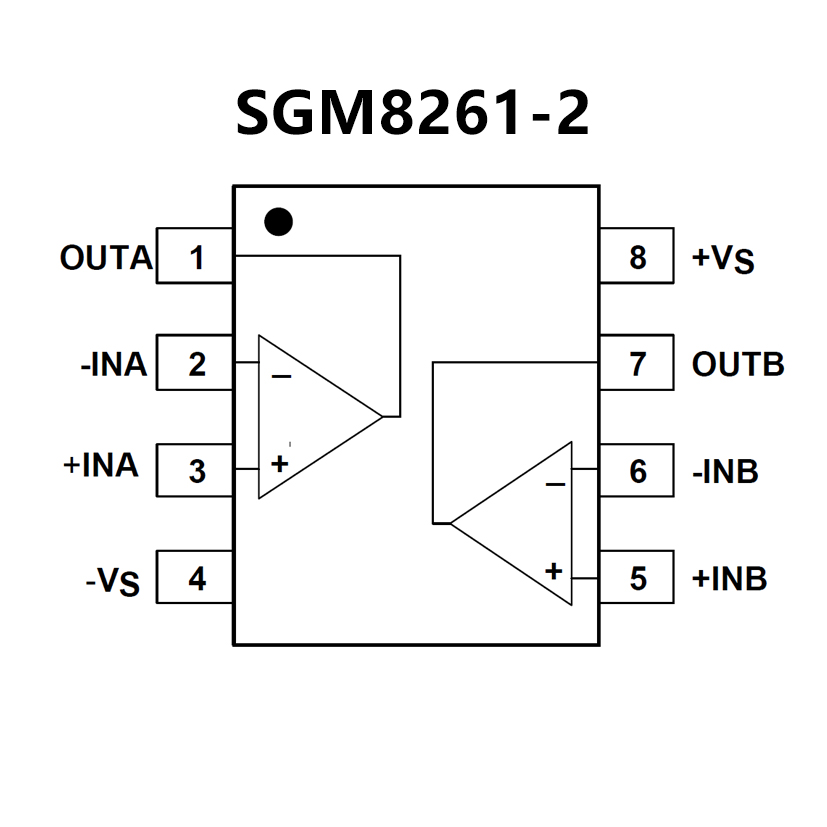

SGM8261-2YS8G.pdf• Superior Sound Quality
• Low Offset Voltage: ±350μV (MAX)
• Ultra Low Noise: 1.6nV/Hz at 1kHz
• Ultra Low Distortion: 0.00002% at 1kHz
• High Slew Rate: 16V/μs
• Gain-Bandwidth Product: 16MHz (G = +1)
• High Open-Loop Gain: 140dB
• Unity-Gain Stable
• Low Quiescent Current: 3.8mA/Amplifier
• Rail-to-Rail Output
• Support Single or Dual Power Supplies:
3.6V to 36V or ±1.8V to ±18V
• -40℃ to +85℃ Operating Temperature Range
• Small Packaging:
SGM8261-1 Available in a Green SOIC-8 Package
SGM8261-2 Available in Green SOIC-8, MSOP-8
and TDFN-3×3-8BL Packages
• Wide Bandwidth: 10 MHz
• High Output Drive:
IOH: 57 mA at VDD – 1.5 V
IOL: 55 mA at 0.5 V
• High Slew Rate:
SR+: 16 V/µs
SR–: 19 V/µs
• Wide Supply Range: 4.5 V to 16 V
• Supply Current: 1.9 mA/Channel
• Ultralow Power Shutdown Mode:
DD: 125 µA/Channel
• Low Input Noise Voltage: 8.5 nV√Hz
• Input Offset Voltage: 60 µV
• Ultra-Small Packages:

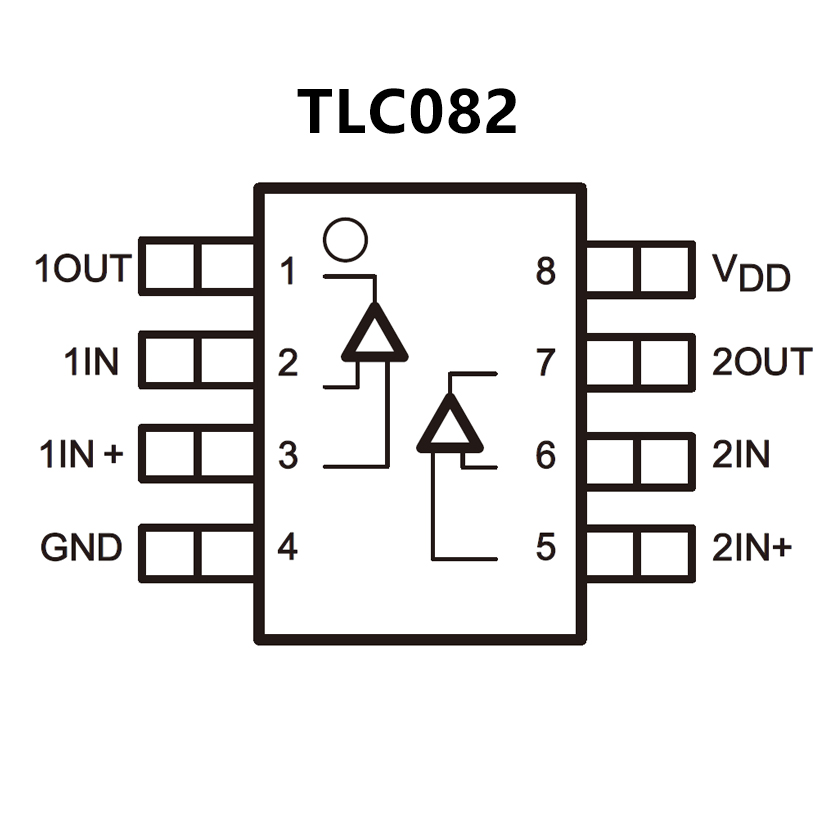

8- or 10-Pin MSOP (TLC080/1/2/3)
