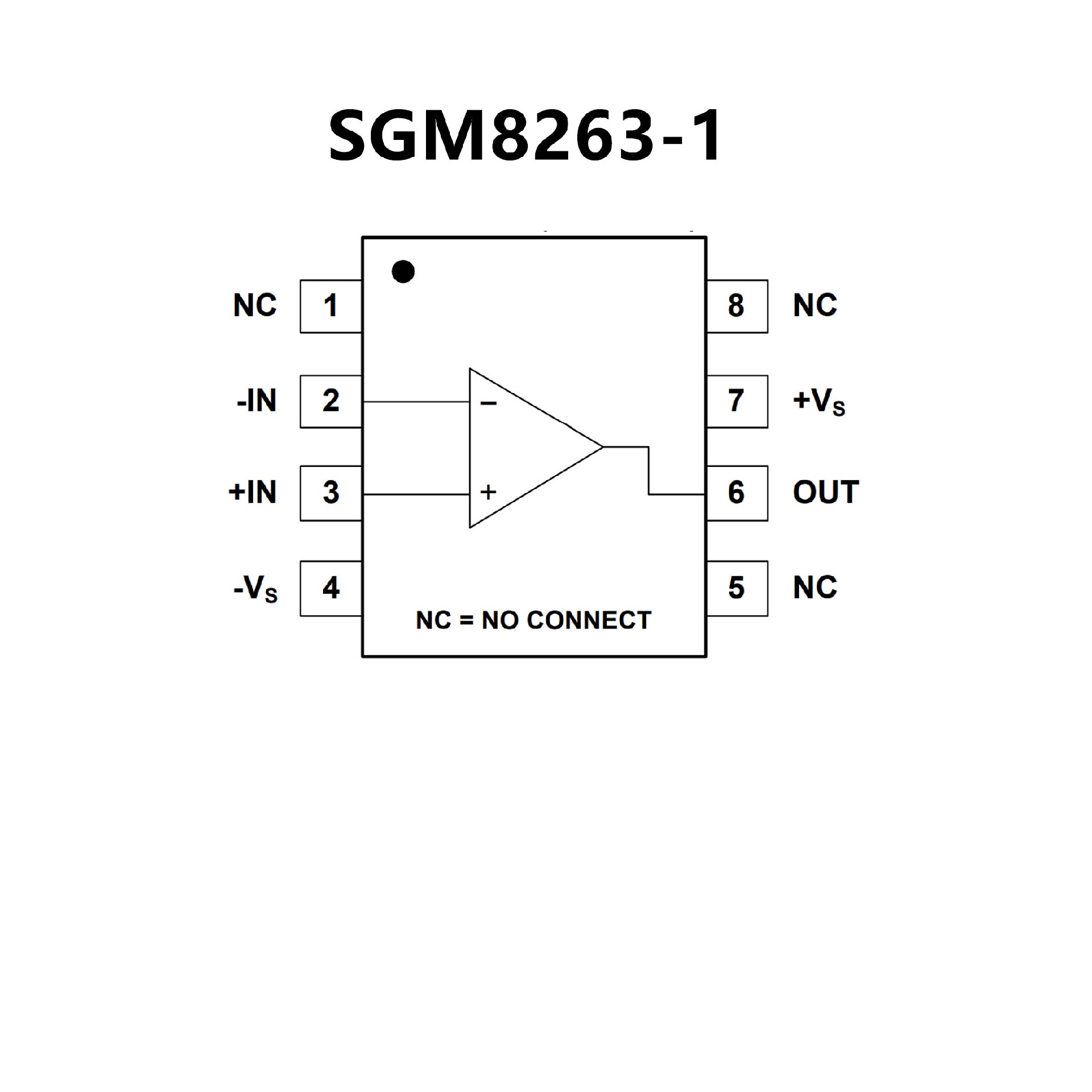

SGM8263-1.pdf• Ultra Low Offset Voltage: 8.5μV (MAX)
• Ultra Low Input Offset Voltage Drift: 10nV/℃
• Low Noise: 4.5nV/ Hz at 1kHz
• Low Distortion: 0.0001% at 1kHz
• High Slew Rate: 10V/μs
• Gain-Bandwidth Product: 10MHz (G = +1)
• High Open-Loop Gain: 145dB
• Unity-Gain Stable
• Low Quiescent Current: 2.5mA/Amplifier
• Rail-to-Rail Output
• Support Single or Dual Power
Supplies:4V to 36V or ±2V to ±18V
• -40℃ to +85℃ Operating Temperature Range
• Small Packaging:
SGM8263-1 Available in Green
SOT-23-5 andSOIC-8 Packages
SGM8263-2 Available in a Green SOIC-8 Package

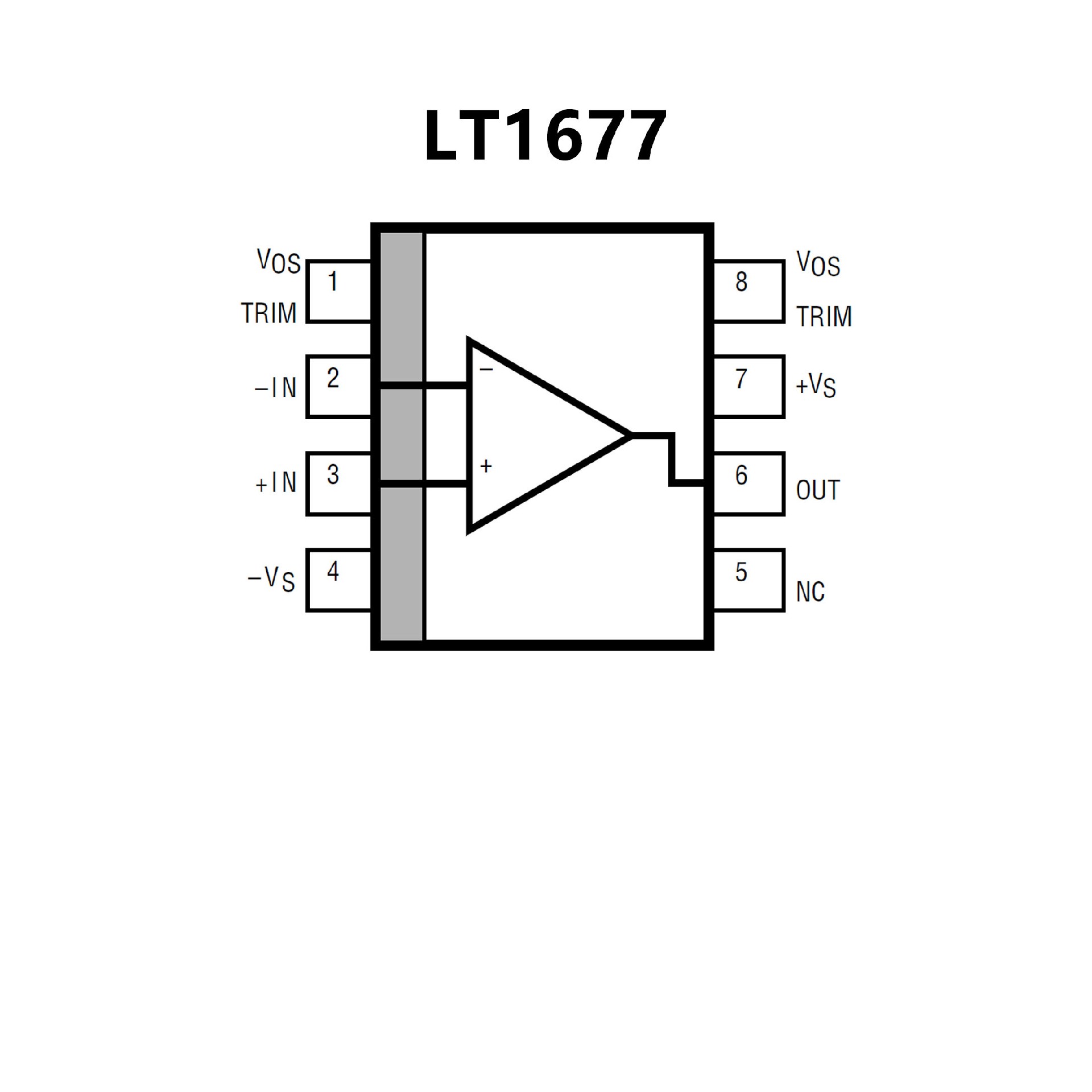

• Rail-to-Rail Input and Output
• 100% Tested Low Voltage Noise:
3.2nV/√Hz Typ at 1kHz 4.5nV/√Hz Max at 1kHz
• Offset Voltage: 60µV Max
• Low VOS Drift: 0.2µV/°C Typ
• Low Input Bias Current: 20nA Max
• Wide Supply Range: 3V to ±18V
• High AVOL: 7V/µV Min, RL = 10k
• High CMRR: 109dB Min
• High PSRR: 108dB Min
• Gain Bandwidth Product: 7.2MHz
• Slew Rate: 2.5V/µs
• Operating Temperature Range: –40°C to 85°C
