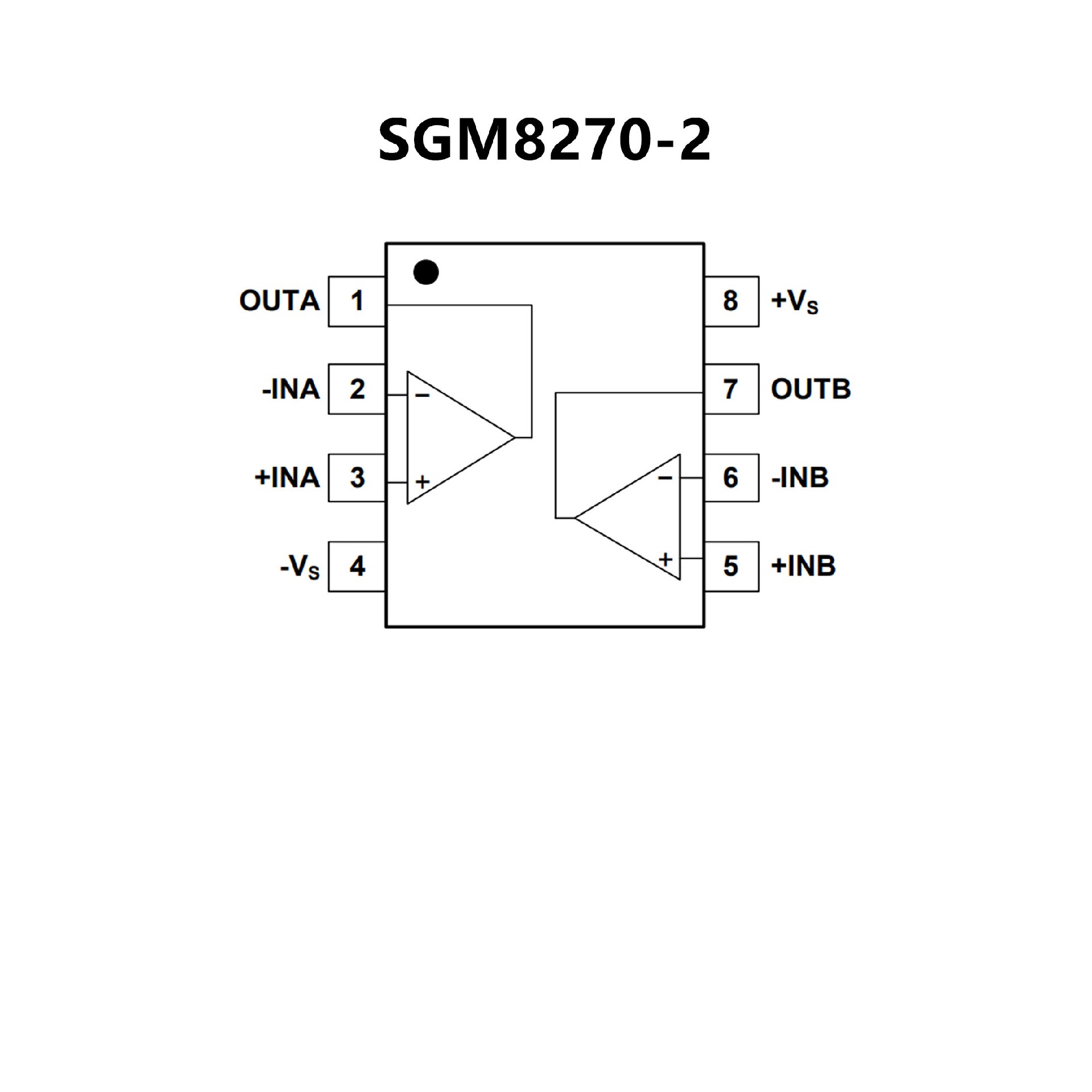

SGM8270-2.pdf• Wide Input Common Mode and
DifferentialVoltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 2.8mV (MAX)
• Low Noise: 15nV/ Hz at 1kHz
• Gain-Bandwidth Product: 2.5MHz
• High Slew Rate: 8V/µs
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 Package
• Wide Power Supply Voltage Range:
• Single Supply: 3V to 36V
• Dual Supplies: ±1.5V to ±18V
• Very Low Supply Current Drain

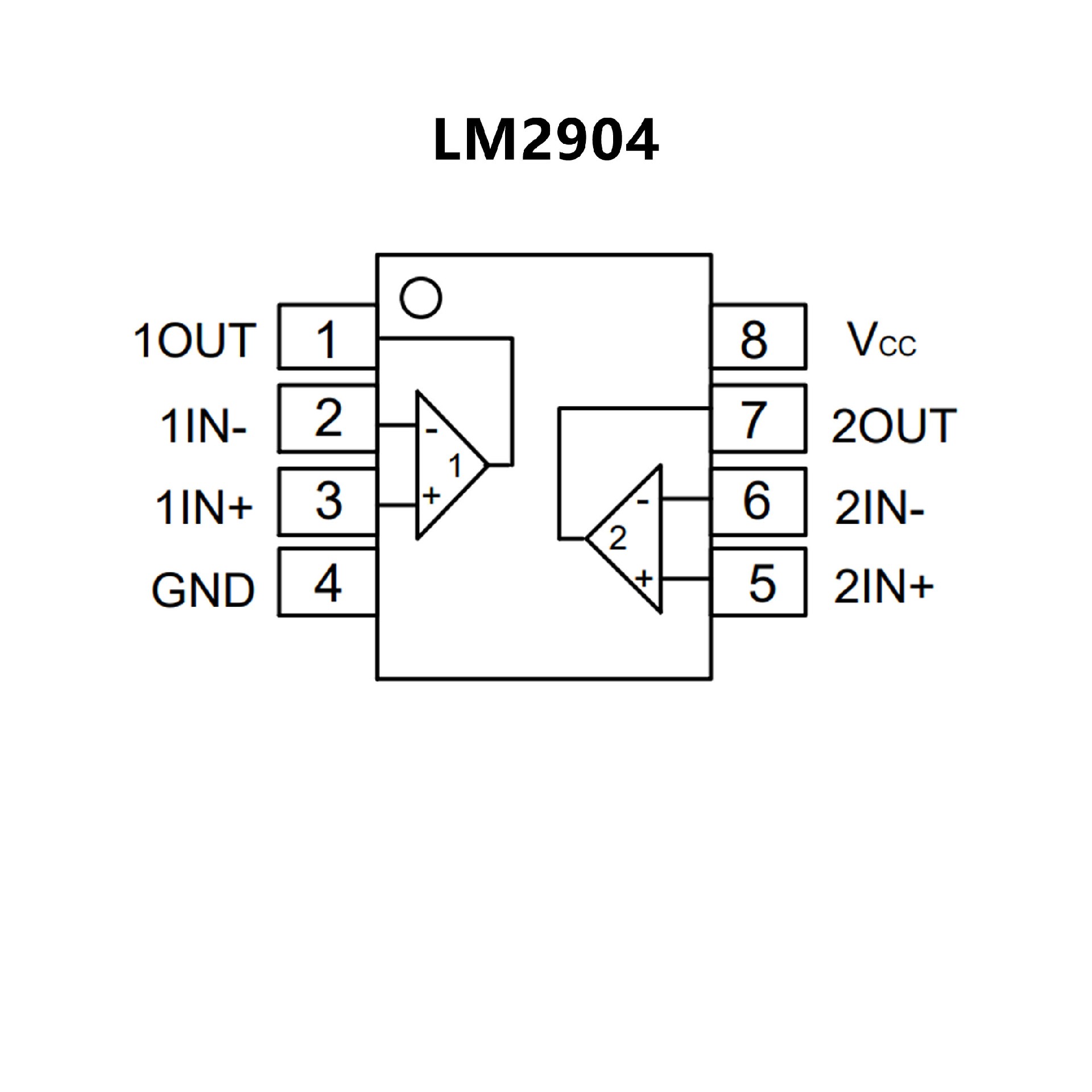

• LM2904 500µA
Independent of Supply Voltage
• LM2902 700µA
Independent of Supply Voltage
• Low Input Bias Current: 20nA
• Low Input Offset Voltage:
• A Version: 1mV Typ
• Non-A Version: 2mV Typ
• Large DC Voltage Gain: 100dB
• Wide Bandwidth (Unity Gain): 700kHz
(TemperatureCompensated)
• Internally Compensated with Unity Gain
• Input Common-Mode Voltage Range
Includes Ground
• Differential Input Voltage Range
Equal to the Power SupplyVoltage
• Large Output Voltage Swing: 0V to VCC -1.5V
• SO-8, MSOP-8, TSSOP-8 (Duals) and SO-14,
TSSOP-14(Quads) Packages Available
• Totally Lead-Free & Fully RoHS Compliant
(Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• An Automotive-Compliant Part is Available Under
SeparateDatasheet (LM2902Q_LM2904Q)
