Low Noise, Precision, High Voltage, Rail-to-Rail I/O Operational Amplifier,SGM8270-2 Replace LMC6482.
SGM8270-2
SGM8270-2.pdf
SGM8270-2.pdfFEATURES
• Wide Input Common Mode and
DifferentialVoltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 2.8mV (MAX)
• Low Noise: 15nV/ Hz at 1kHz
• Gain-Bandwidth Product: 2.5MHz
• High Slew Rate: 8V/µs
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages

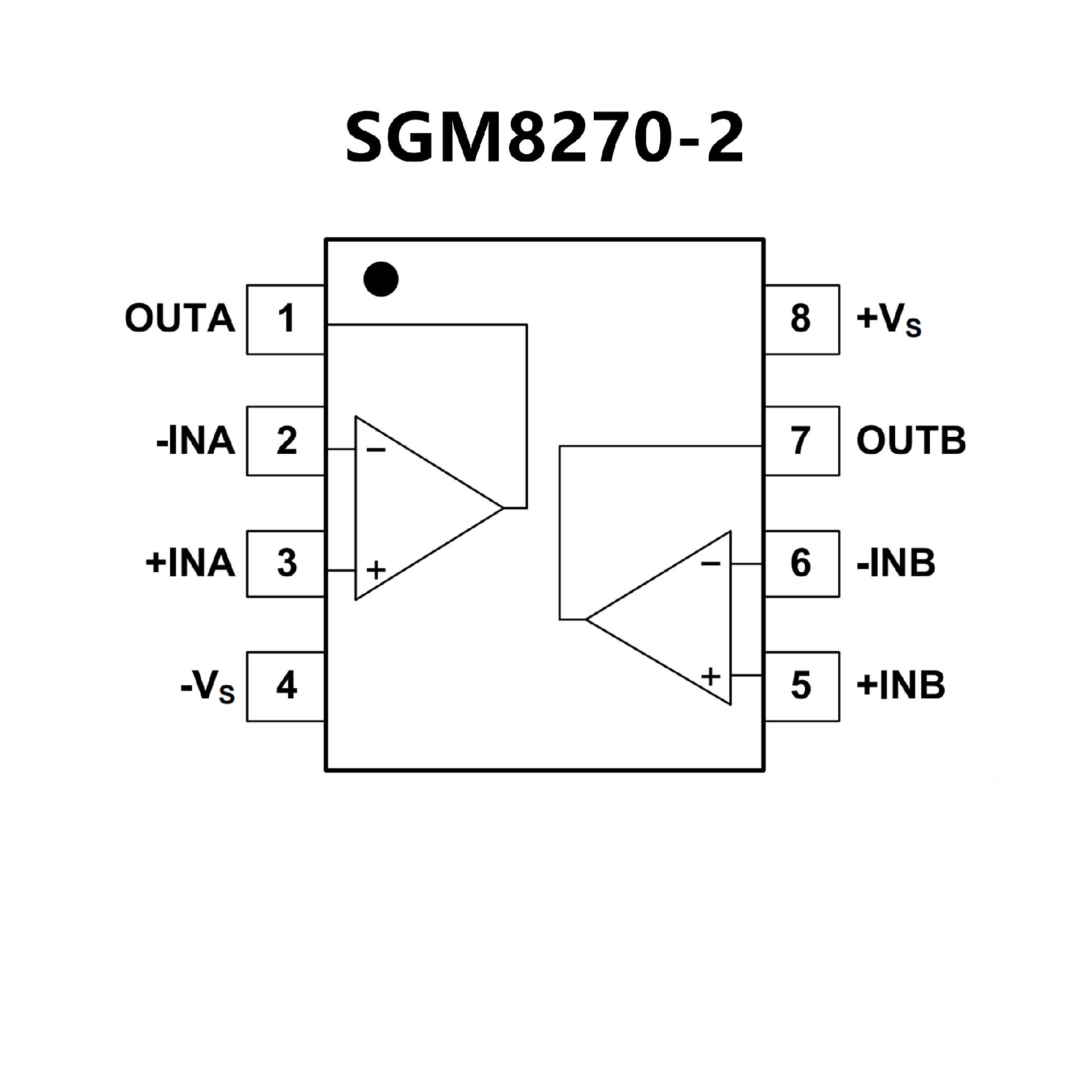

PIN CONFIGUTION
优势替代
FEATURES
• Low input offset voltage: 2 mV max.
• Rail-to-rail input and output
• Excellent CMRR : 98 dB @ 16 V
• Low current consumption: 900 µA max.
• Gain bandwidth product: 2.7 MHz
• Low supply voltage: 2.7 - 16 V
• Unity gain stable
• Low input bias current: 50 pA max.
• High ESD tolerance: 4 kV HBM
• Extended temp. range: -40 °C to +125 °C

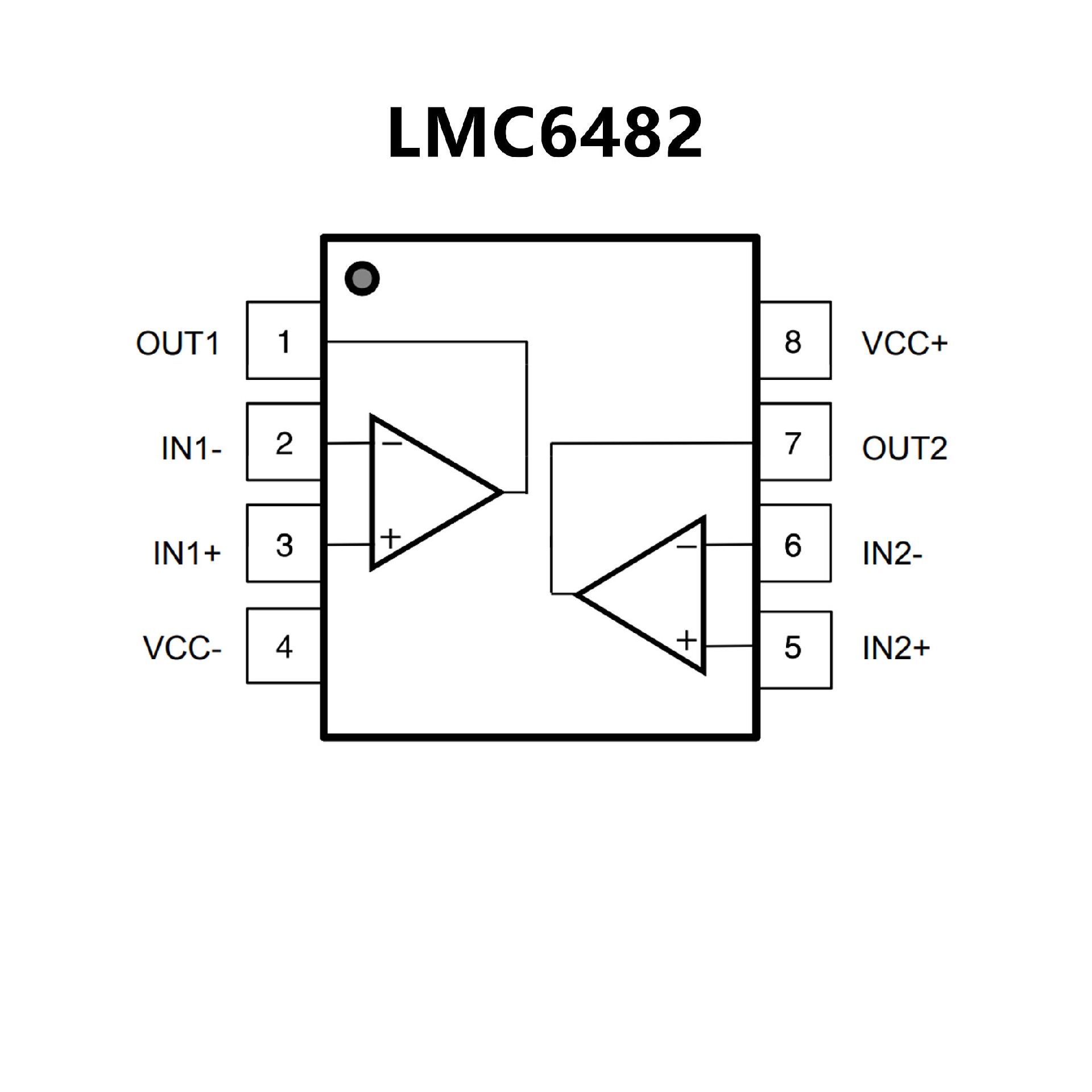

PIN CONFIGUTION
