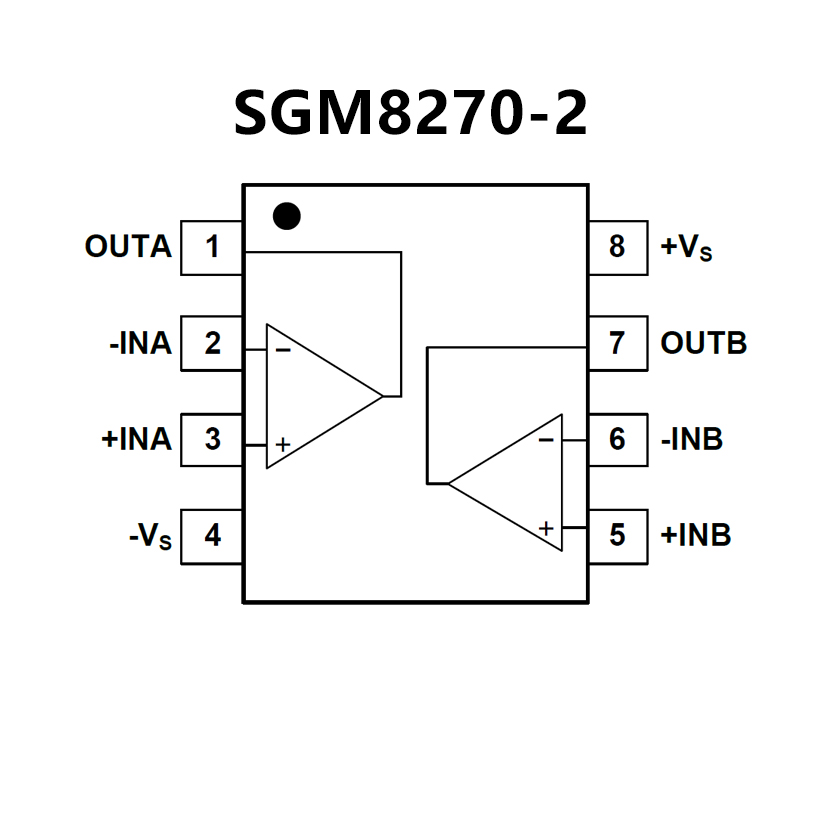

SGM8270-2.pdf• Wide Input Common Mode and Differential
Voltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 2.8mV (MAX)
• Low Noise: 15nV/ Hz at 1kHz
• Gain-Bandwidth Product: 2.5MHz
• High Slew Rate: 8V/μs
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages
• Output Swing includes Both Supply Rails
• Low Noise . . . 12 nV/√Hz Typ at f = 1 kHz
• Low Input Bias Current . . . 1 pA Typ
• Fully Specified for Both Single-Supply and
Split-Supply Operation
• Low Power . . . 500 μA Max
• Common-Mode Input Voltage Range
Includes Negative Rail
• Low Input Offset Voltage

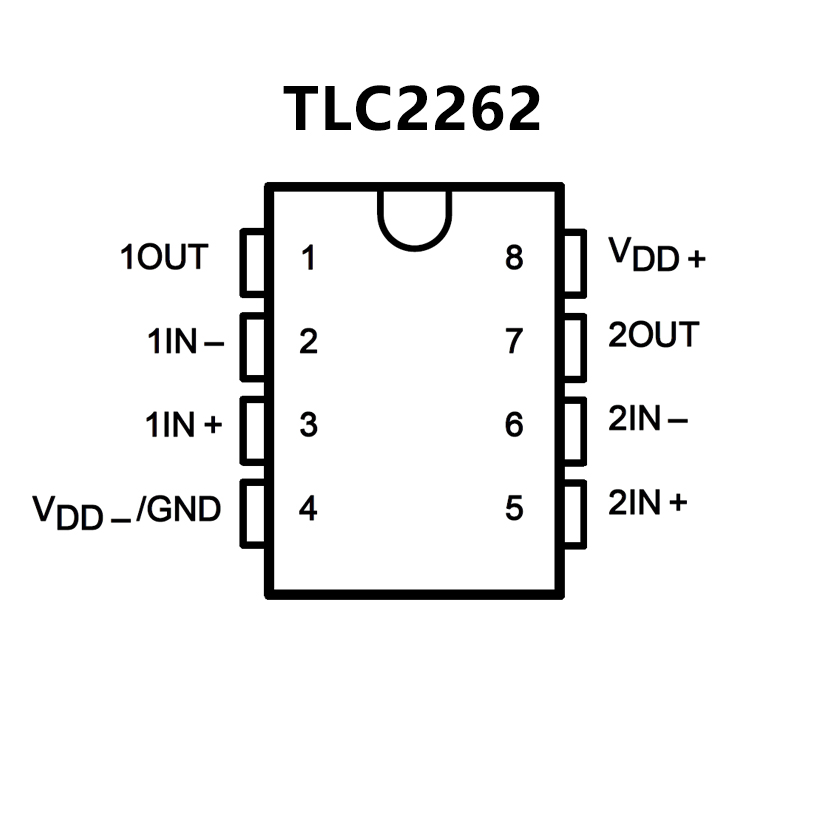

950 μV Max at TA = 25°C (TLC2262A)
• Macromodel Included
• Performance Upgrade for the TS27M2/M4
and TLC27M2/M4
• Available in Q-Temp Automotive
HighRel Automotive Applications
Configuration Control/Print Support
Qualification to Automotive Standards
