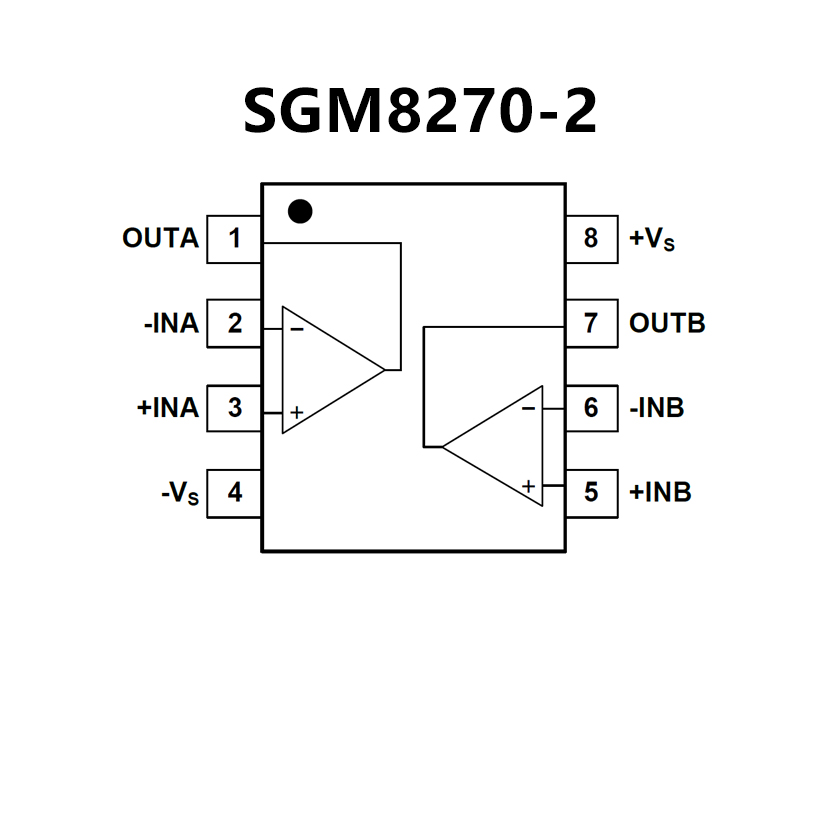

SGM8270-2.pdf• Wide Input Common Mode and Differential
Voltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 2.8mV (MAX)
• Low Noise: 15nV/ Hz at 1kHz
• Gain-Bandwidth Product: 2.5MHz
• High Slew Rate: 8V/μs
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages

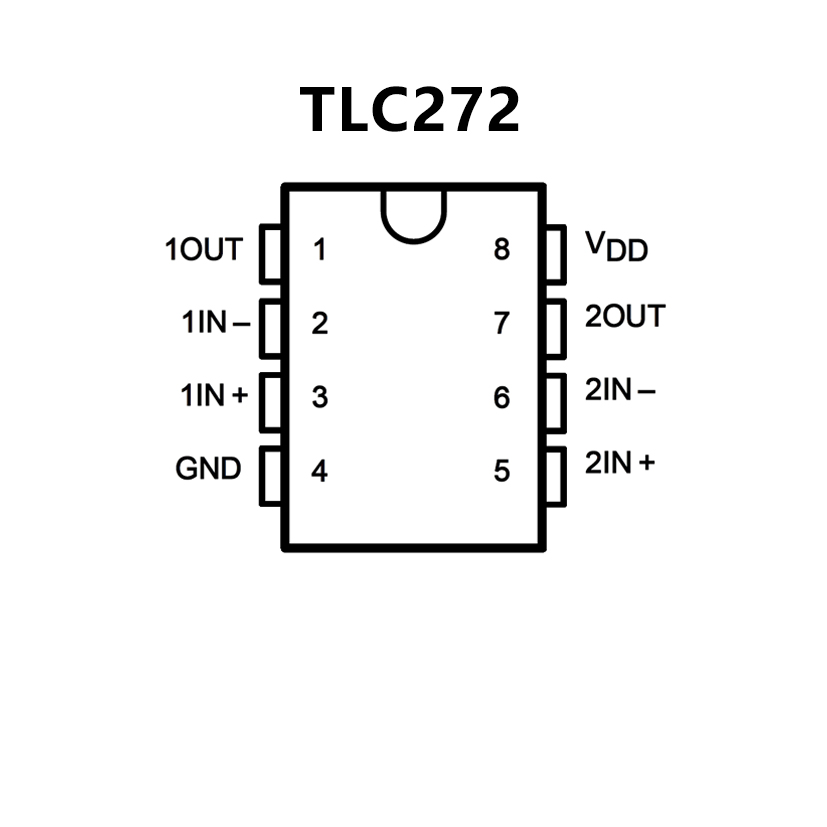

• Trimmed Offset Voltage:
TLC277 . . . 500 μV Max at 25°C,
VDD = 5 V
• Input Offset Voltage Drift . . . Typically
0.1 μV/Month, Including the First 30 Days
• Wide Range of Supply Voltages Over
Specified Temperature Range:
0°C to 70°C . . . 3 V to 16 V
–40°C to 85°C . . . 4 V to 16 V
–55°C to 125°C . . . 4 V to 16 V
• Single-Supply Operation
• Common-Mode Input Voltage Range
Extends Below the Negative Rail (C-Suffix,
I-Suffix types)
• Low Noise . . . Typically 25 nV/√Hz at
f = 1 kHz
• Output Voltage Range Includes
NegativeRail
• High Input impedance . . . 1012 Ω Typ
• ESD-Protection Circuitry
• Small-Outline Package Option Also
Available in Tape and Reel
• Designed-In Latch-Up Immunity
