Low Noise, Precision, High Voltage,Rail-to-Rail I/O Operational Amplifier,SGM8270-2XS8G Replace TL052CDR.
SGM8270-2XS8G
SGM8270-2XS8G.pdf
SGM8270-2XS8G.pdfFEATURES
• Wide Input Common Mode and
DifferentialVoltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 2.8mV (MAX)
• Low Noise: 15nV/Hz at 1kHz
• Gain-Bandwidth Product: 2.5MHz
• High Slew Rate: 8V/μs
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages

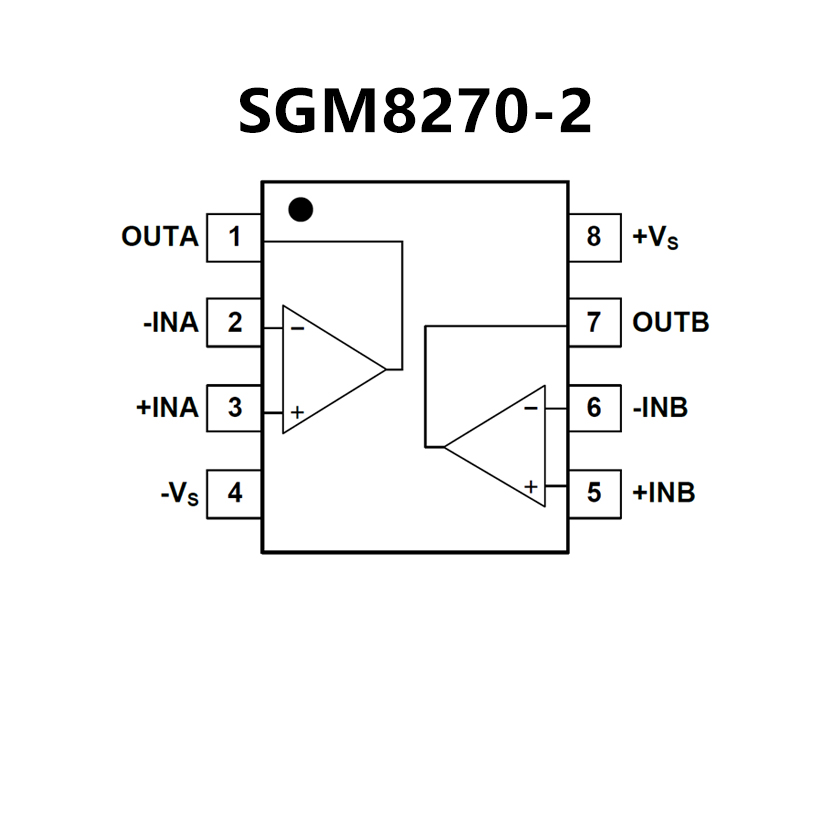

PIN CONFIGUTION
优势替代
FEATURES
• Direct Upgrades to TL07x and TL08x BiFET
Operational Amplifiers
• Faster Slew Rate (20 V/μs Typ) Without
Increased Power Consumption
• On-Chip Offset-Voltage Trimming for
Improved DC Performance and Precision
Grades Are Available (1.5 mV, TL051A)

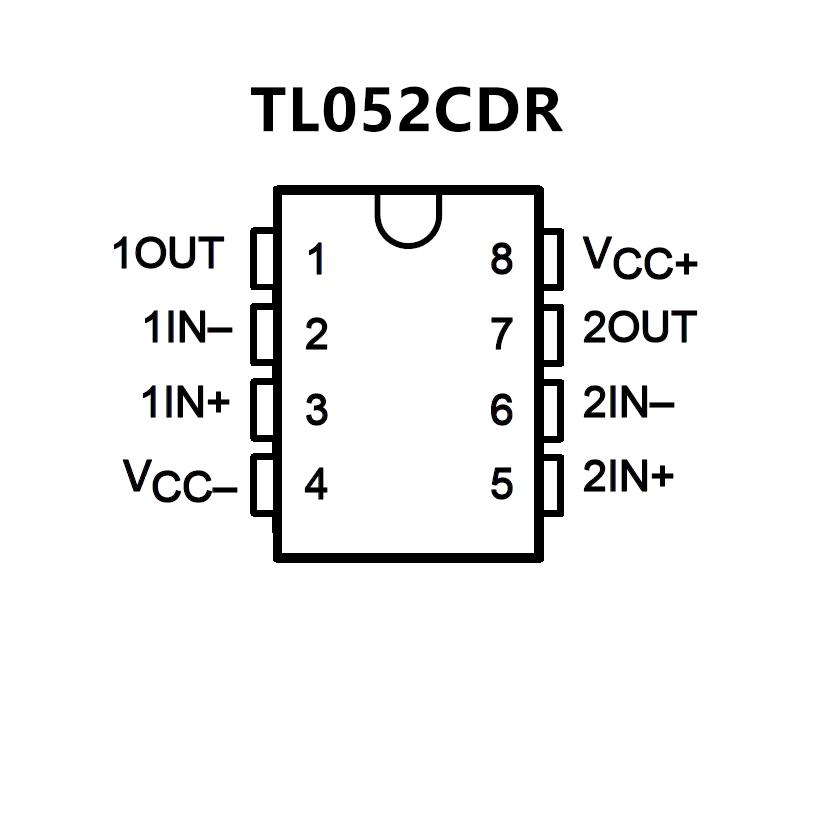

PIN CONFIGUTION
