Low Noise, Precision, High Voltage,Rail-to-Rail I/O Operational Amplifier,SGM8270-2XS8G Replace TLV4316.
SGM8270-2XS8G
SGM8270-2XS8G.pdf
SGM8270-2XS8G.pdfFEATURES
• Wide Input Common Mode and
DifferentialVoltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 2.8mV (MAX)
• Low Noise: 15nV/Hz at 1kHz
• Gain-Bandwidth Product: 2.5MHz
• High Slew Rate: 8V/μs
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages

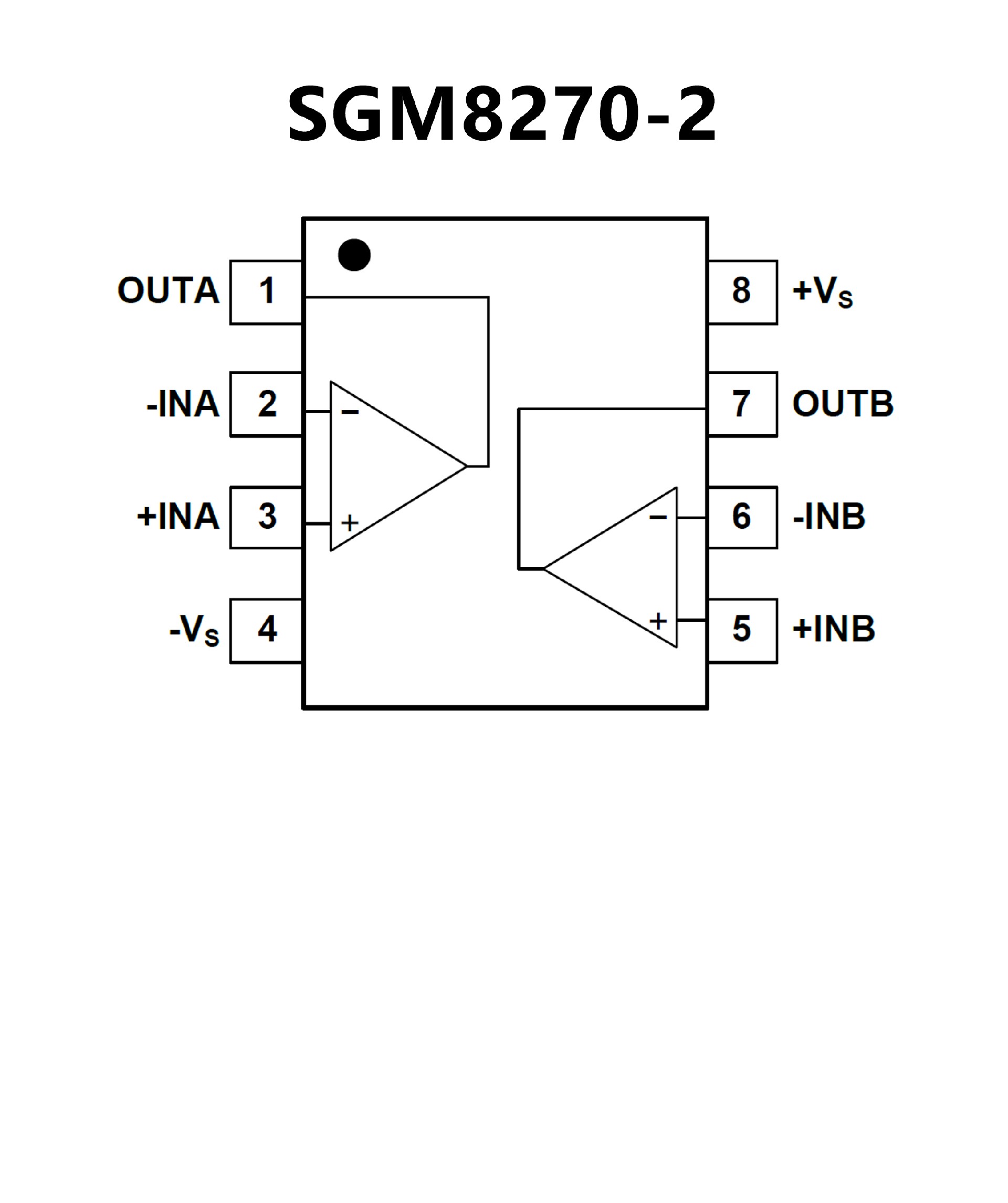

PIN CONFIGUTION
优势替代
FEATURES
• Unity-Gain Bandwidth: 10 MHz
• Low IQ: 400 μA/ch
Excellent Power-to-Bandwidth Ratio
Stable IQ Over Temperature and Supply
Range
• Wide Supply Range: 1.8 V to 5.5 V
• Low Noise: 12 nV/√Hz at 1 kHz
• Low Input Bias Current: ±10 pA
• Offset Voltage: ±0.75 mV
• Unity-Gain Stable
• Internal RFI/EMI Filter
• Extended Temperature Range: –40°C to +125°C

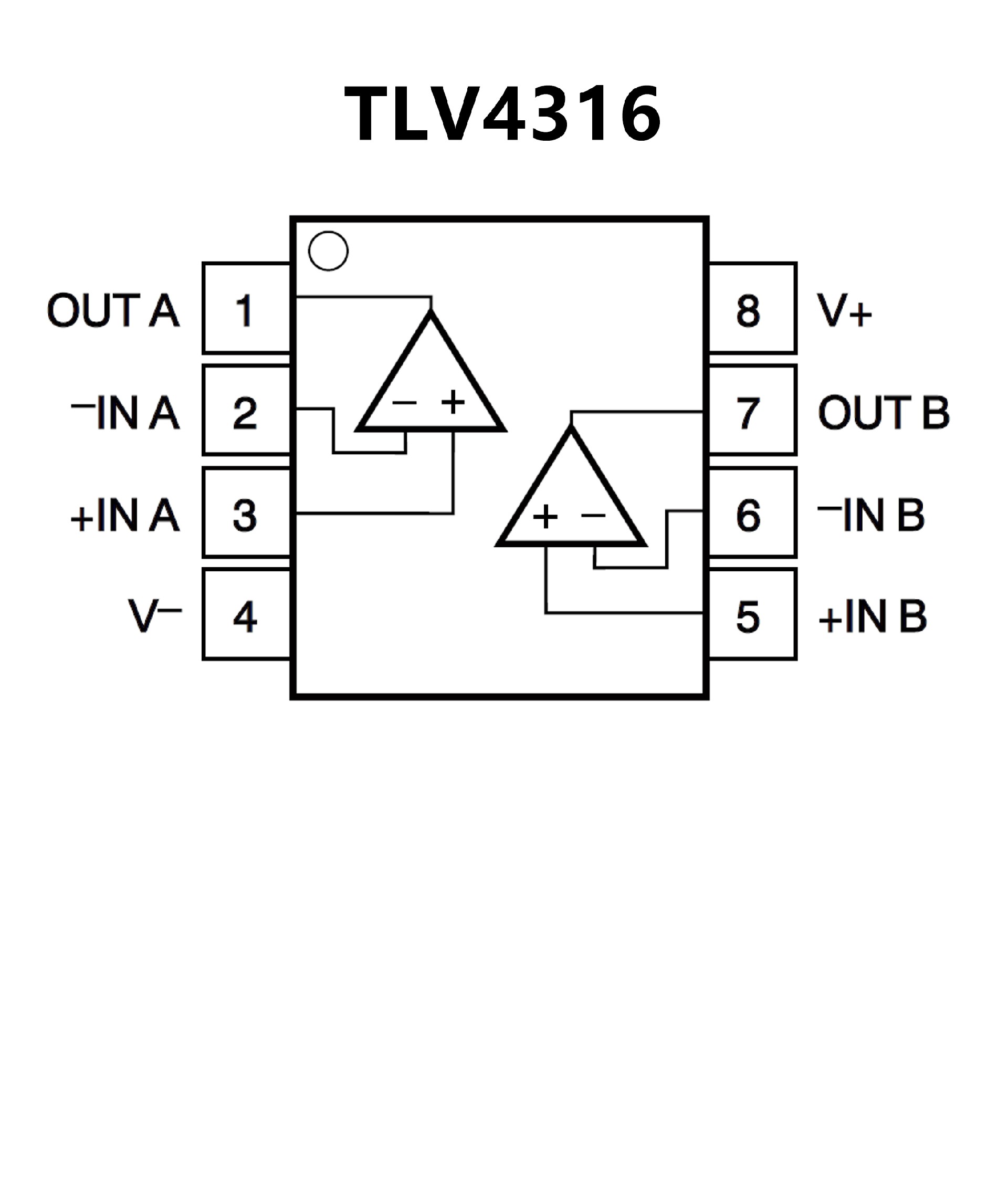

PIN CONFIGUTION
