Low Noise, Precision, High Voltage, Rail-to-Rail I/O Operational Amplifier,SGM8270 Replace HA17358A.
SGM8270
SGM8270.pdf
SGM8270.pdfFEATURES
• Wide Input Common Mode and
Differential
Voltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 2.8mV (MAX)
• Low Noise: 15nV/ Hz at 1kHz
• Gain-Bandwidth Product: 2.5MHz
• High Slew Rate: 8V/µs
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages

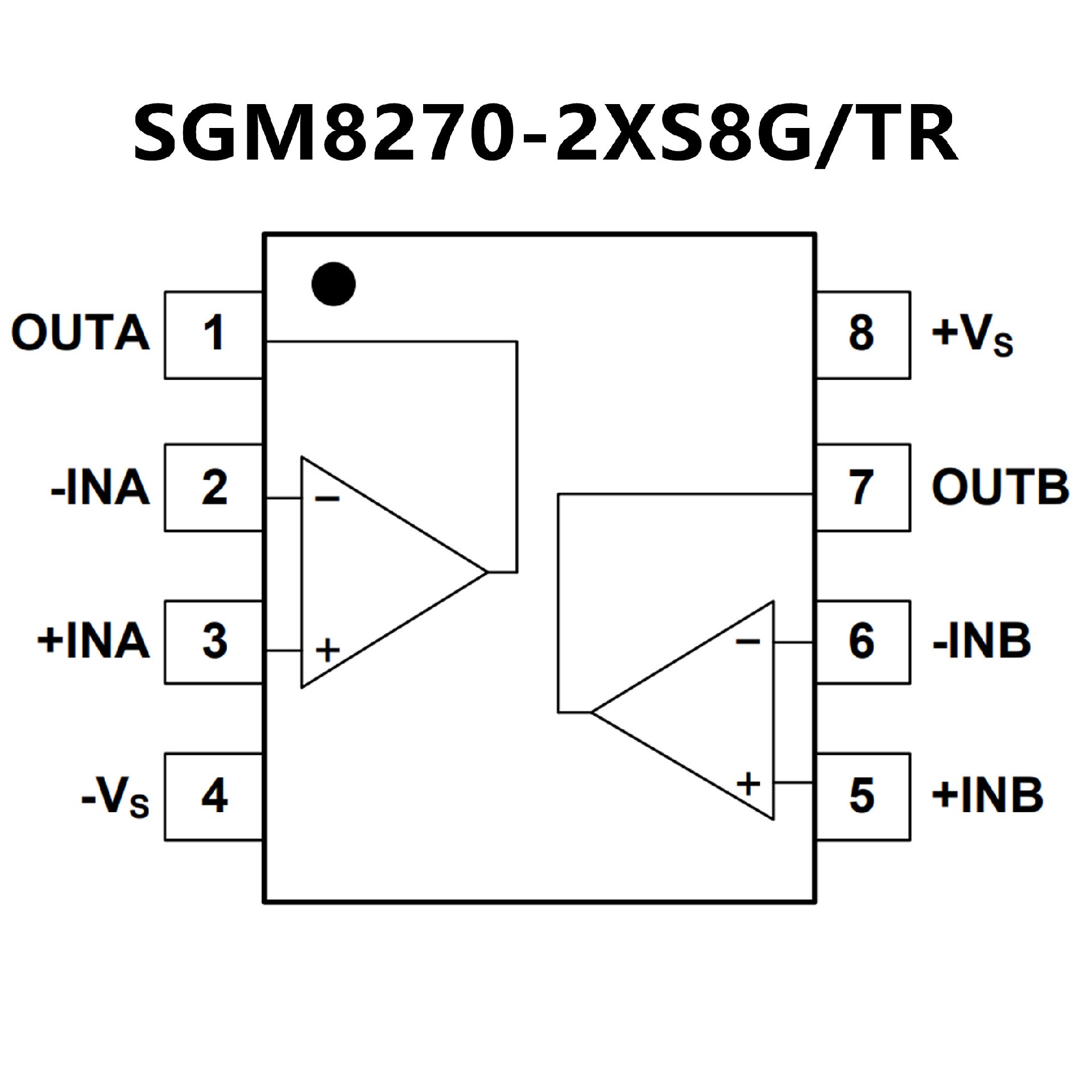

PIN CONFIGUTION
优势替代
FEATURES
• Wide range of supply voltage,
and single power supply used
• Wide range of common mode
voltage, and possible to operate
with an input about 0 V, and output
around 0 V is
available
• Frequency characteristics and
input bias current are temperature compensated
• Low electro-magnetic susceptibility level

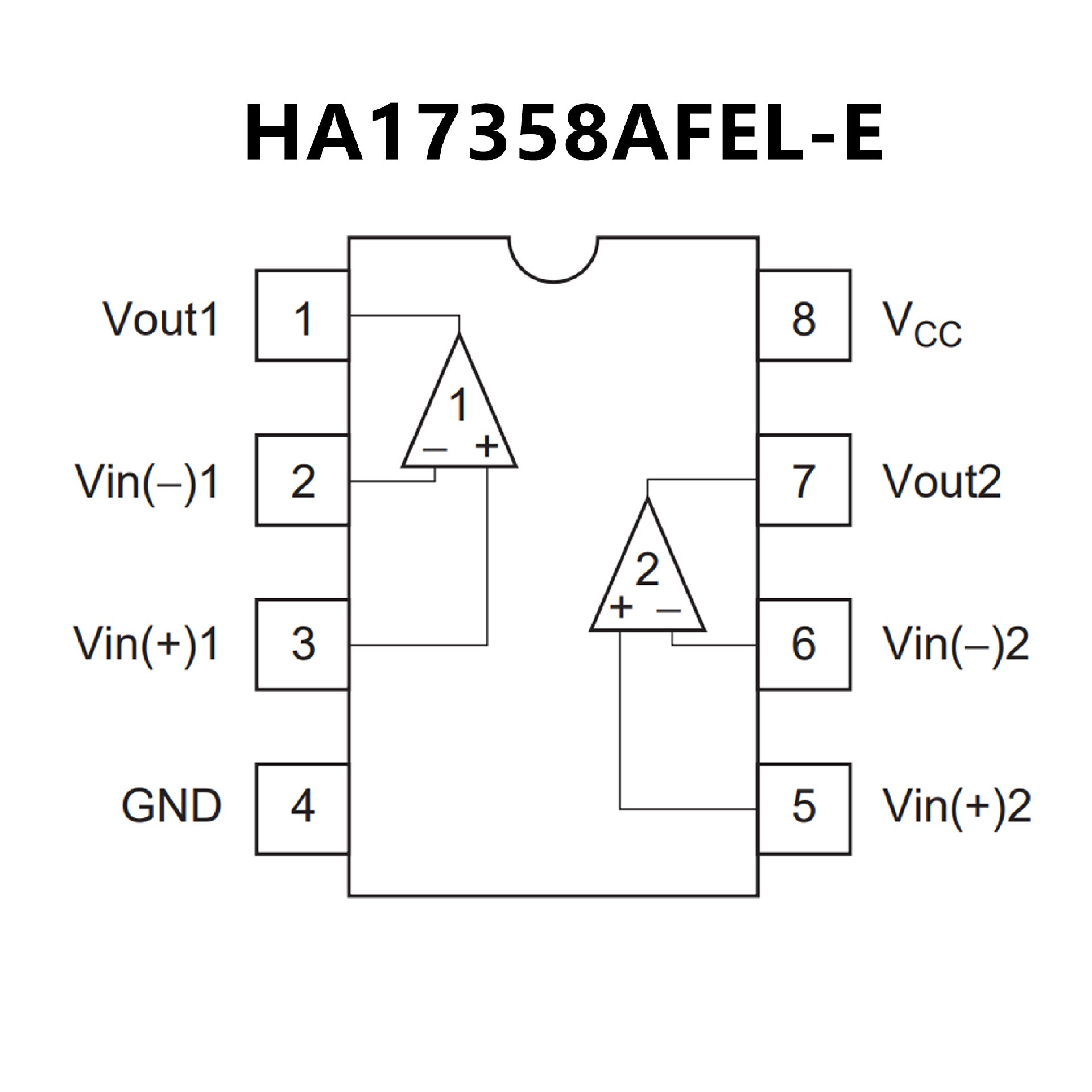

PIN CONFIGUTION
