Low Noise, Precision, High Voltage,Rail-to-Rail I/O Operational Amplifier,SGM8270-2XS8GTR Replace MC33172DG.
SGM8270-2
SGM8270-2.pdf
SGM8270-2.pdfFEATURES
• Wide Input Common Mode and
DifferentialVoltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 2.8mV (MAX)
• Low Noise: 15nV/Hz at 1kHz
• Gain-Bandwidth Product: 2.5MHz
• High Slew Rate: 8V/μs
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages

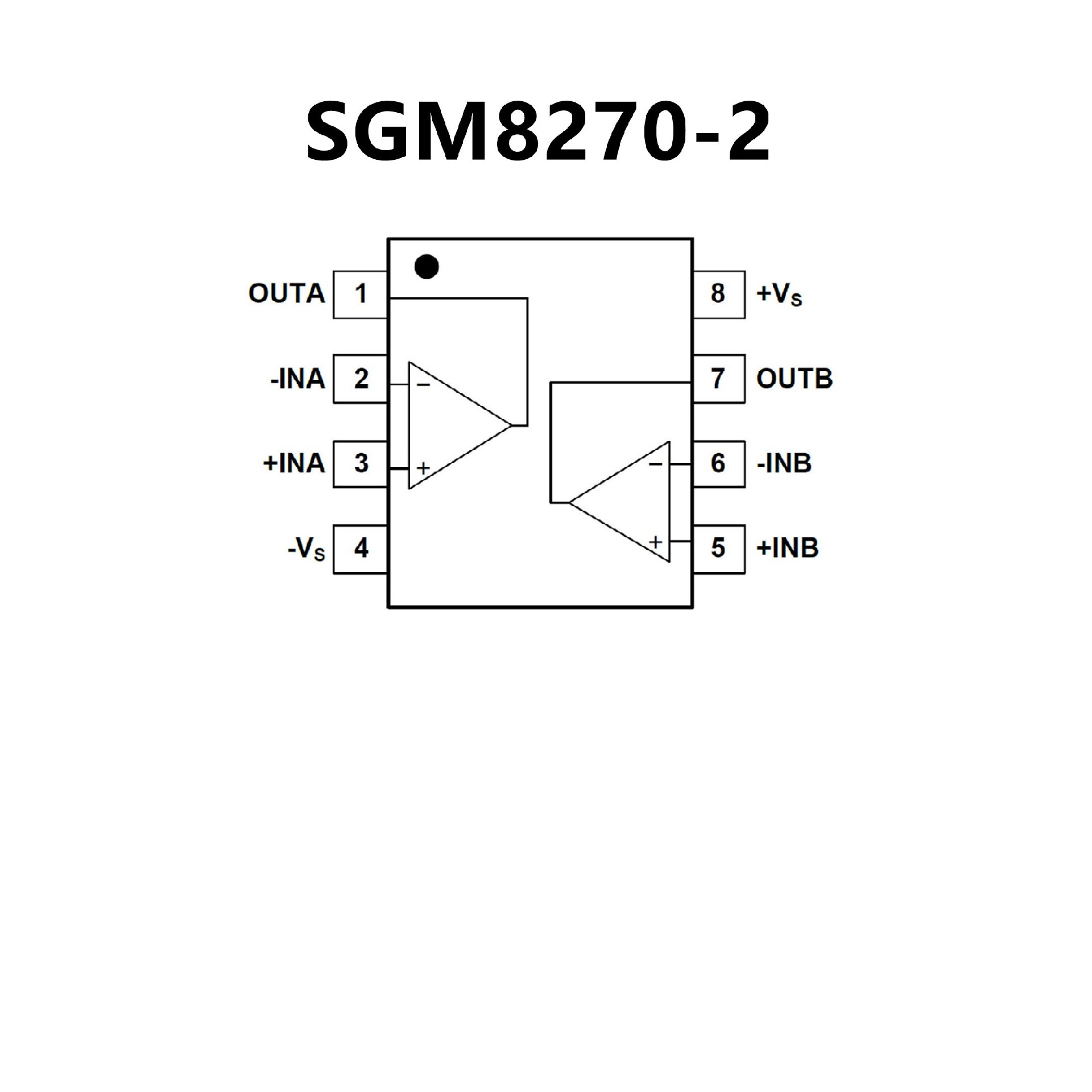

PIN CONFIGUTION
优势替代
FEATURES
• Good consumption/speed ratio: only 200 μA for
2.1 MHz, 2 V/μs
• Single (or dual) supply operation from +4 V to
+44 V (±2 V to ±22V)
• Wide input common mode mode voltage range
including VCC-
• Low level output voltage close to VCC- :
100 mV typical
• Pin-to-pin compatible with standard dual
operational amplifiers

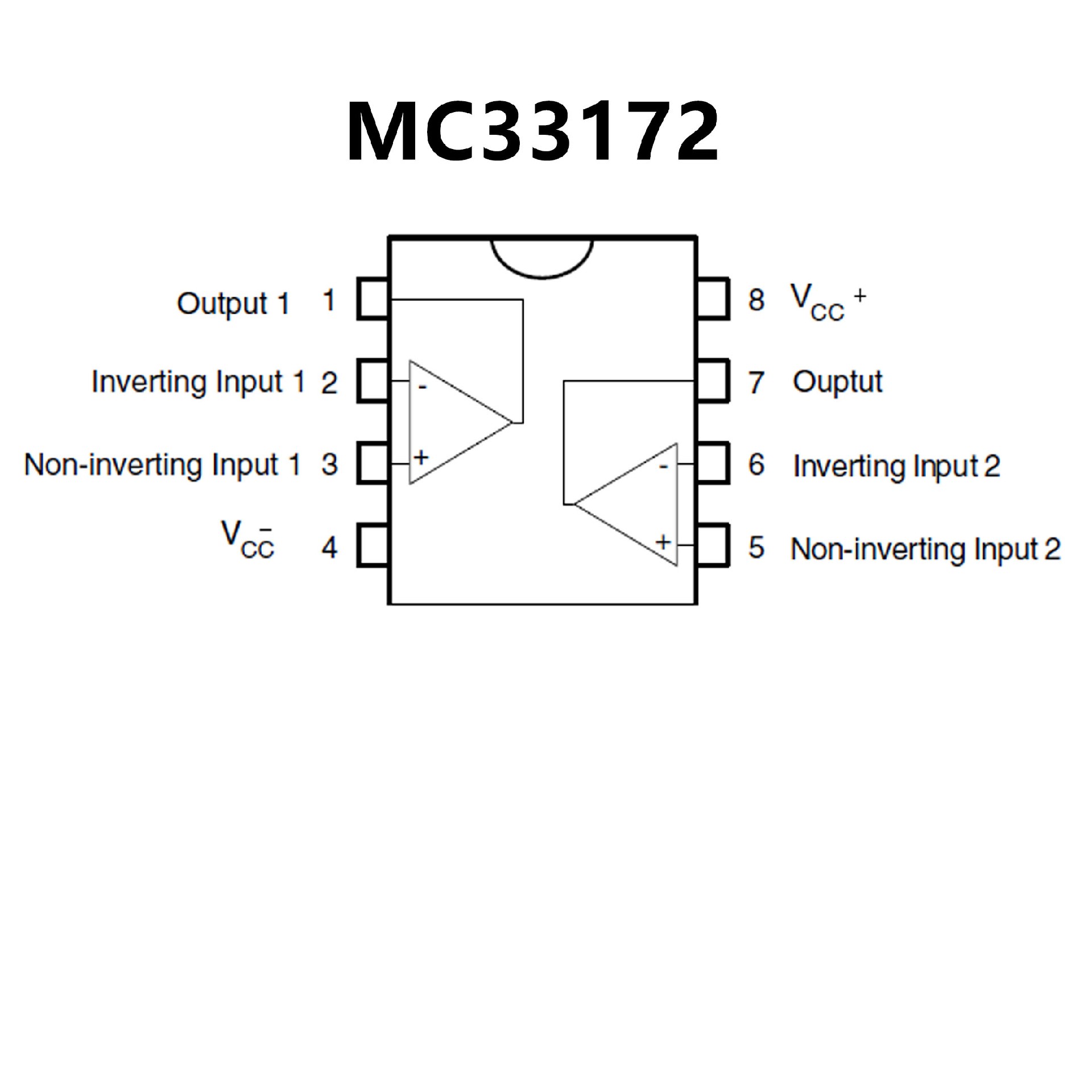

PIN CONFIGUTION
