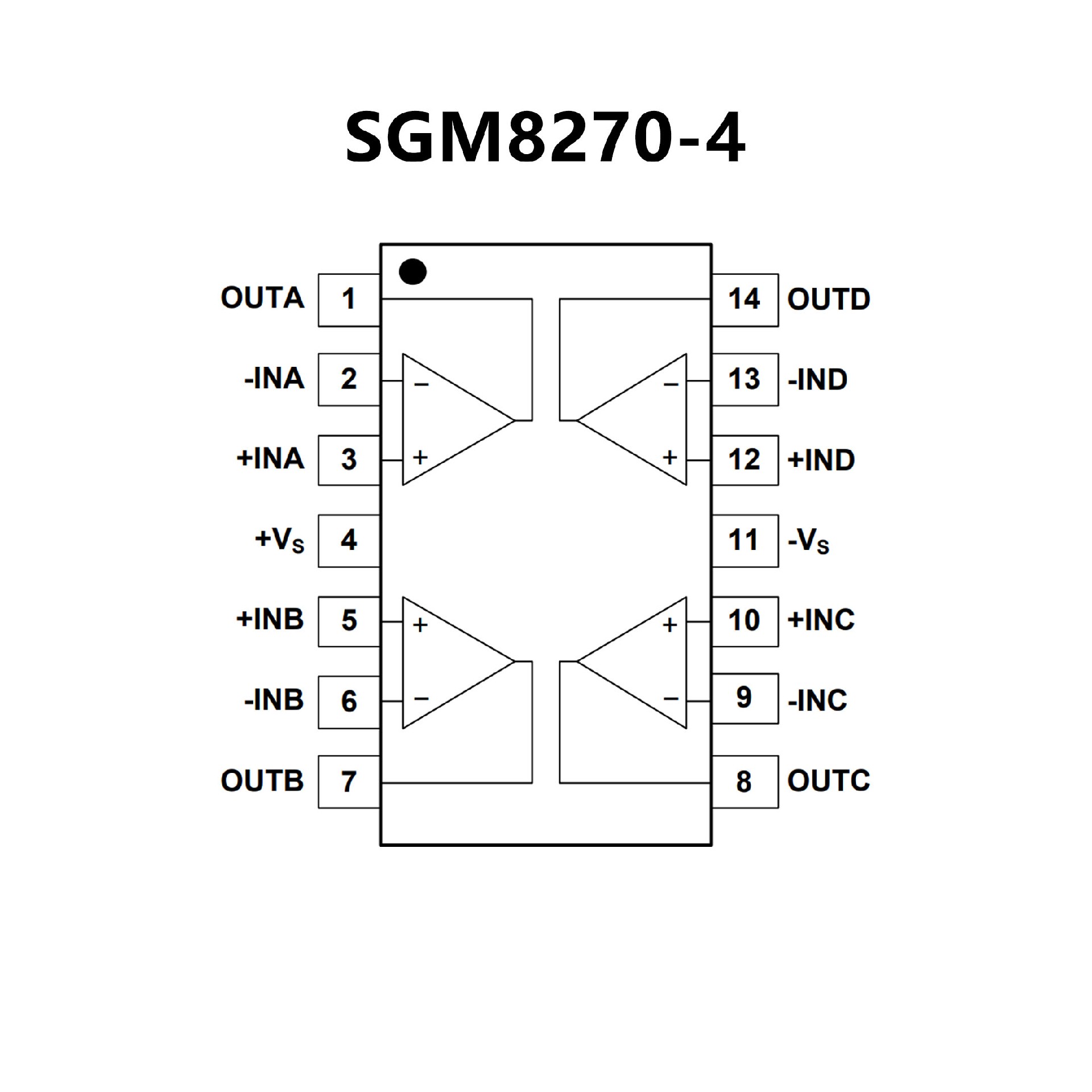

SGM8270-4.pdf• Wide Input Common Mode and
Differential Voltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 1.2mV (MAX)
• Low Noise: 15nV/ Hz at 1kHz
• Gain-Bandwidth Product: 2.2MHz
• High Slew Rate: 8V/µs
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-14 and TSSOP-14 Packages
• Unless Otherwise Noted,
• Typical Values at VS = 5 V

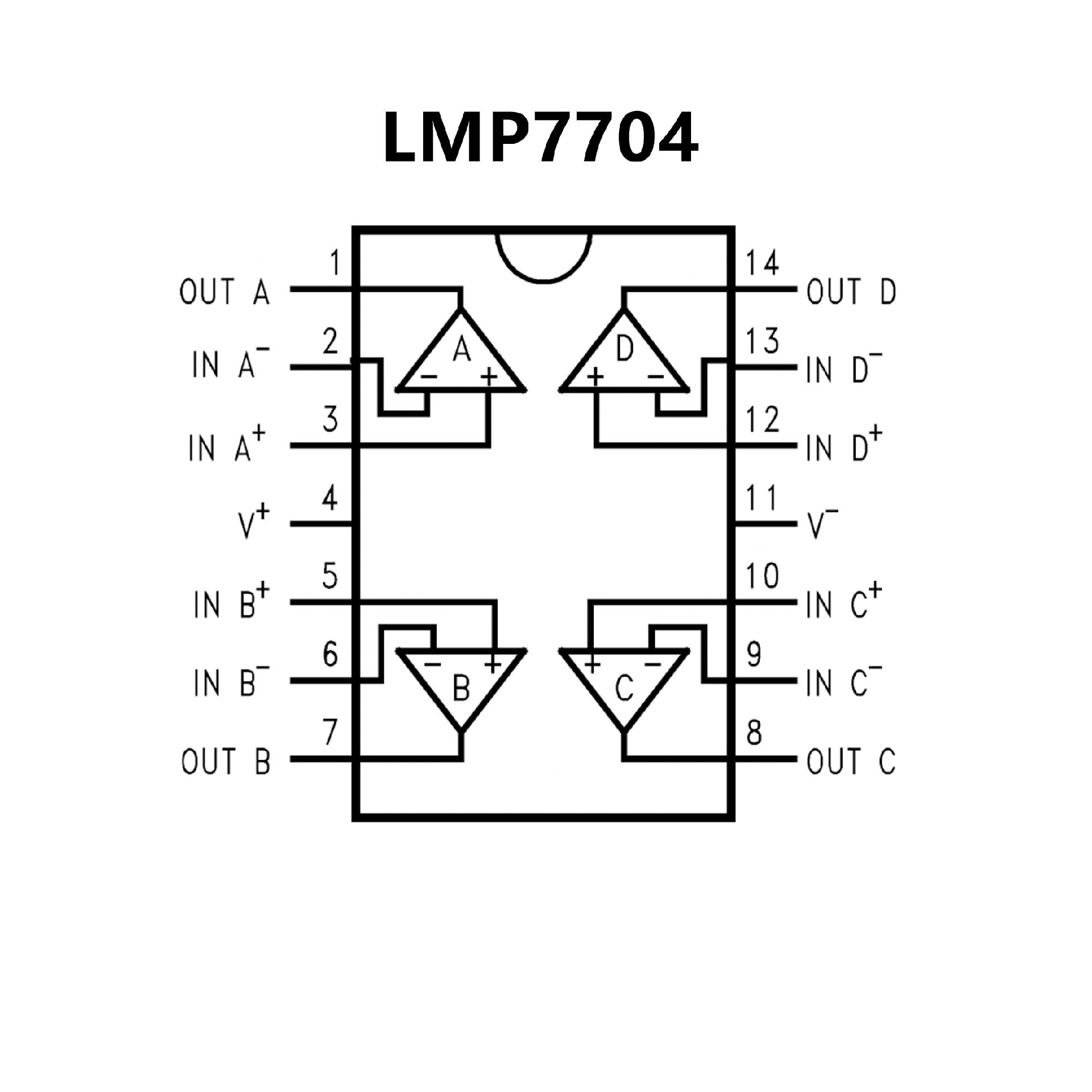

• Input Offset Voltage (LMP7701): ±200-µV
(Maximum)
• Input Offset Voltage (LMP7702/LMP7704):
±220-µV (Maximum)
• Input Bias Current: ±200 fA
• Input Bias Current: ±200 fA
• Input Voltage Noise: 9 nV/√Hz
• CMRR: 130 dB
• Open-Loop Gain: 130 dB
• Temperature Range: −40°C to 125°C
• Unity-Gain Bandwidth: 2.5 MHz
• Supply Current (LMP7701): 715 µA
• Supply Current (LMP7702): 1.5 mA
• Supply Current (LMP7704): 2.9 mA
• Supply Voltage Range: 2.7 V to 12 V
• Rail-to-Rail Input and Output
