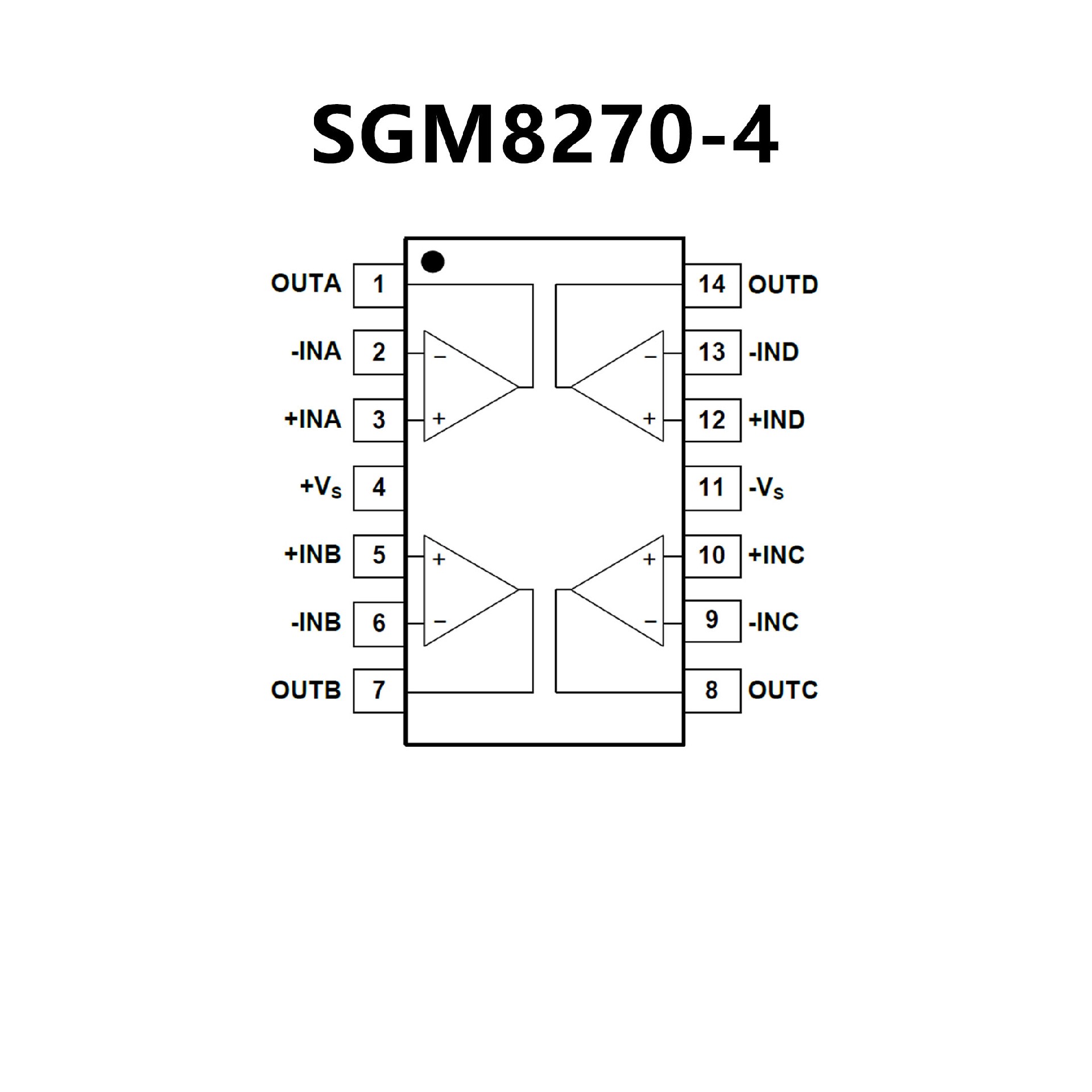

SGM8270-4.pdf• Wide Input Common Mode and
DifferentialVoltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 1.2mV (MAX)
• Low Noise: 15nV/Hz at 1kHz
• Gain-Bandwidth Product: 2.2MHz
• High Slew Rate: 8V/μs
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-14 and TSSOP-14 Packages
• Low Voltage, Single Supply Operation
(+1.8 V and Ground to +12 V and Ground)
• Input Voltage Range Includes both Supply Rails
• Output Voltage Swings within 50 mV of both Rails
• No Phase Reversal on the Output
for Over−driven Input Signals
• High Output Current (ISC = 80 mA, Typ)
• Low Supply Current (ID = 0.9 mA, Typ)
• 600Ω Output Drive Capability
• Extended Operating Temperature Ranges
(−40° to +105°C and −55° to +125°C)
• Typical Gain Bandwidth Product = 2.2 MHz
• NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
